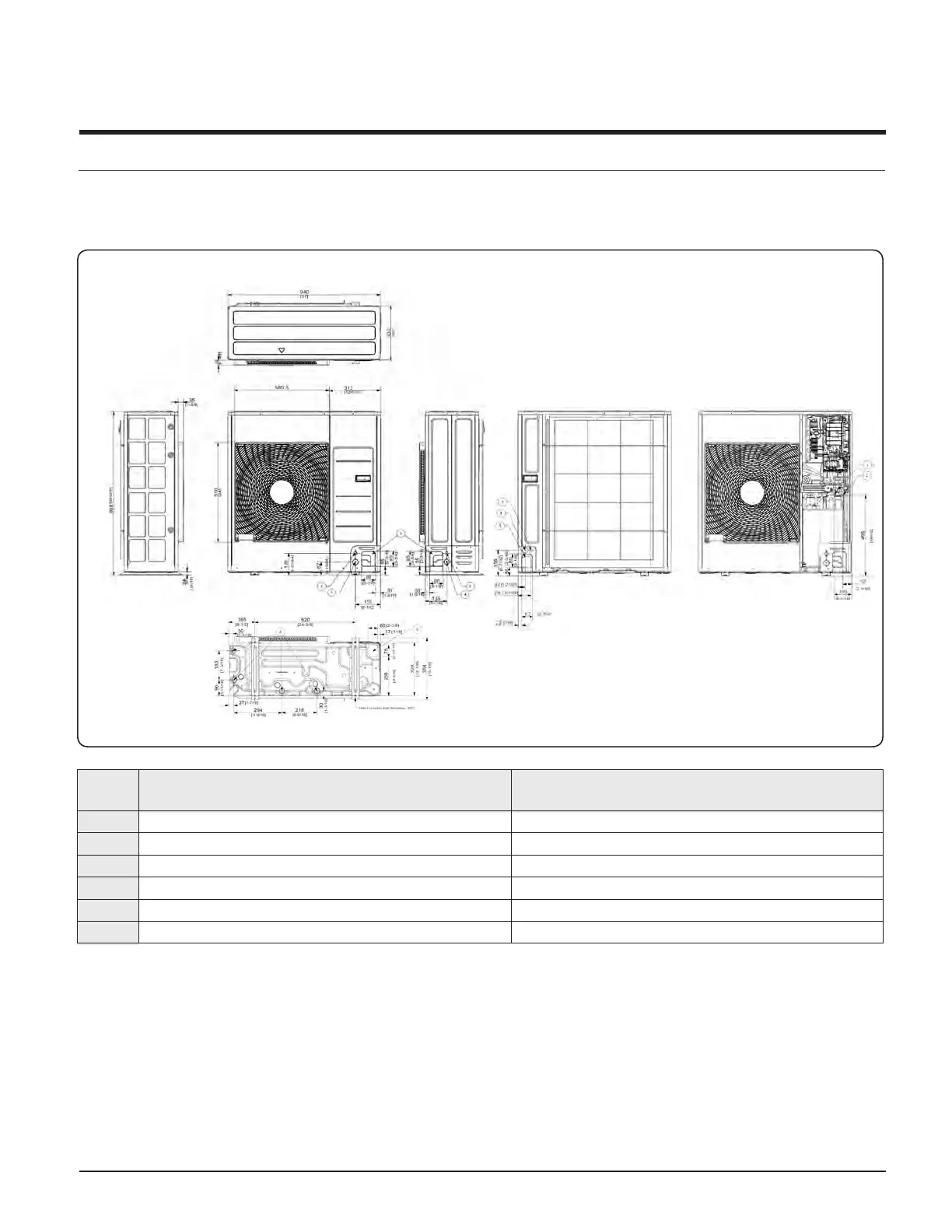

2. Dimensional Drawing
2. Dimensional Drawing
Outdoor Units
CXC30SCB (AC030BXSCCC/AA), CXC36SCB (AC036BXSCCC/AA)
Units : mm [inches]
No. Name Description
1 Refrigerant liquid pipe
2 Refrigerant gas pipe
3 Piping intake knockout hole Front / Side / Rear / Bottom
4 Power wiring conduit
5 Communication wiring conduit
6 Drain Hole
Φ 9.52mm(3/8")
Φ 15.88mm(5/8")
Front / Side / Rear , Φ 34mm(1-3/8")
Front / Side / Rear , Φ 22mm(7/8")
Connect with provided drain plug
[22-7/8]
