6. Electrical Wiring Diagram6. Electrical Wiring Diagram

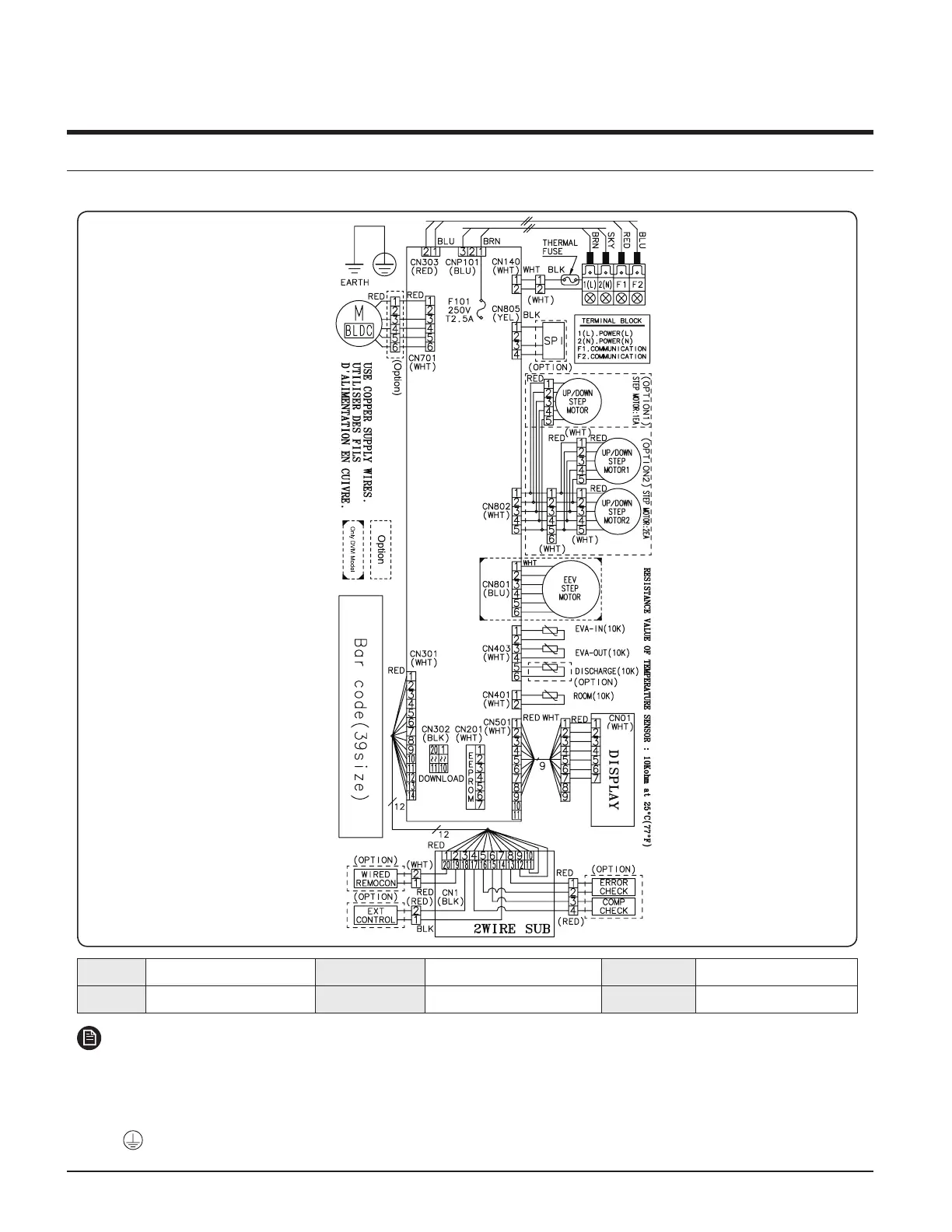

Wall Mounted Type
SPI S-Plasma ion EEV Electronic Expansion Valve ROOM Thermistor ROOM in (10K)
M-BLDC BLDC Motor EVA-IN Thermistor EVA IN(10K) EVA-OUT Thermistor EVA OUT(10K)
NOTE
• This wiring diagram applies only to the Indoor unit.
• Symbols show as follow : blk: black, red: red, blu: blue, wht: white, yel: yellow, brn: brown, sky: skyblue: grn: green
• For connection wiring indoor-outdoor transmission F1-F2, indoor-wired remotecontroller transmission F3-F4.
• Protective earth(screw)
CNH30TDB (AC030BNTDCH/AA), CNH36TDB (AC036BNTDCH/AA)
To Next Page
