Samsung DH40D

To Next Page

To Previous Page

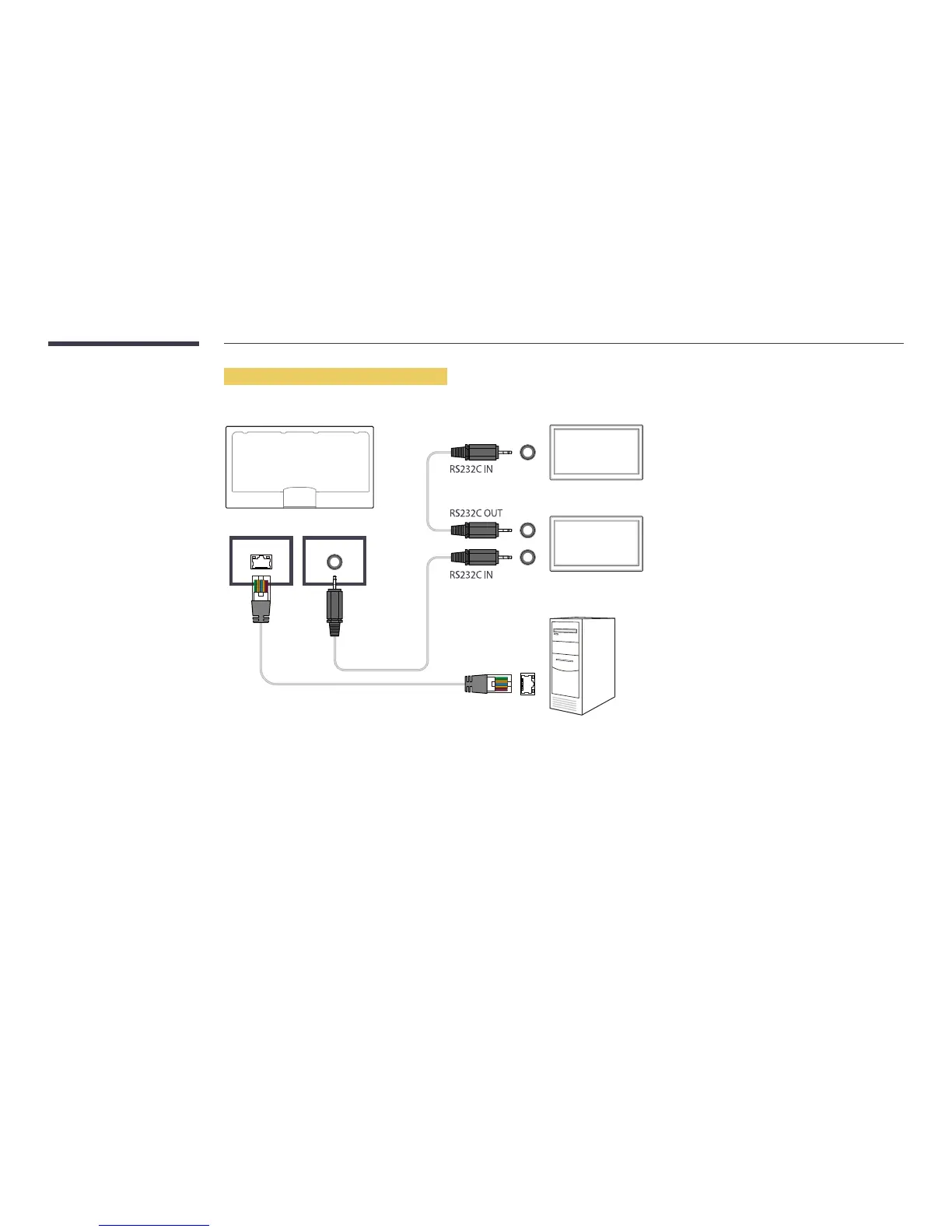

Connection using a cross LAN cable

―

Multiple products can be connected using the RS232C IN / OUT port on the product.

Monitor 1

Monitor 2

Computer

RS232C OUTRJ45

Main Page

Before Using the Product5
Safety Precautions6
Electricity and Safety7
Installation8
Operation10
Checking the Components14
Items Sold Separately15
Panel Key16
Control Panel16
Reverse Side18
Anti-Theft Lock19
Spacer Logo19
Remote Control20
Connection Using an IR Stereo Cable (Sold Separately)22
Tilting Angle and Rotation23
Installation Guide23
Using the COVER-JACK25
Installing the Wall Mount Kit26
Wall Mount Kit Specifications (VESA)26
Remote Control (RS232C)28
Cable Connection28
Lan Cable29
Control Codes32
Volume Control33
Safety Lock37
Connecting and Using a Source Device41
Before Connecting41
Connecting to a Pc41
Connection Using a DVI Cable (Digital Type)42
Connection Using an HDMI-DVI Cable42
Connection Using an HDMI Cable43
Connection Using an DP Cable43
Connecting to a Video Device44
Connection Using the AV Cable44
Connection Using the Component Cable44
Connecting to an Audio System46
Connecting the Antenna46
Connecting the LAN Cable47
Connecting the Network Box (Sold Separately)48
Plug in Module50
Changing the Input Source51
Edit Name51
Using MDC52
MDC Program Installation/Uninstallation52
Connecting to MDC53
Using MDC Via RS-232C (Serial Data Communications Standards)53
Using MDC Via Ethernet54
Home Feature56
Approving a Connected Device from the Server57
Setting the Current Time58
Network Channel59
Local Channel59
Deployed Folders59
Available Features in the Player Page60
Player Page Settings Menu61
When Content Is Running62
Viewing the Details of the Content that Is Running62
File Formats Compatible with Player64
Template Files68
File Formats Compatible with Video Wall69
Available Features in the Schedule Page71
Configuring Channel Schedules72
Editing a Channel Schedule72
Entering Text74
Clone Product76
PC Connection Cable77
Device ID Auto Set77
Video Wall78
Screen Position79
Network Status80
Picture Mode81
On/Off Timer82
Off Timer83
Holiday Management83
More Settings84
URL Launcher85
Screen Adjustment86
Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)87
Color Temperature88
White Balance89
Calibrated Value90
Advanced Settings91
Dynamic Contrast92
Color Space92
Motion Lighting92
Black Tone92
Flesh Tone92
Rgb Only Mode92
Picture Options93
Color Tone94
Digital Clean View94
MPEG Noise Filter94
HDMI Black Level95
Film Mode95
Dynamic Backlight95
Picture Size96
Auto Adjustment99
PC Screen Adjustment99
Picture off100
Reset Picture100
On-Screen Display101
PIP Settings101
Main Picture101
Rotate Menu103
Aspect Ratio103
Auto Protection Time104
Screen Burn Protection104
Screen Protection104
Pixel Shift104
Message Display106
Immediate Display106
No Signal Message106
Menu Transparency107
Menu Language107
Caption Mode108
Digital Caption Options109
Reset Onscreen Display110
Sound Adjustment111
Sound Mode111
Sound Effect112
Virtual Surround112
Dialog Clarity112
HDMI Sound113
Sound on Video Call113
Speaker Settings114
Auto Volume114
Reset Sound115
Auto Program116
Channel List118
Edit Channel119
Edit Favorites121
Audio Options124
Preferred Language124
Multi-Track Sound124
Program Rating Lock125
Channel Settings127
Clear Scrambled Channel127
Network Status128
Network Settings128
Network Type128
Connecting to a Wired Network129
Automatic Network Settings (Wired)130
Manual Network Settings (Wired)130
Connecting to a Wireless Network131
Multimedia Device Settings134
Screen Mirroring135
Server Network Settings135
Magicinfo Mode135
Connect to Server135
Server Access135
Device Name136
Initial Settings (Setup)137
Touch Control139
Admin Menu Lock139
Time Offset141
Sleep Timer142
Power on Delay142
Auto Source Switching143
Primary Source Recovery143
Secondary Source143
Power Control144
Pc Module Power144
Standby Control145
Power Button145
Network Standby145
Eco Solution146
Energy Saving146
Eco Sensor146
No Signal Power off147
Auto Power off147
Temperature Control147
Device Manager148
Keyboard Settings148
Mouse Settings149
Pointer Settings150
Change PIN151
Button Lock152
Anynet+ (HDMI-CEC)153
Auto Turn off154
Troubleshooting for Anynet155
HDMI Hot Plug157
DIVX® Video on Demand157
Game Mode157
Reset System158
Software Update159
Contact Samsung159
Auto Update159
Clone Product160
Network Status161
Reset All162
Playing Photos, Videos and Music (Media Play)163
Read the Following before Using Media Play with a USB Device163
Compatible Devices with Media Play164
Using a Usb Device165
Connecting a Usb Device165
Features Provided in the Media Content List Page167
Menu Items in the Media Content List Page168
Available Buttons and Features During Photo Playback169
Available Buttons and Features During Video Playback170
Available Buttons and Features During Music Playback171
Supported Subtitle and Media Play File Formats172
Supported Image Resolutions172
Supported Music File Formats173
Supported Video Formats173
Video Decoder173
Troubleshooting Guide175
Requirements before Contacting Samsung Customer Service Center175
Testing the Product175
Checking the Resolution and Frequency175
Check the Followings176
Specifications185
Power Saving Mode187
Power off187
Preset Timing Modes188
Responsibility for the Pay Service (Cost to Customers)190
Not a Product Defect190
A Product Damage Caused by Customer's Fault190
Optimum Picture Quality191
Prevention of Afterimage Burn-In191
Flight : Time192
