Samsung HT-D6500 - Speaker Components

18 English
Connections
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
VIDEO OUT
SURROUND
SUBWOOFER
CENTER FRONT
SURROUND
ONENT OUT
VIDEO OUT
NT OUT
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
SURROUND
SUBWOOFER
CENTER FRONT
SURROUND
Centre Speaker
Front Speaker (R)
Subwoofer
Surround Speaker (R)
Front Speaker (L)

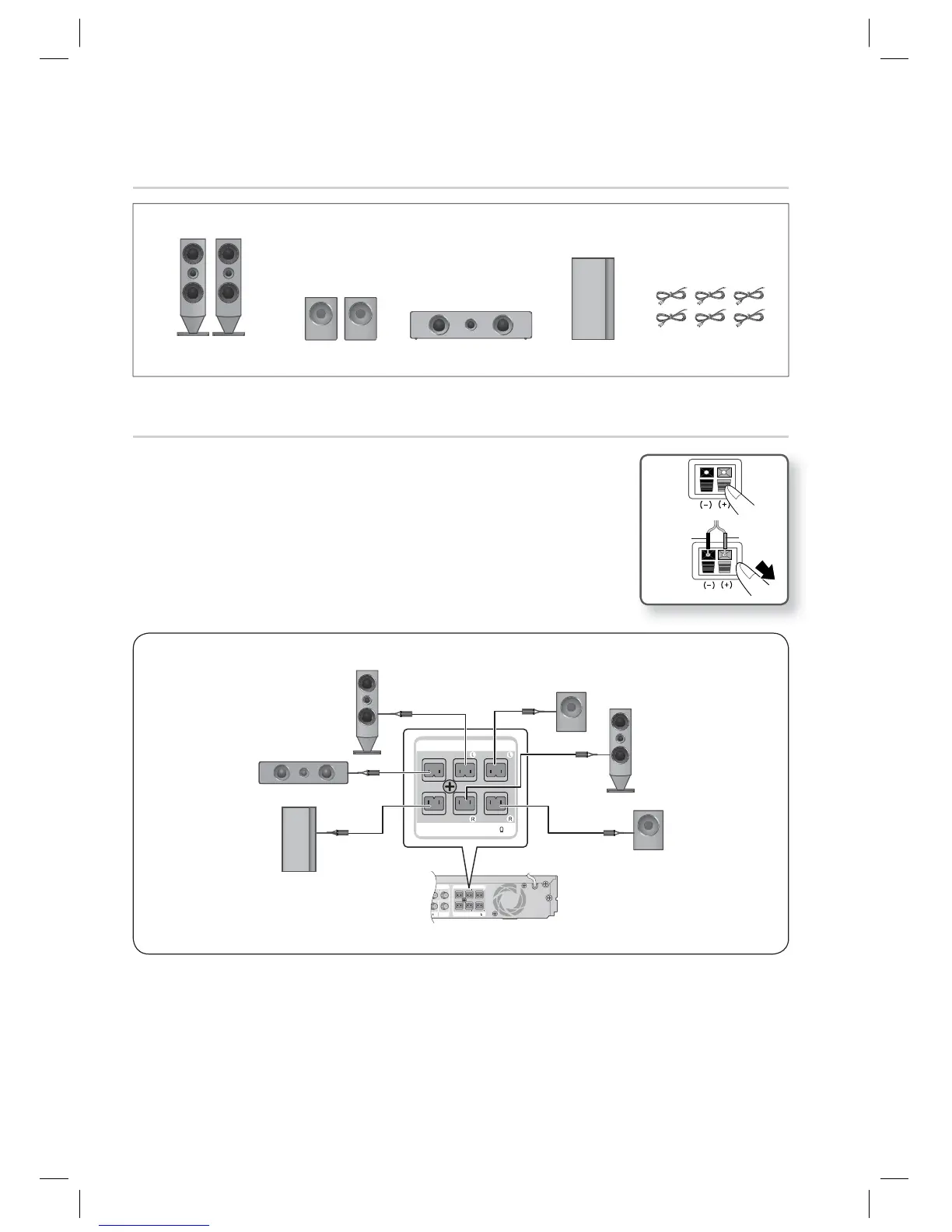

Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.
1.
2.
3.
Black
Red
Surround Speaker (L)
Speaker Components
FRONT SURROUND
CENTRE
SUBWOOFER
SPEAKER CABLE
(L)
(L) (R)
(R)
