Samsung HT-D6500 - Connecting the Optional Wireless Receiver Module

English 19
02 Connections

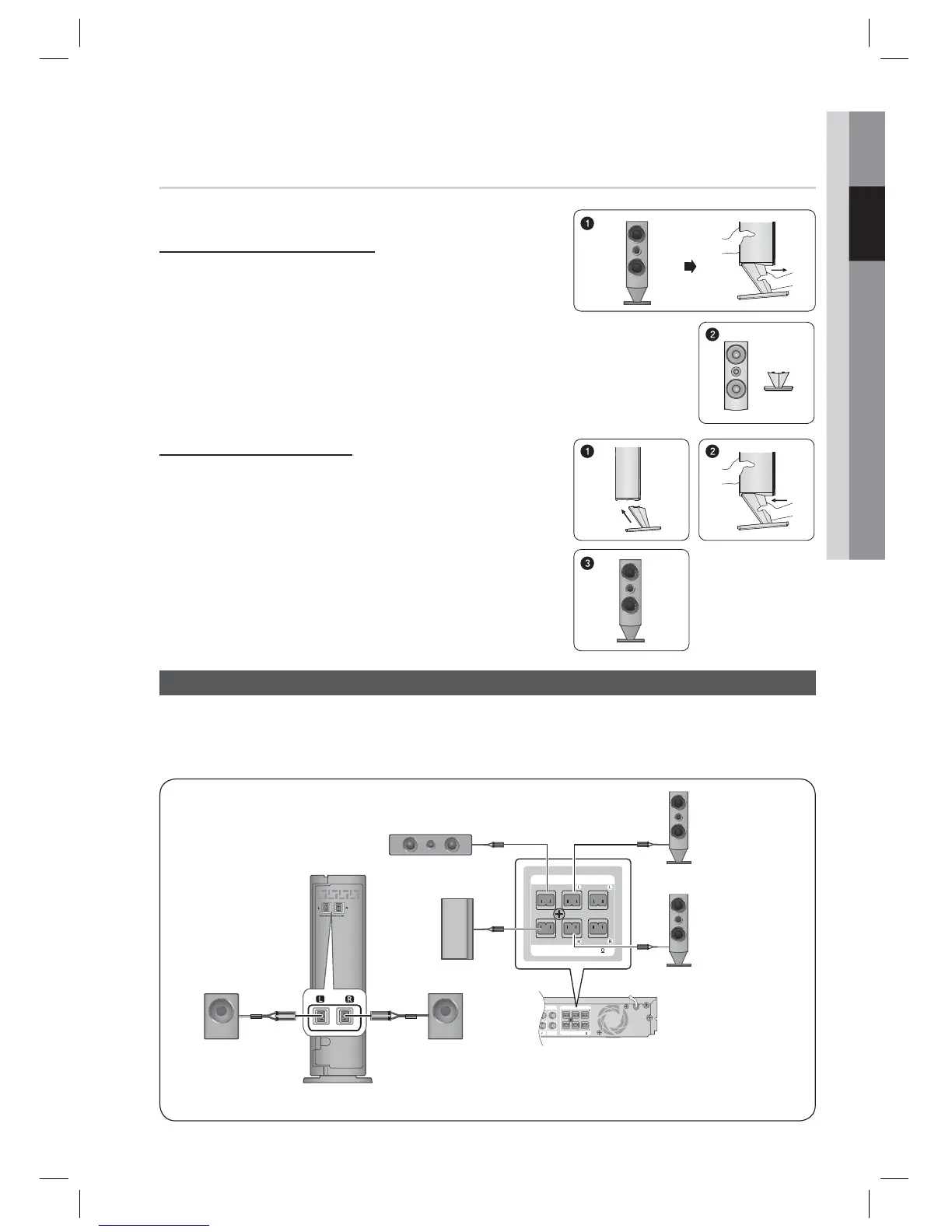

Connecting the Optional Wireless Receiver Module
To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and
TX card from your Samsung retailer.
This product should be connected with the SWA-5000 only. •
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
VIDEO OUT
SURROUND
SUBWOOFER
CENTER FRONT
SURROUND
ONENT OUT
VIDEO OUT
NT OUT
FRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
SURROUND
SUBWOOFER
CENTER FRONT
SURROUND
Front Speaker (R)
Subwoofer
Centre Speaker
Wireless Receiver Module
Surround
Speaker (L)
Front Speaker (L)
Surround
Speaker (R)
How to install the speaker
Connect the stand in the arrow direction so that it fi ts the
corresponding holes (x4) on the speaker.
Fully insert the stand in the arrow direction as shown.
This is the appearance after the speaker unit is installed.
1.
2.
3.
Removing/Installing the speaker on the stand
* Front Speakers only
How to remove the speaker
If you attach the speaker on the wall, remove the stand
before using it.
Pull out the stand in the arrow direction as shown.
Be careful not to put excessive force when removing it.
Otherwise, it can be damaged.
This is the appearance after the stand is removed.
1.
•
2.
