Samsung HT-D7200 - Connecting the Speakers; Connecting the FM Antenna

22 English
Connections

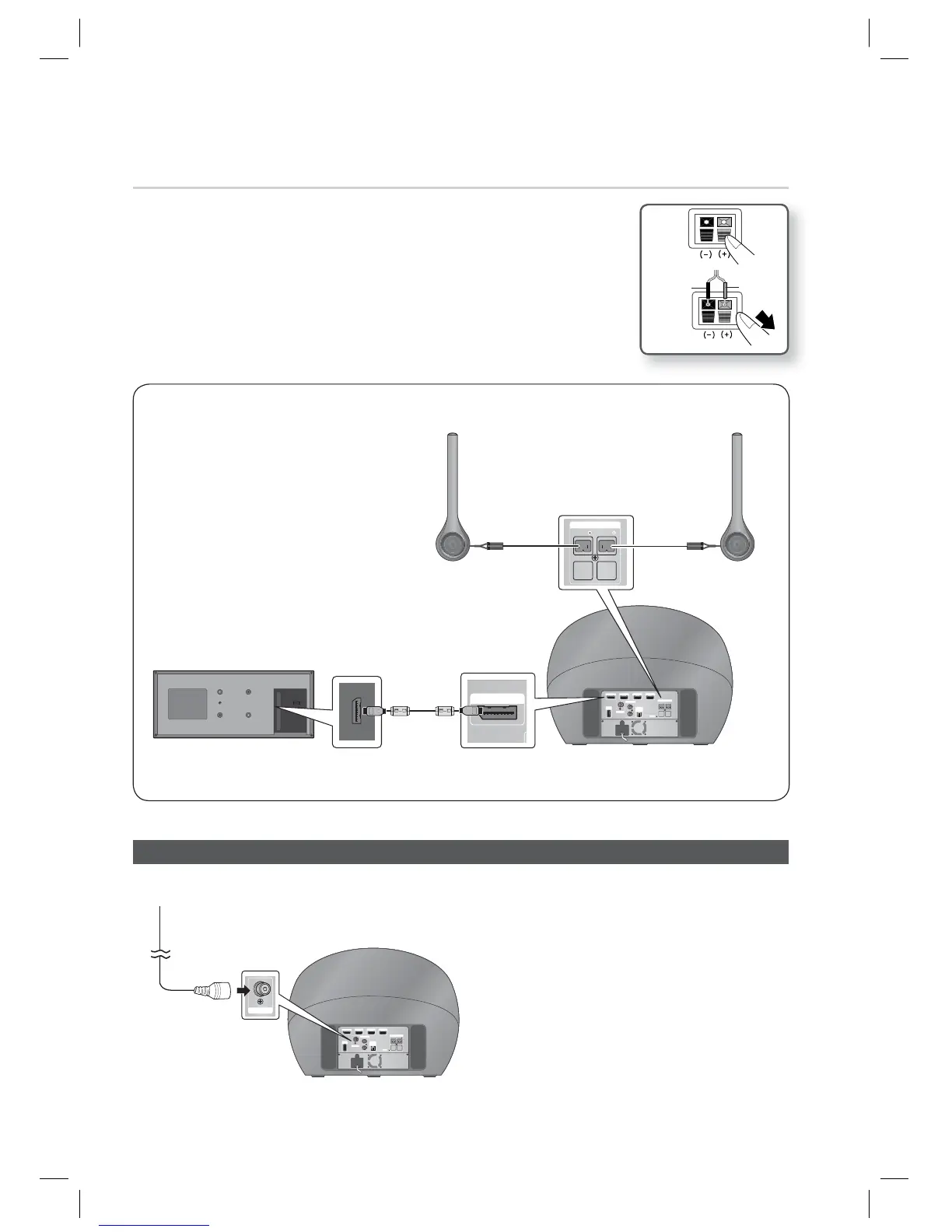

Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.
1.
2.
3.
SYSTEM CABLE
FM ANT
AUX IN
DIGITAL
AUDIO IN
(OPTICAL)
ONLY FOR
UPDATE
HDMI OUT HDMI IN 1
HDMI IN 2
SPEAKERS OUT
FRONTFRONT
DC 12V iPod
SYSTEM
CABLE
LAN
SPEAKERS OUT
FRONTFRONT
SYSTEM CABLE
SPEAKER IMPEDANCE : 3
Front Speaker (R)
Subwoofer
Black
Red
Connecting the FM Antenna
Connect the FM antenna supplied to the FM
ANTENNA Jack.
Slowly move the antenna wire around until
you fi nd a location where reception is good,
then fasten it to a wall or other rigid surface.
NOTE
This product does not receive AM
broadcasts.
1.
2.
✎

SYSTEM CABLE
FM ANT
AUX IN
DIGITAL
AUDIO IN
(OPTICAL)
ONLY FOR
UPDATE
HDMI OUT HDMI IN 1
HDMI IN 2
SPEAKERS OUT
FRONTFRONT
FM ANT
SPEAKER IMPEDANCE : 3
FM Antenna (supplied)
Front Speaker (L)
