03 Connections

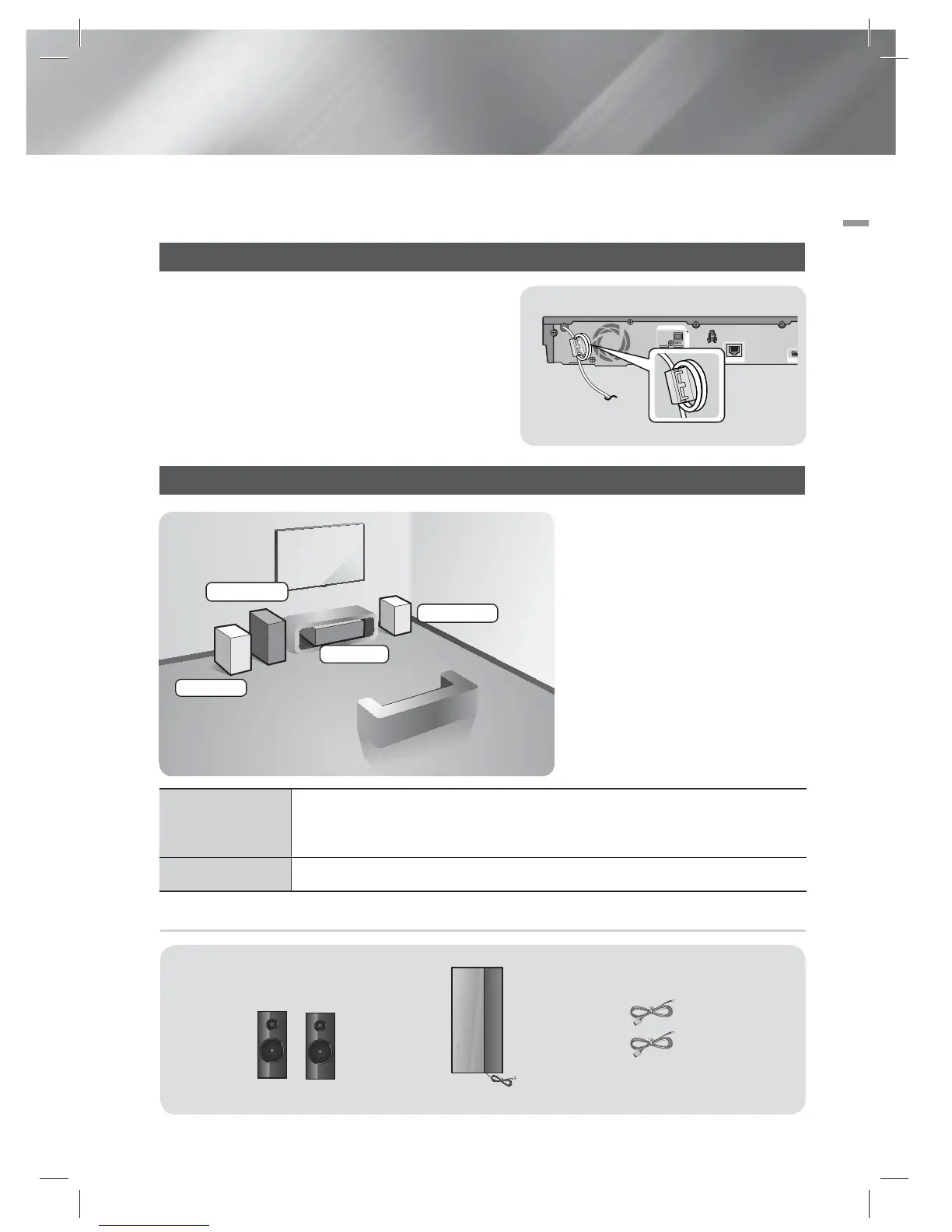

Connections
This section describes various methods of connecting the product to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit
If you attach a Toroidal ferrite core to the power cord of
the main unit, it will help to prevent RF interference from
radio signals.
1. Pull the fixing tab of the Toroidal ferrite core to open
it.
2. Make a loop twice in the main unit power cord.
3.
Attach the Toroidal ferrite core to the main unit power
cord as the figure shows and press it until it clicks.
Connecting the Speakers
LANiPod
IMPEDANCE : 3
SPEAKERS OUT
HDM
Front Speakers
Place these speakers in front of your listening position, facing inwards (about 45°)
toward you. Place the front speakers so that their tweeters will be at the same
height as your ear.
Subwoofer
The position of the subwoofer is not so critical. Place it anywhere you like.
Position of the product
Place it on a stand or cabinet shelf, or
under the TV stand.
Selecting the Listening Position
The listening position should be
located about 2.5 to 3 times the
distance of the TV's screen size
away from the TV. For example, if
you have a 46 inch screen, locate
the listening position 2.92 to 3.50
meters from the screen.
Front (L)
Front (R)
Product
Subwoofer
Speaker Components
SUBWOOFER SPEAKER CABLEFRONT
(L) (R)
