18 English
Connections
Connecting to a TV
Select either Method 1 or Method 2.
• If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control,
and then select the correct external source from the TV's source list (HDMI, Video In, etc.) to view video from the home
cinema.
HDMI IN
VIDEO IN
OPTICAL
VIDEO
OUT
AUX
IN
DIGITAL
AUDIO IN
FM ANT
HDMI IN
1
2
HDMI OUT
LANiPod
IMPEDANCE : 3
SPEAKERS OUT
OPTICAL
VIDEO
OUT
AUX
IN
DIGITAL
AUDIO IN
FM ANT
HDMI IN
1
2
HDMI OUT
Method 1
Method 2
(Cable not supplied.)

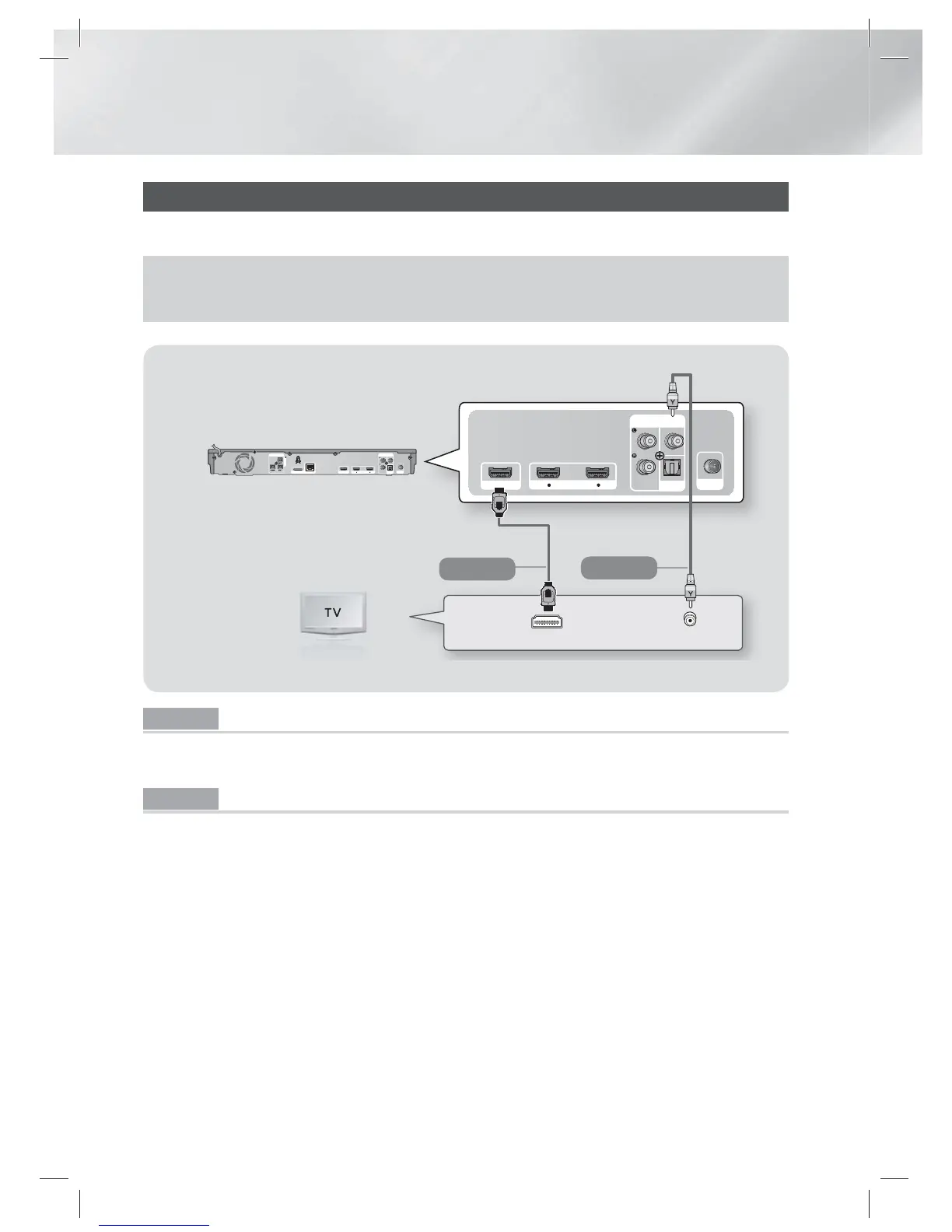

Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended)
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN
jack on your TV.
Method 2 Connecting to a TV with a Video Cable - Good Quality
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN
jack on your TV.
| NOTE |

The VIDEO Out jack always outputs in the 576i/480i resolution regardless of the resolution set in the Setup menu.

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and
the picture will be distorted on the television.
