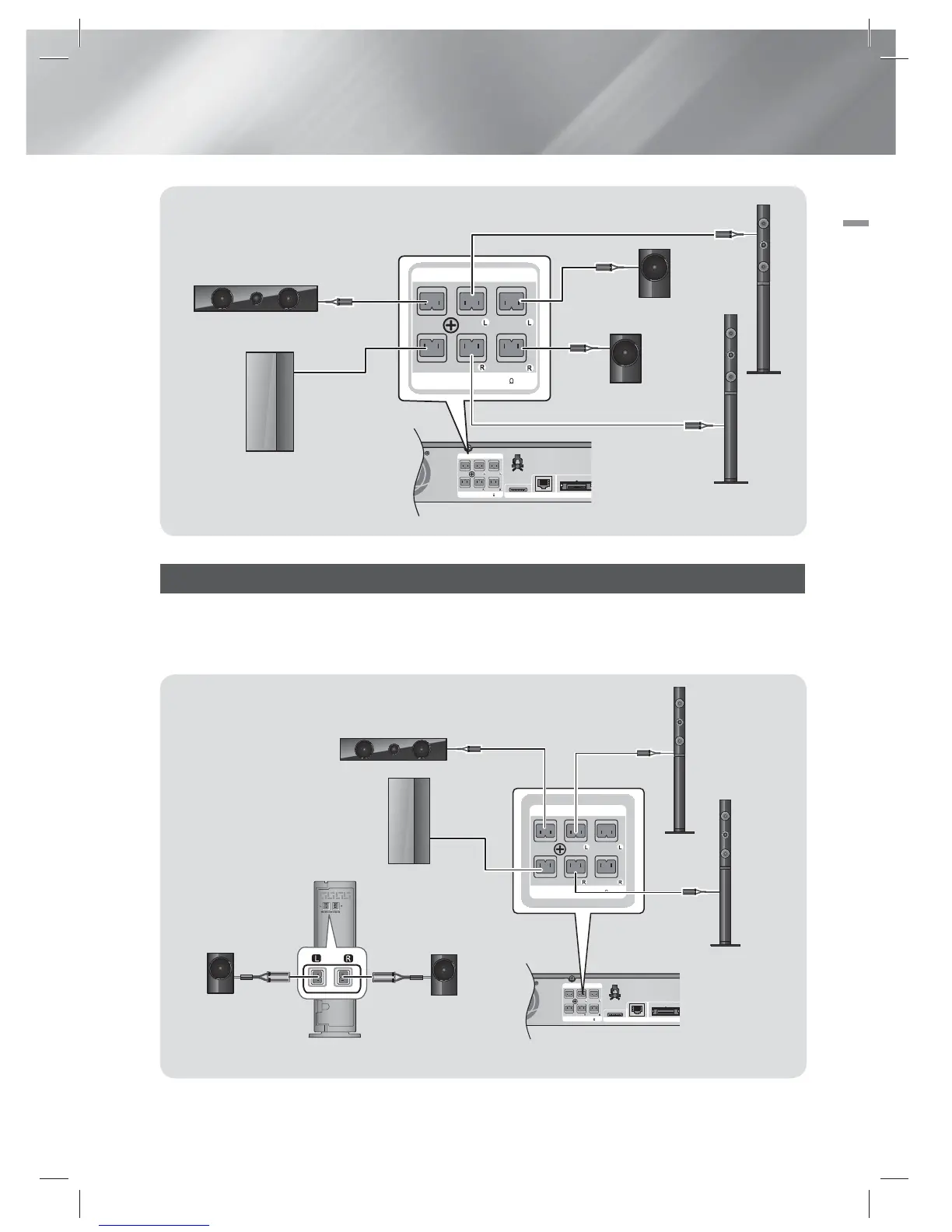

Connecting the Optional Wireless Receiver Module
To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX
card from your Samsung retailer.
• This product should be connected with the SWA-5000 only.
LANiPod WIRELESS
FRONT
SURROUND
SPEAKERS OUT
SUBWOOFER
CENTER FRONT
SURROUND
SPEAKER IMPEDANCE : 3
FRONT SURROUND
SPEAKERS OUT
SUBWOOFER
CENTER FRONT
SURROUND
SPEAKER IMPEDANCE : 3
Front Speaker (R)
Subwoofer
Center Speaker
Wireless Receiver Module
Surround
Speaker (L)
Front
Speaker (L)
Surround
Speaker (R)
