Samsung HT-E6750W - Speaker Components; Installing the Speakers on the Tallboy Stand

|
16 English
Connections

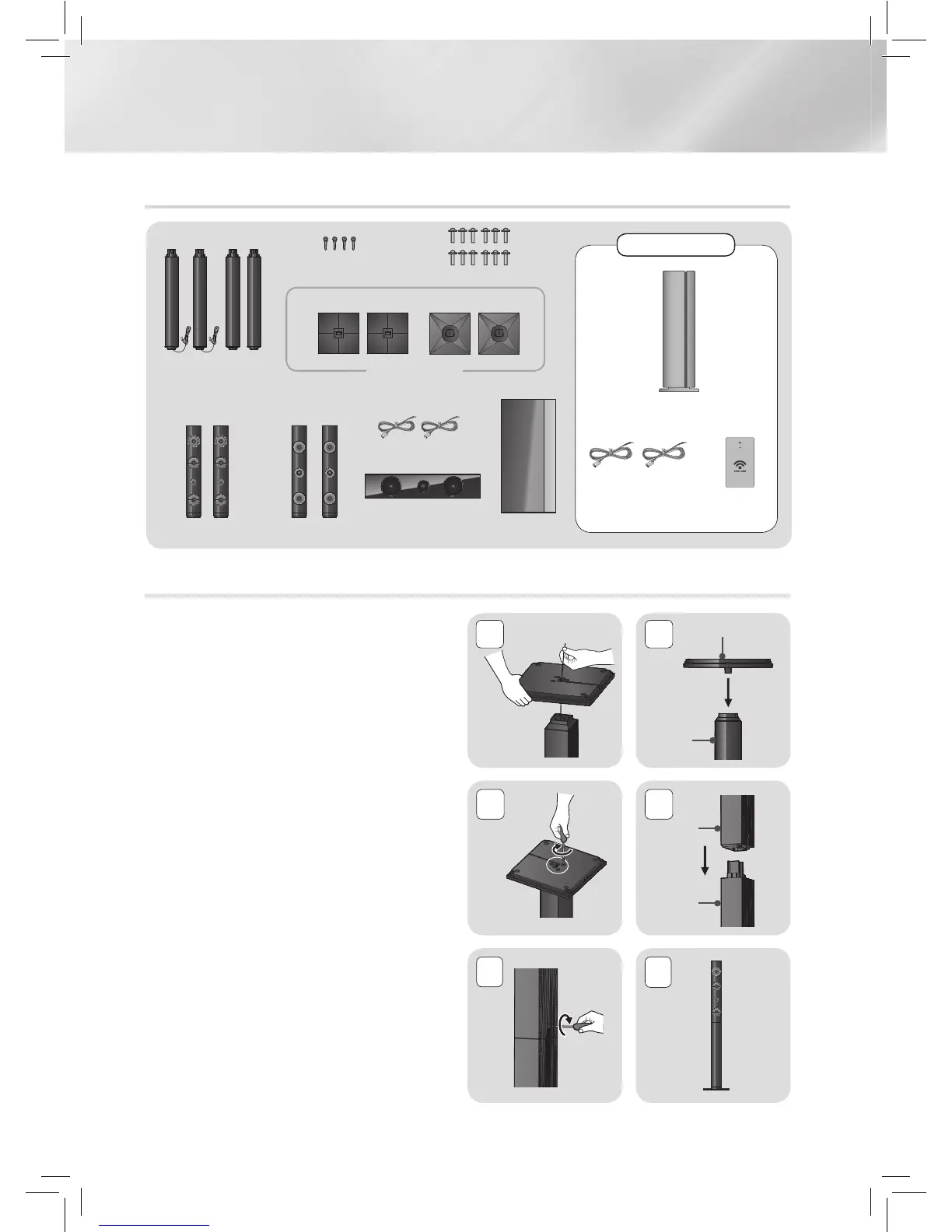

Speaker Components
Installing the Speakers on the Tallboy Stand
1. Straighten the speaker cable and put it into
the hole on the Stand Base .
2. Turn the Stand Base upside-down and
connect it to the Stand.
3. Use the driver to combine the screws (5x20)
on the 3 marked holes.
4. Connect the upper Speaker to the assembled
Stand.
5. Insert a screw (5x15) clockwise into the
hole on the rear of the speaker using a
screwdriver.
6. This is the appearance after the speaker is
installed.
Follow this steps to install other speaker.
5
2
4
6
1
3
Stand Base
Stand
Speaker
Stand
SURROUND
CeNteR
SUBWOOFeR
SWA-5000
Wireless Receiver Module
TX Card
Speaker
Cable (2EA)
FRONt/FRONt tOP
StAND
SCReW (5x20): 12eA
SCReW (5x15): 4eA
(L) (R) (L) (R)
SURROUNDFRONt/FRONt tOP
StAND BASe
SPeAKeR CABLe
