English 19
|
03 Connections

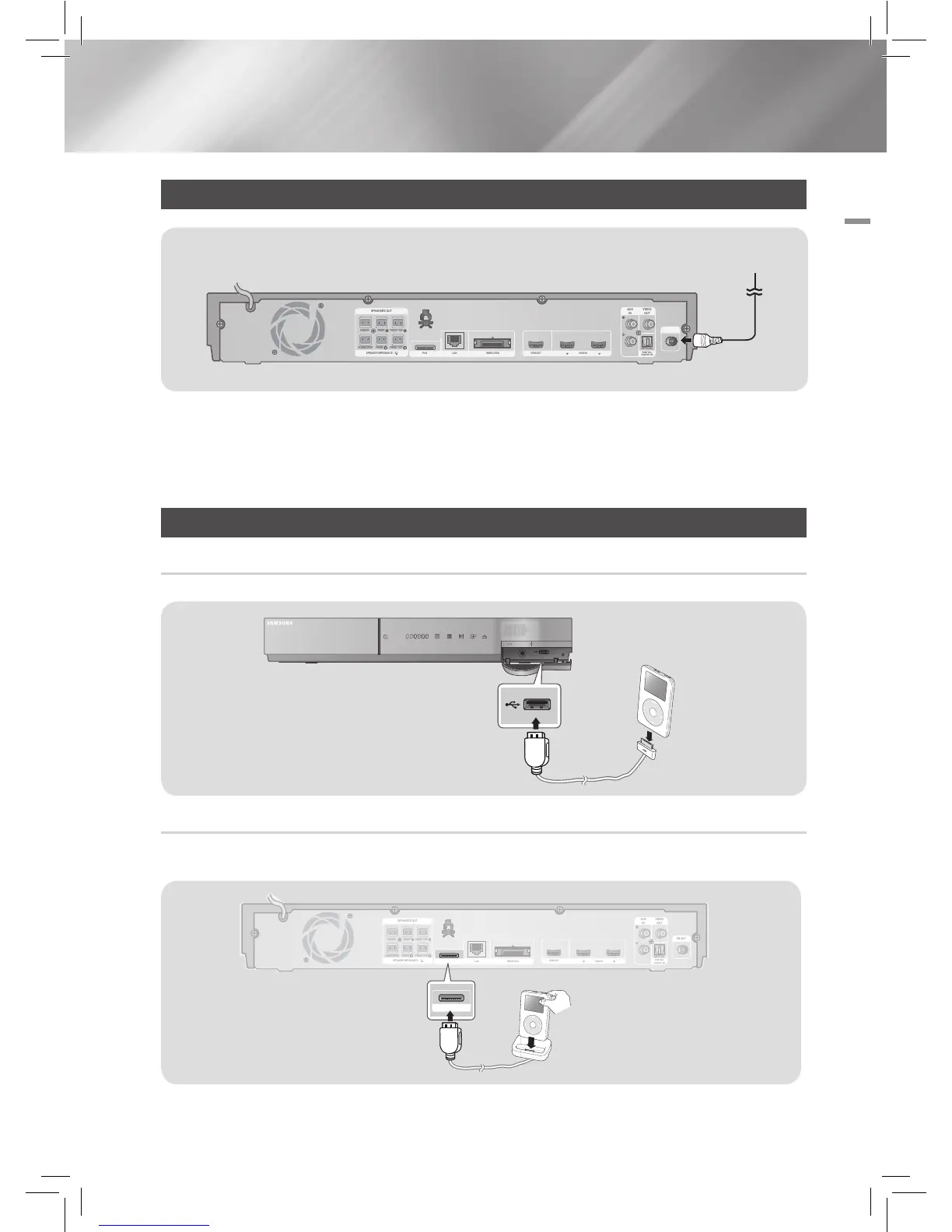

Connecting the FM Antenna
FRONT
FRONT TOP
SPEAKERS OUT
SUBWOOFER
CENTER FRONT
FRONT TOP
SPEAKER IMPEDANCE : 3
DIGITAL
AUDIO IN
OPTICAL
VIDEO
OUT
AUX
IN
LANiPod WIRELESS
HDMI IN
2
1
HDMI OUT
FM ANT
FM Antenna (supplied)
1 . Connect the FM antenna supplied to the FM ANTENNA Jack.
2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
| NOTE |
\
This product does not receive AM broadcasts.
Connecting to an iPod/iPhone
Using a USB Cable
Connect an iPod/iPhone using the USB cable to the front USB port.
5V 500mA
ASC IN
5V 500mA
Using a Dock
To view a video from your iPod on your TV, you must also connect the Video Out jack on the product to
the Video In jack on your TV. See page 20.
FRONT
FRONT TOP
SPEAKERS OUT
SUBWOOFER
CENTER FRONT
FRONT TOP
SPEAKER IMPEDANCE : 3
DIGITAL
AUDIO IN
OPTICAL
FM ANT
VIDEO
OUT
AUX
IN
LANiPod WIRELESS
HDMI IN
2
1
HDMI OUT
iPod
| NOTE |
\
Make sure to connect the dock connector so that the label “

” faces upward.
