Samsung HT-E8200 - Attaching the Toroidal Ferrite Core to the Power Cord; Connecting the FM Antenna; Installing the Cradle Stand

|
16 English
Connections
Connecting the FM Antenna
1 . Connect the FM antenna supplied to
the FM ANT Jack.
2 . Slowly move the antenna wire
around until you find a location where
reception is good, then fasten it to a
wall or other rigid surface.
|
NOTE |

This product does not receive AM broadcasts.
Installing the Cradle Stand
1 . Put the 3 bumps on the product into
the three holes on the cradle stand.
2 . Put the supplied a screw in the
product and rotate them clockwise
with screw driver.
HDMI OUT
HDMI IN 1 HDMI IN 2
LAN
VIDEO OUT
OPTICAL IN
FM ANT
HDMI OUT
HDM
HDMI IN 2
LAN
VIDEO
OPTICAL IN
FM ANT
FM Antenna
(supplied)
Screw
3 bumps

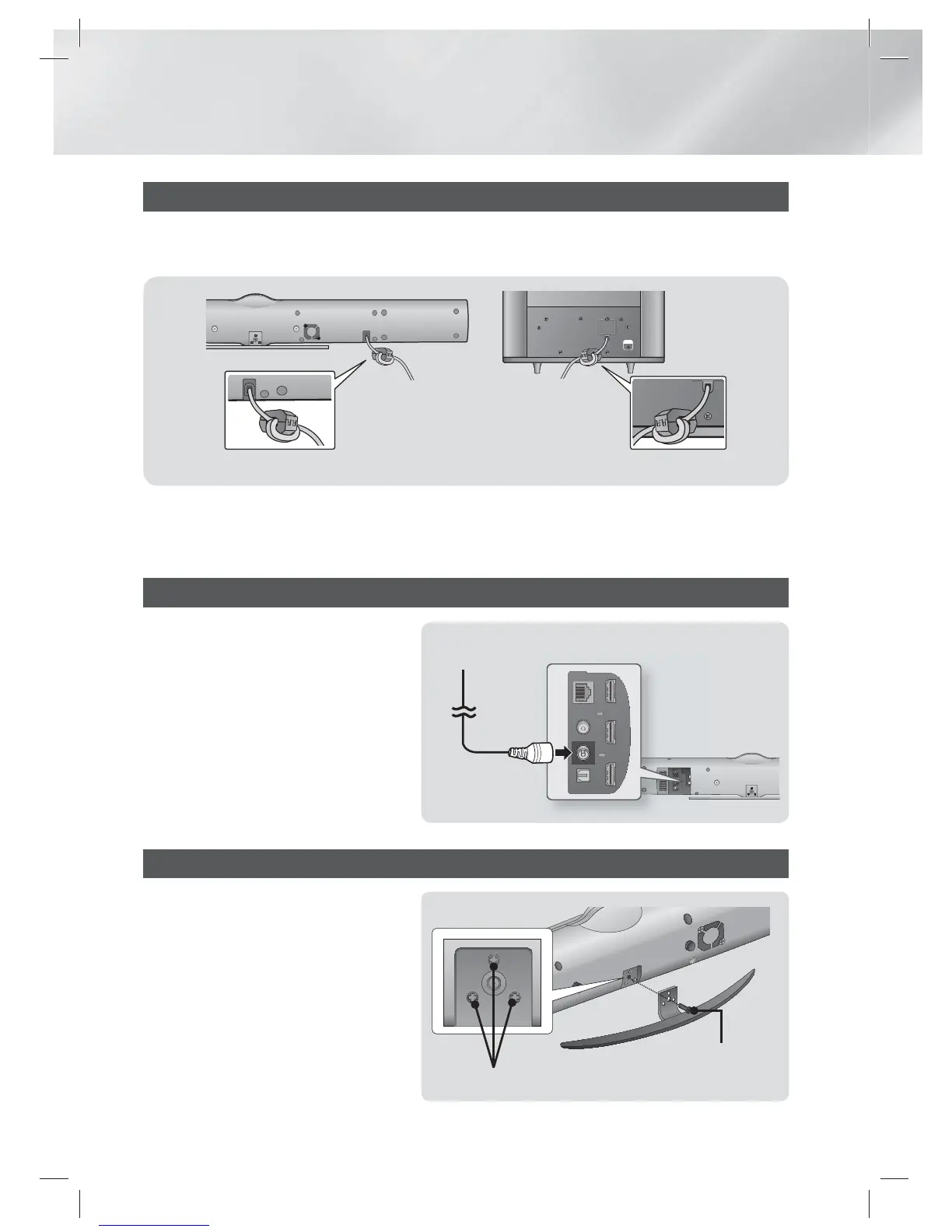

Attaching the Toroidal Ferrite Core to the Power Cord
If you attach a Toroidal ferrite core to the power cord, it will help to prevent RF interference from radio
signals.
1. Pull the fixing tab of the Toroidal ferrite core to open it.
2. Make a loop twice in the power cord.
3. Attach the Toroidal ferrite core to the power cord as the figure shows and press it until it clicks.
ID SET
<Main Unit> <Subwoofer>
