English 17
|
03 Connections
Installing the Wall Mount
You can use the wall mount bracket to mount this unit on a wall.
Installation Precautions
• Do not install on a place other than a vertical wall.
• For the installation, avoid a location with high
temperature or humidity.
• Check the strength of the wall. If the strength of the
wall is insufficient for the product installation, make
sure to reinforce the wall before the installation.
• Check the material of the wall. If the wall is made of
plaster board, marble, or iron board, purchase and
use the appropriate fixing screws.
• Cables connecting to external devices need to be
connected to the set before installing.
• Be sure to turn off and unplug the unit before
installation. Otherwise, it may cause electric shock.

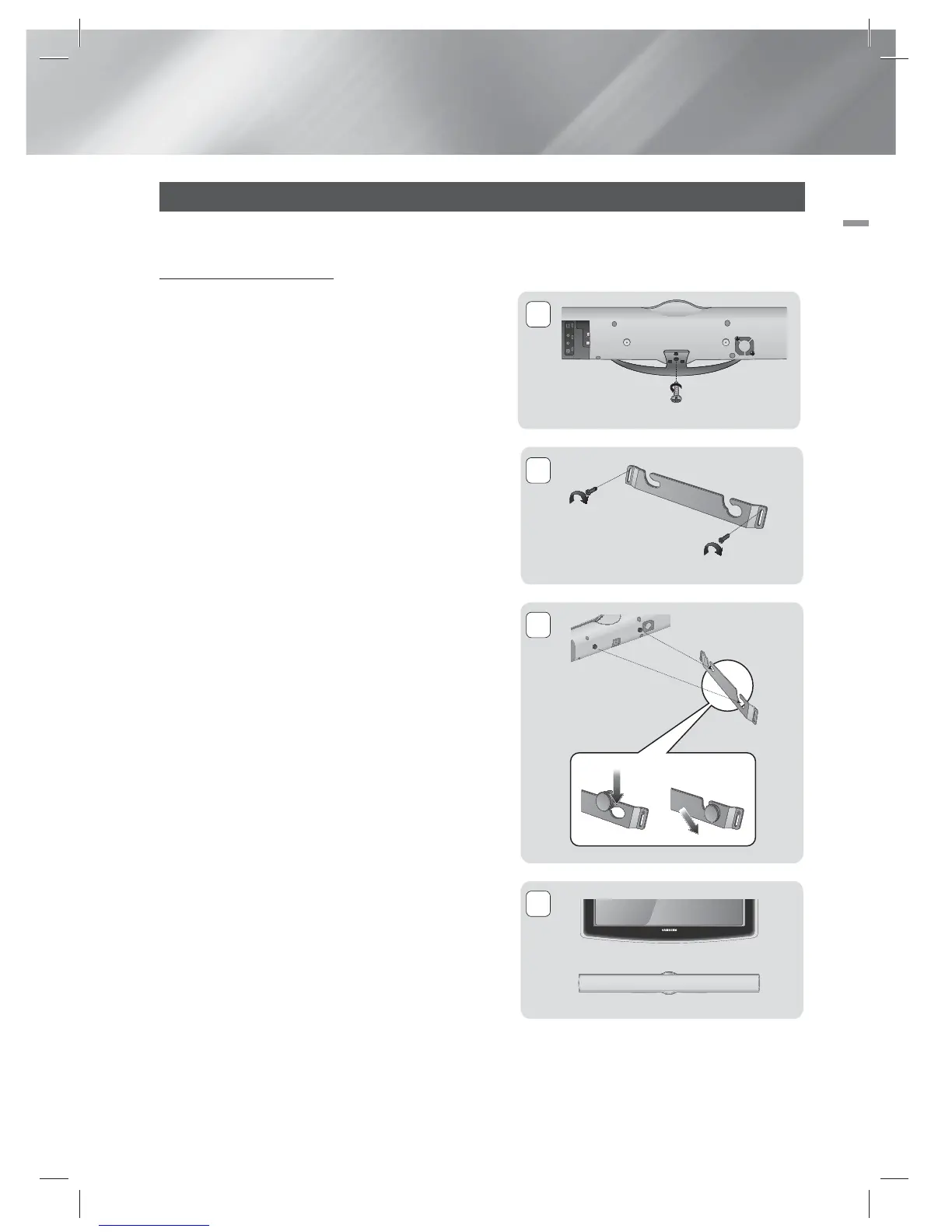

1 . Rotate a screw on the cradle stand counter-
clockwise to seperate them from the unit.
2 . Place the wall mount bracket on a wall surface and
then secure it with two screws (not supplied).
Be sure to install the wall mount bracket so that the
arrow (
) is placed in the centre of the TV.
3 . Then, fit the unit into the corresponding slots of the
wall mount bracket. For secure installation, make
sure the mounting studs slide firmly down into the
bottom of the slots.
4 . This is the completion of the suggested wall mount
installation.
|
NOTE
|
Do not hang onto the installed unit and avoid any impact to the
unit.
When the unit is installed on a wall, please make sure that a child
does not pull any of connecting cables, as it may cause it to fall.
When you install the product with TV on the wall, leave sufficient
space for ejecting a CD. (Disc size 12cm+ space for moving
hands)
HDMI OUT
HDMI IN 1 HDMI IN 2
LAN
VIDEO OUT
OPTICAL IN
FM ANT
1
2
21
3
4
