2-6
Samsung Electronics
Care must be taken when installing the drain hose for
the indoor unit to ensure that any condensate water is
correctly drained outside.

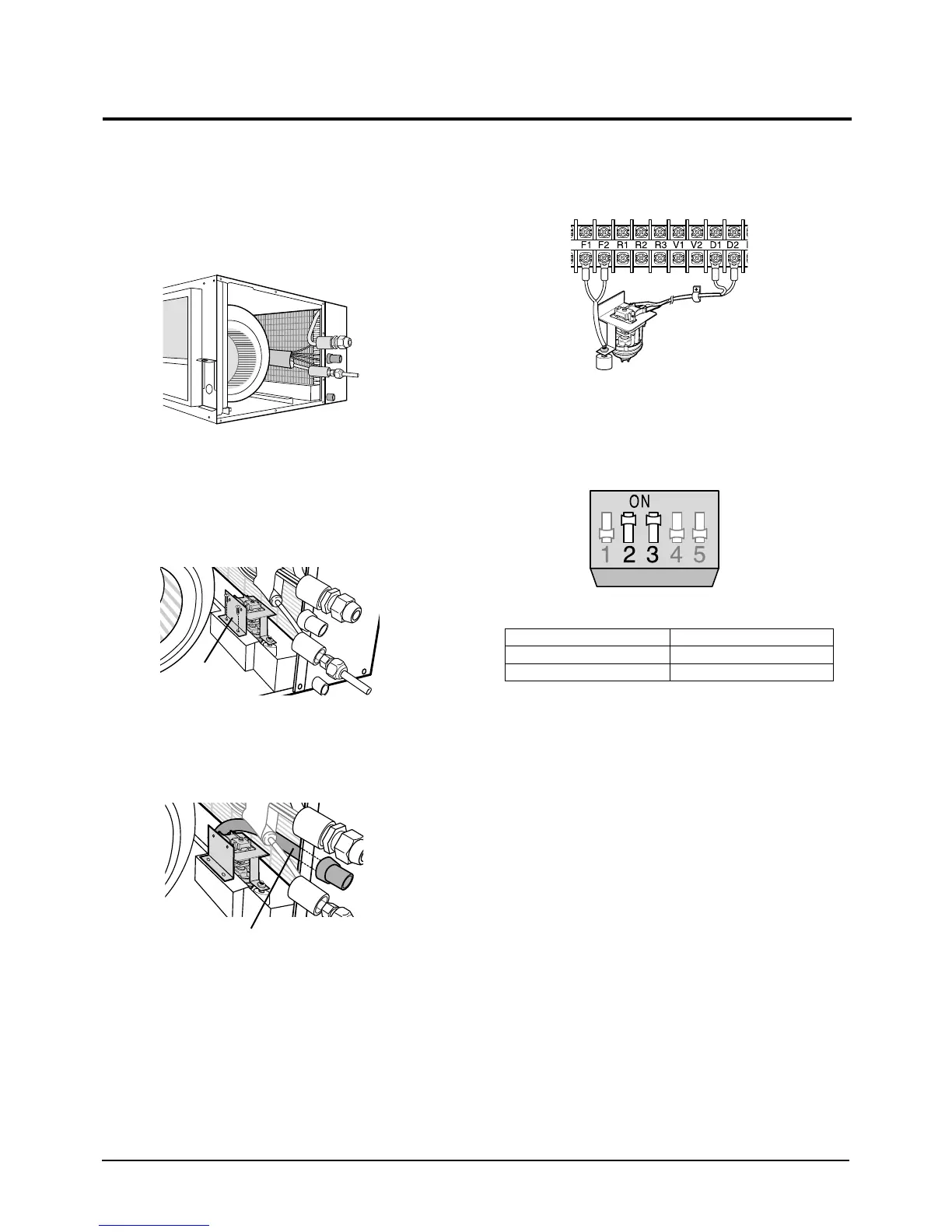

1. Open the side of indoor unit.
2. Screw the drain pump with two screws.
Note : When installing the drain pump, leave a 7mm
space between the bottom of the drain pan and
the drain pump.
3. Connect the drain hose to the drain socket.
4. Connect the cable to the electrical component
box as shown in figure.
5. Adjust the DIP switch(SW2) on the main PCB
according to the table below.
Note : Wrap the drain tube outlet with an insulating
materials.
2-6 Drain Pump Installation
Switch No.
2
3
Switch Position
ON
ON
Drain pump
Float
switch
Drain pump
Drain pump hose
2-00216A(1)-PR 5/19/01 10:05 AM Page 2-6
