5. Disassembly and Reassembly
Samsung Electronics
5-1
Stop the operation of air-conditioner and remove the power source cord before repairing the unit.
Indoor Unit
No. Part name Procedures Picture
!

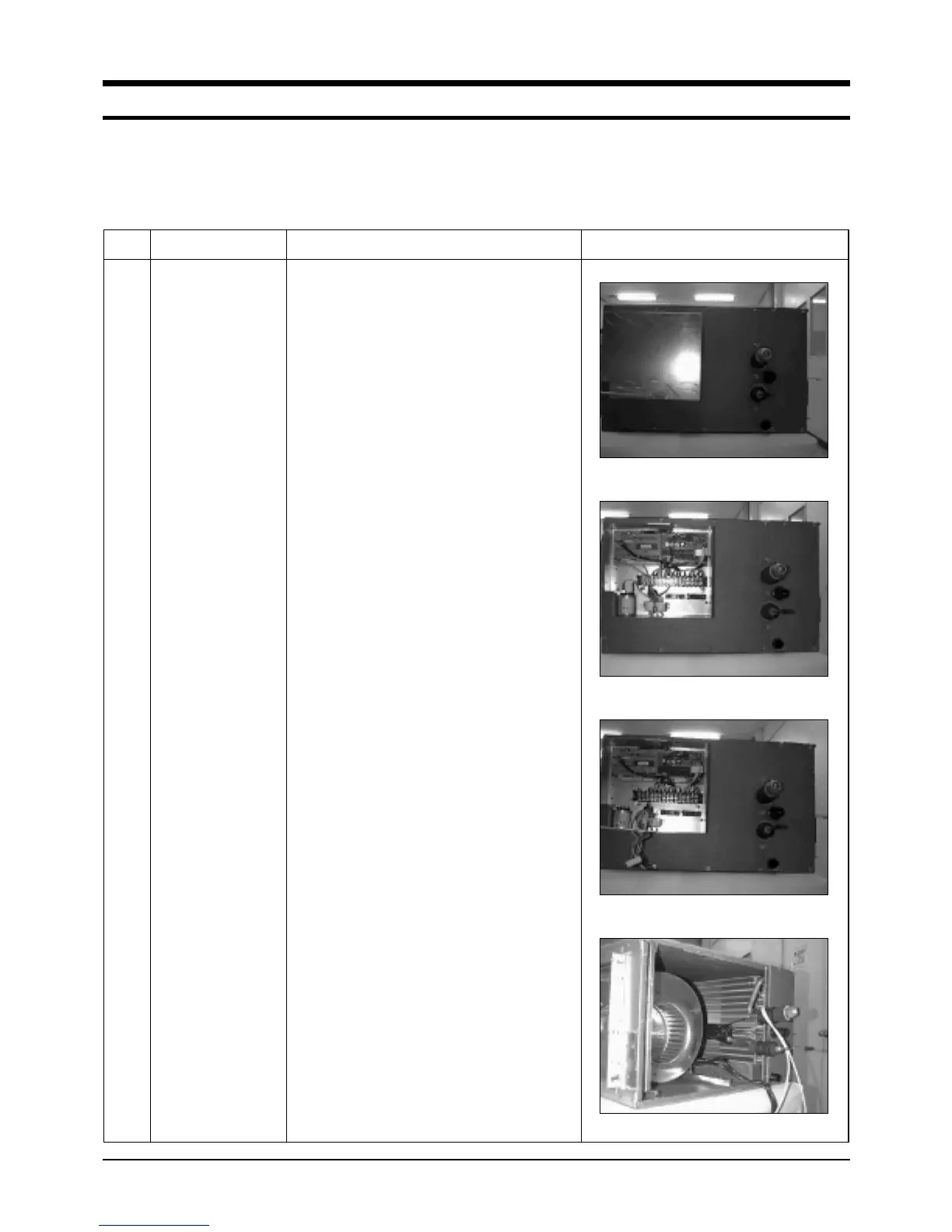

Disassembly of
indoor unit
(disassembly of the
control box)
!
Disassemble 1 screw for fixing the control
box cover.
@
Check internal connection of the control
box.
#
Separate the wire connection part of the
control box.(indoor motor line, indoor
capacitor line/temperature sensor line)
$
Disassemble 14 screws on the side.
And then separate the cabinet from unit.
4-00216A(1)-DA 5/19/01 10:06 AM Page 5-1
