5-2
Samsung Electronics
Disassembly and Reassembly
No. Part name Procedures Picture
@

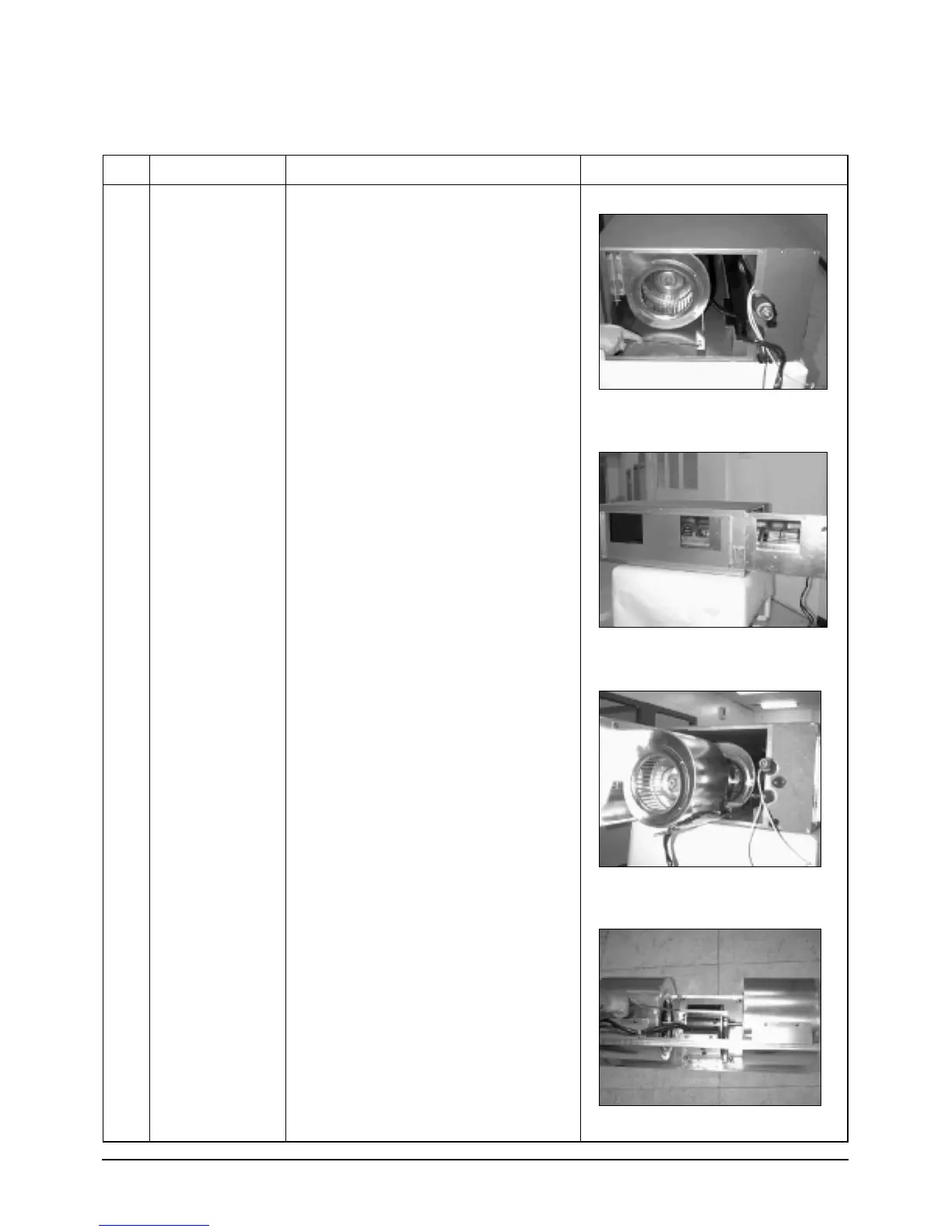

Fan and motor
!
Separate 4 screws fixed on the unit base.
@
Pull the panel for fixing fan and motor as
following figure. Then the fan and motor
panel are separated from the unit.
#
If the motor support was removed, the
pan and motor shall be separated from the
panel.
4-00216A(1)-DA 5/19/01 10:06 AM Page 5-2
To Next Page
