Samsung Electronics
5-3

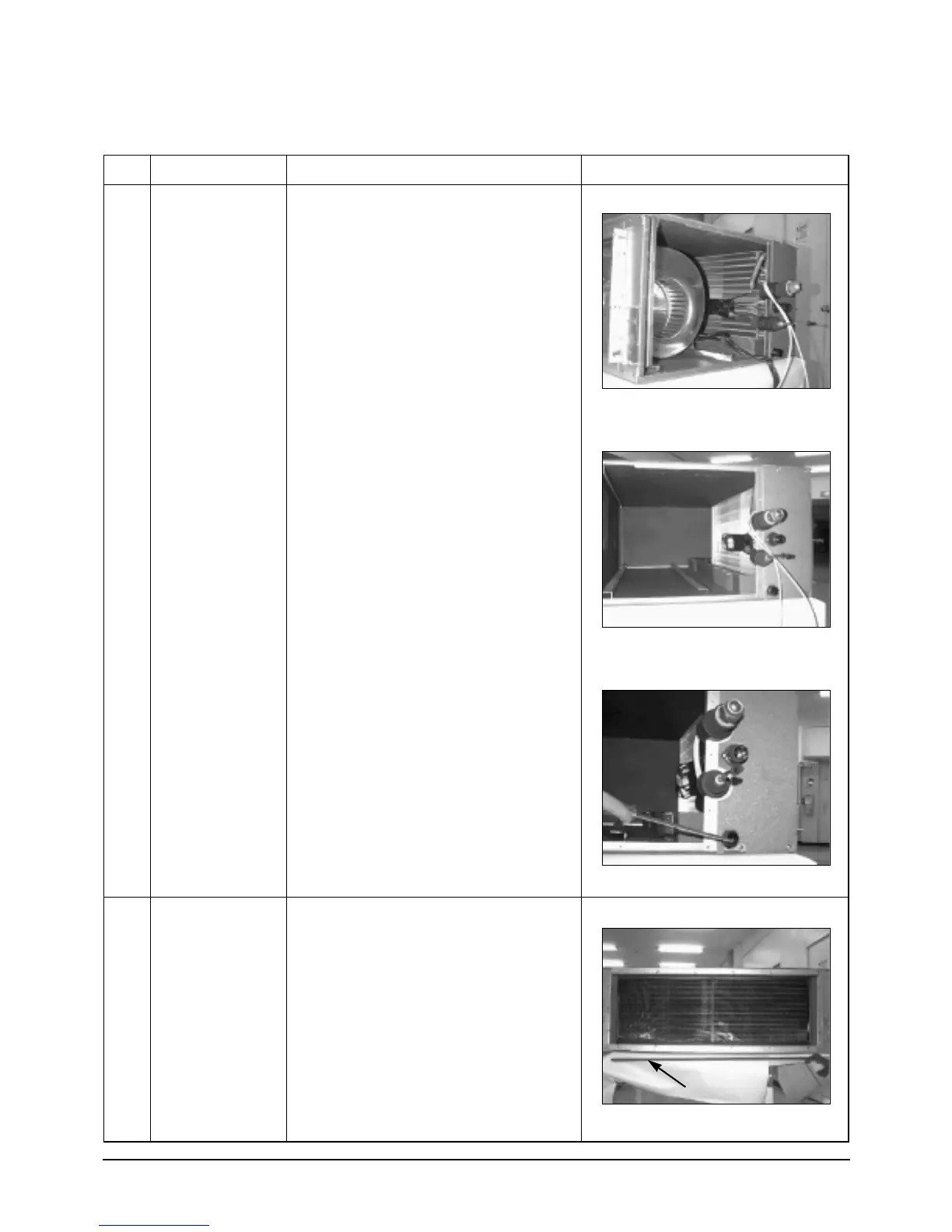

Disassembly and Reassembly
No. Part name Procedures Picture
#
$
Heat exchanger
drain board
Cleaning a filter
!
Disassemble 14screws on side part, then
cabinet and the unit are separated.
@
It is possible to clean the surface of heat
exchanger and drain board.
#
After cleaning heat exchangers and drain
board, check whether the drain exhaust
are clogged.
!
Remove bracket for fixing filter(6 screws
disassembly).
bracket
4-00216A(1)-DA 5/19/01 10:06 AM Page 5-3
