Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
The centralized controller is an optional accessory.
NOTE : Operating lamp comes on when at least one air conditioner
connected to the centralized controller is operating.
3-3 Centralized Controller Operation

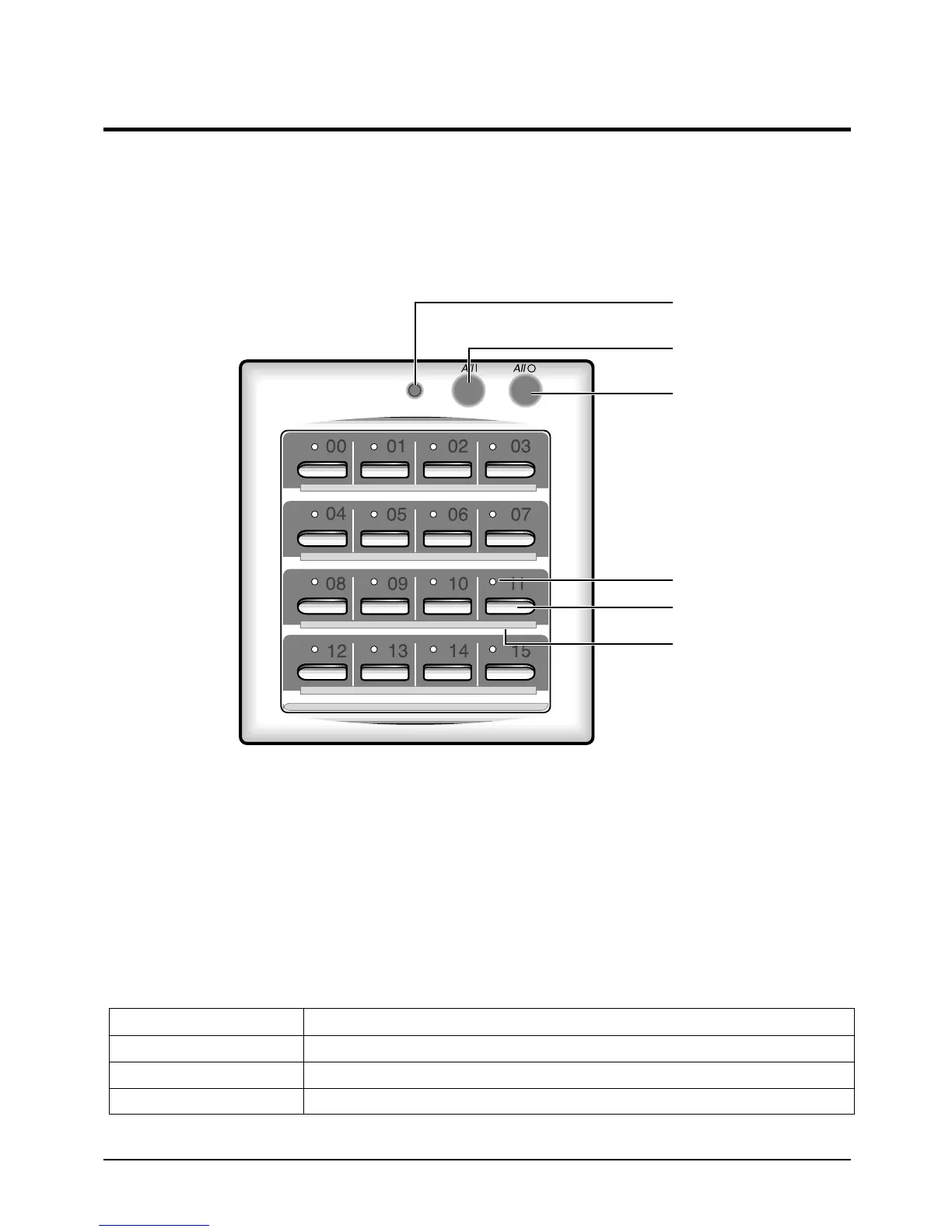

3-3-1 Appearance and characteristics of Centralized Controller
The centralized controller is installed on the wall.
Samsung Electronics
BUTTON NAME
ALL1
ALL0
"01" ~ "16"
FUNCTION
• To put on all 16 chambers' set.
• To put off all 16 chambers' set.
• To put on/off set assigned with the number.
• Since the centralized controller has the relay
equipment, the option mounted on the indoor
unit, the On/Off can be set for 16 chambers
through the modem communication.
• Linkage of wired remote controller to wired
remote controller is available by 3 kinds of level.
• The maximum extended distance of 1 Km is
possible through modem communication. (the
relay equipment is installed at the option item,
indoor unit)
• The connection by non-polarity method is easy.
