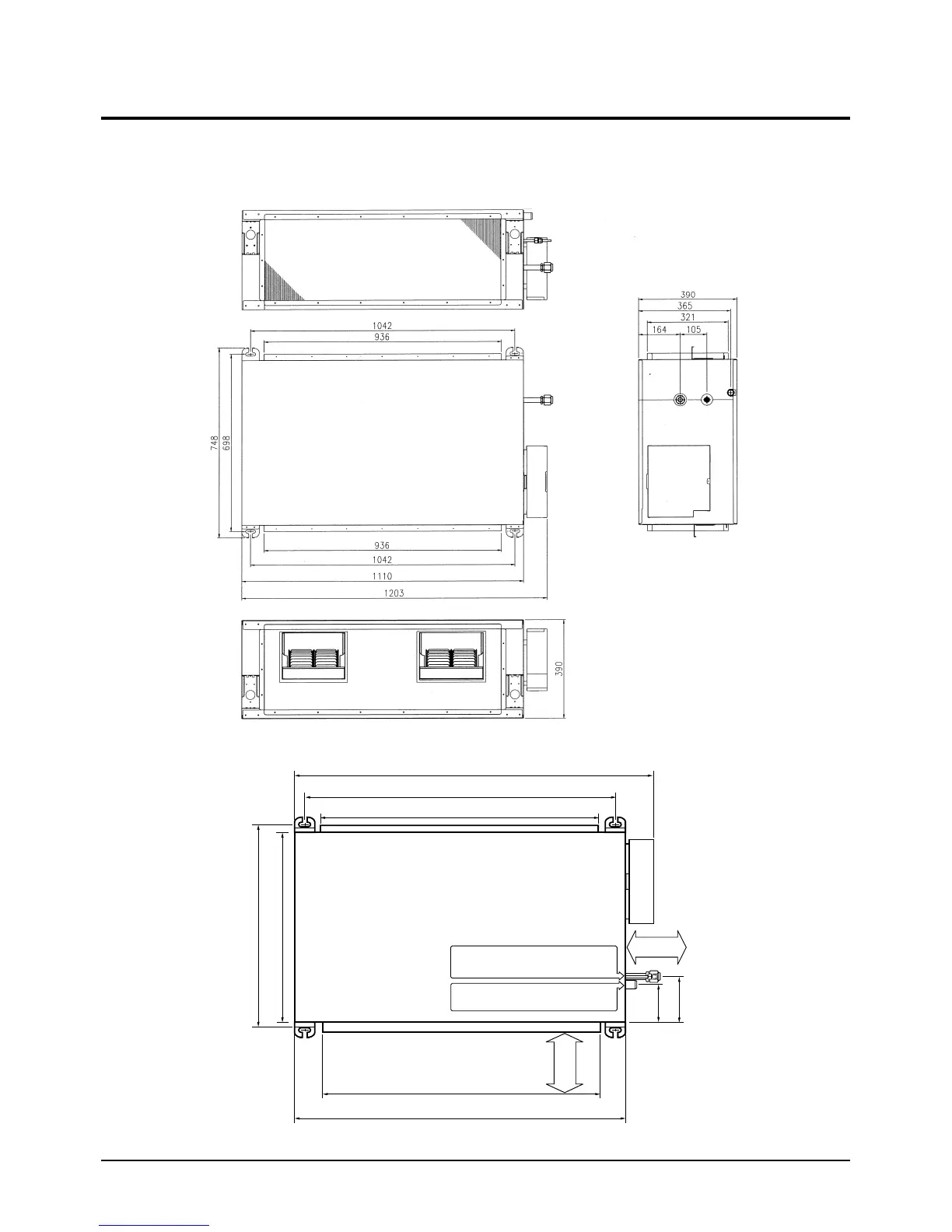

1-2 Dimensions
• Indoor unit
Samsung Electronics
1-3
1023
Inspection area
1200mm
Inspection area
1200mm
1042(Space of suspension bolts)
698(Space of suspension bolts)
650(Outer dimensions)
Electrical
component box
131
157
936 x 321(Dimension of outlet duct flange)
936 x 321(Dimension of inlet duct flange)
1110(Outer Dimensions)
Pipe connection port
(Liquid pipe:ø9.52mm, Gas pipe:ø19.05mm)
Drain pipe connection port
(Out diameter:ø27.2mm)
