3-6
Samsung Electronics
Disassembly and Reassembly

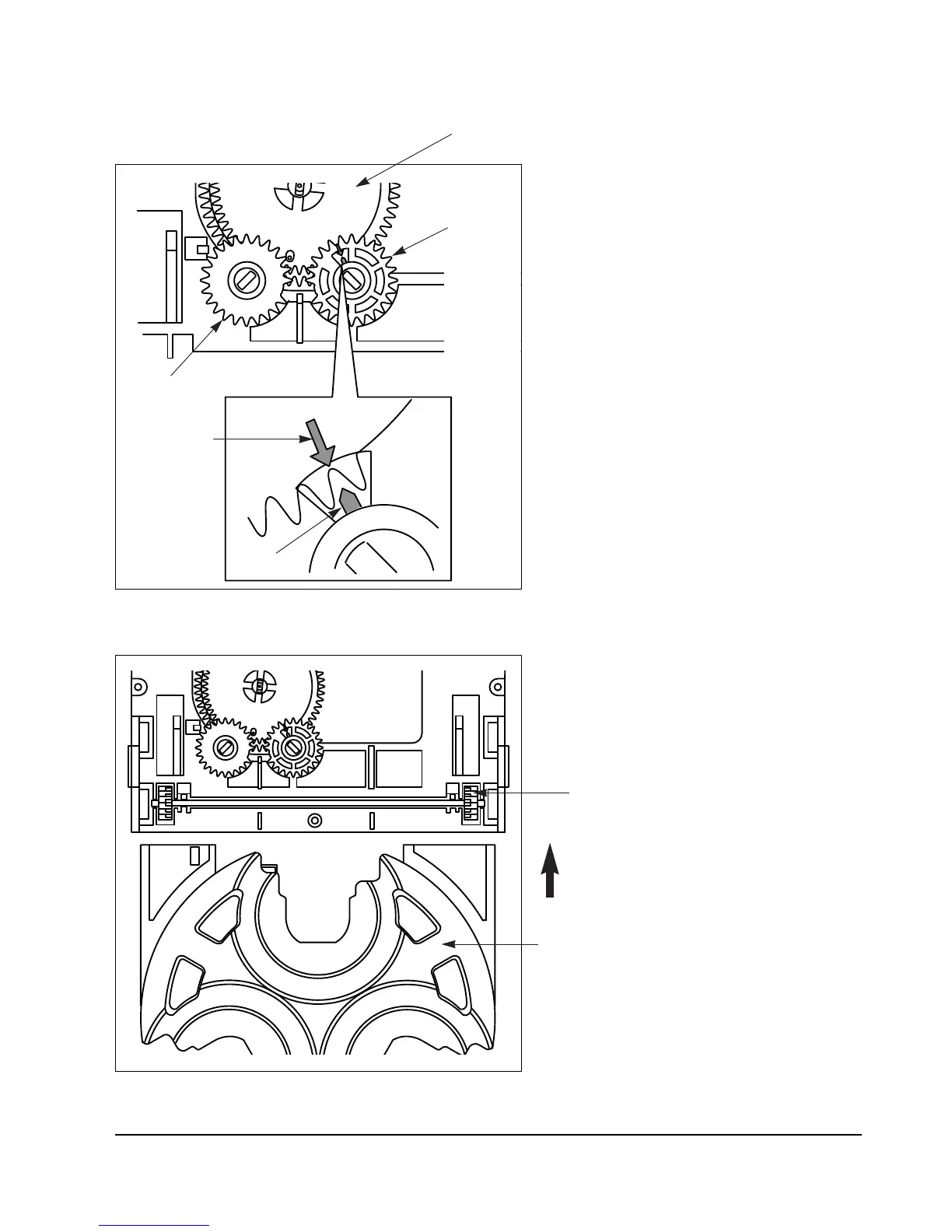

Figure 3-6
Gear-Cam
Gear-Cover
Gear-Cam
Gear-Synchro
Gear-Disc
Insert
Gear-Tray
* Reinstall in reverse order.
* Align the Gear-cam with the gear-Tray as
shown in Figure3-6, then mount the Tray-Disc.
* When assembling the Tray-Disc, take extreme
care not to engage with Gear-Synchro.
Gear-Cam
Timming Point
Figure 3-7
To Next Page
