3-2 CD-MECHA, DOOR-CD
1. If power is connected :
- Turn power on
- Open the tray using the open/close key
- Remove the Door in the direction of arrow #.
2. If power is not connected :
- Turn the gear clockwise using a screw driver as shown in Figure 3-2- 1.
- Pull the Tray in the direction of arrow @ and then remove the Door in the direction of arrow # .
3. Remove 2 screws $ and lift the CD-MECHA.
1
2
3
4 4
4 4
OPTION
OPTION
3-2
Samsung Electronics

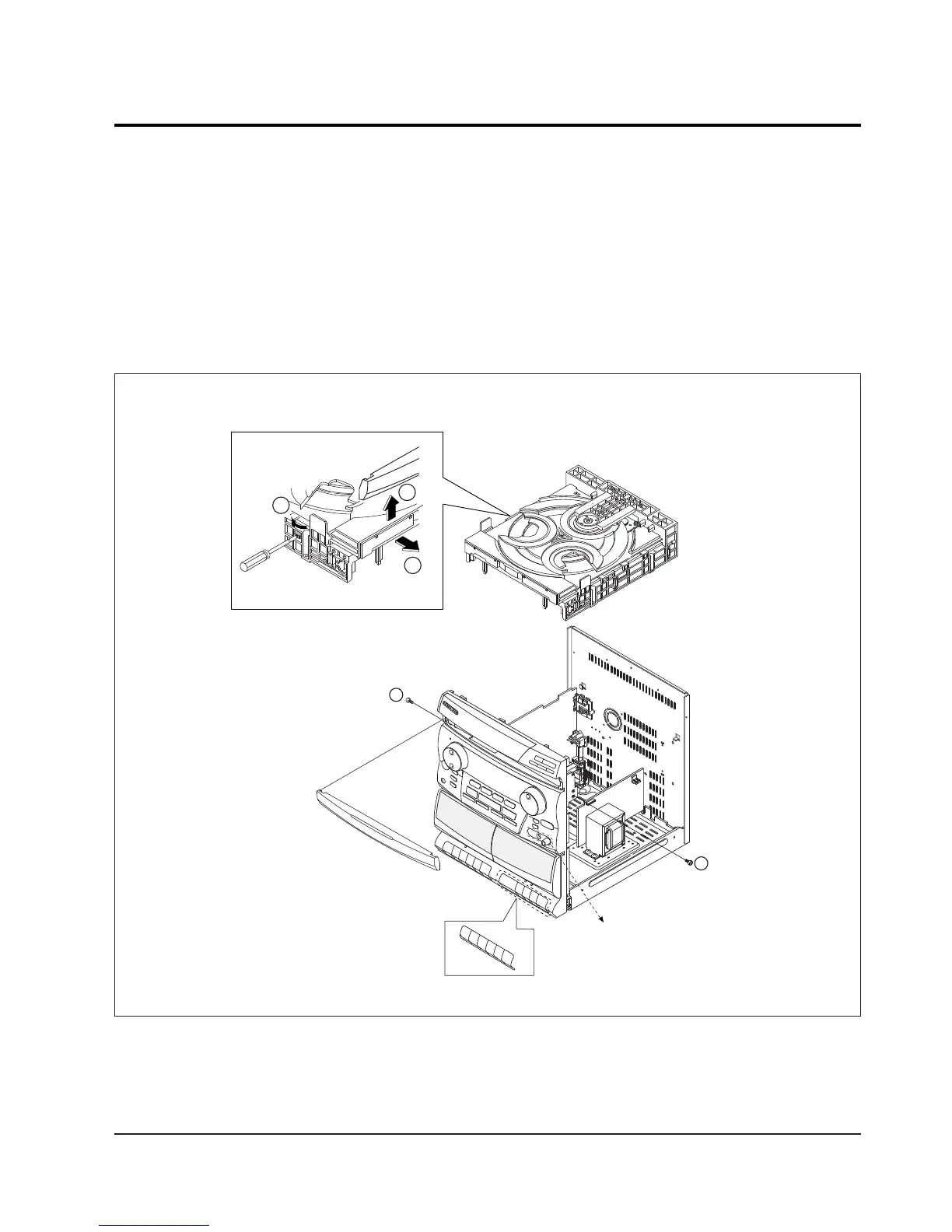

Figure 3-2-1
Figure 3-2
Disassembly and Reassembly
