Samsung MAX-445 - CD Deck

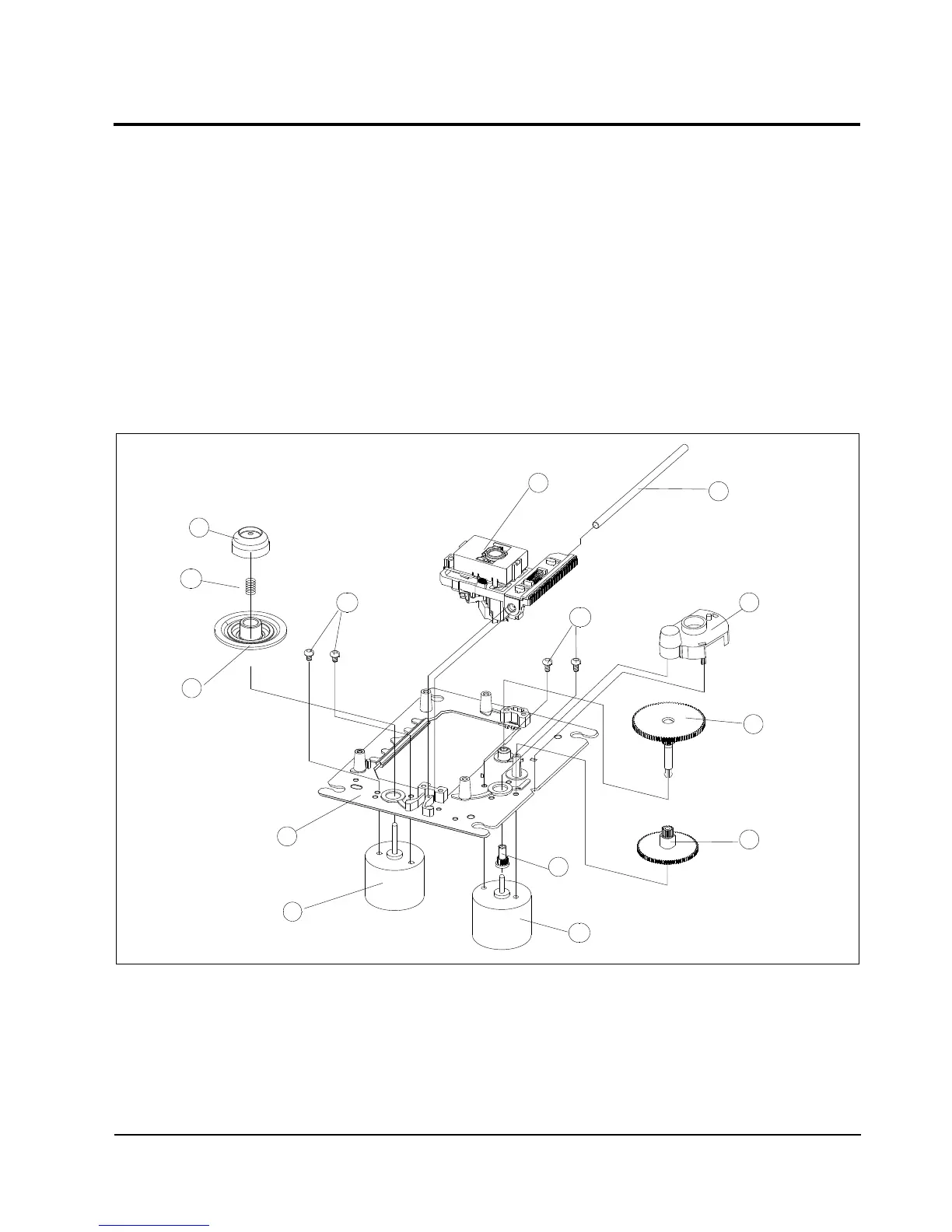

3-8 CD Deck
1. Remove the Shaft ! .
2. Lift the P/U @ .
Note : Take extreme care not to touch the surface of lens.
3. Lift the Center-ring # .
4. Remove the Spring-T/Table $ .
5. Remove the Turn-Table (M) % .
6. Remove 2 screw ^ and then remove the Spindle-Motor & .
7. Remove the Cover-Gear * by pushing the hook.
8. Remove the Gear(c) ( by pushing the hook.
9. Lift the Gear(b) ) .
10. Remove the Gear(a) 1 .
11. Remove 2 screws 2 and then remove the Feed-Motor 3 .
12. Remove the Chassis-Deck(M) 4.
