Samsung MAX-670 - CD Section

PICK-UP LIMIT SW (ON OFF)
PICK-UP UNIT SW (DOWN)
DISC CASE P.SENSOR(L)
LOAD
LOADING PLATE P.SENSOR(H L)
LOADING MOTOR STOP
LOADING MOTOR (CCW)
30mS (BRAKE)
LOADING MOTOR STOP 40mS
LOADING MOTOR (CCW)
LOADING PLATE P.SENSOR(L H)
LOADING MOTOR STOP 30mS
LOADING MOTOR (CW)
LOADING PLATE P.SENSOR(H L)
LOADING MOTOR STOP
END
C
C
C
a
b
c
e
d
LOADING MOTOR(CW)
Samsung Electronics
6-7
Troubleshooting
6-3 CD Section

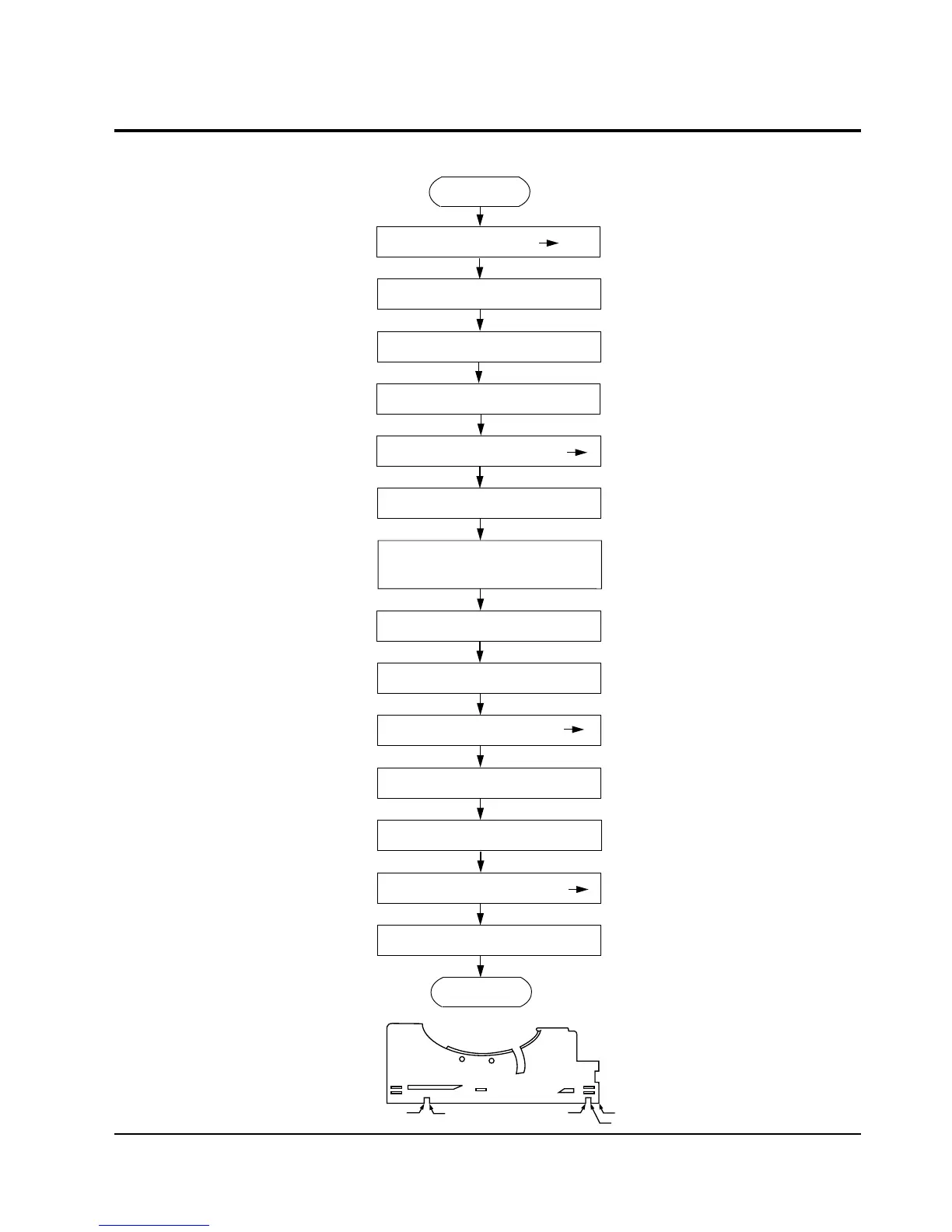

6-3-1 Load Operation
