Disassembly and Reassembly
Service Manual

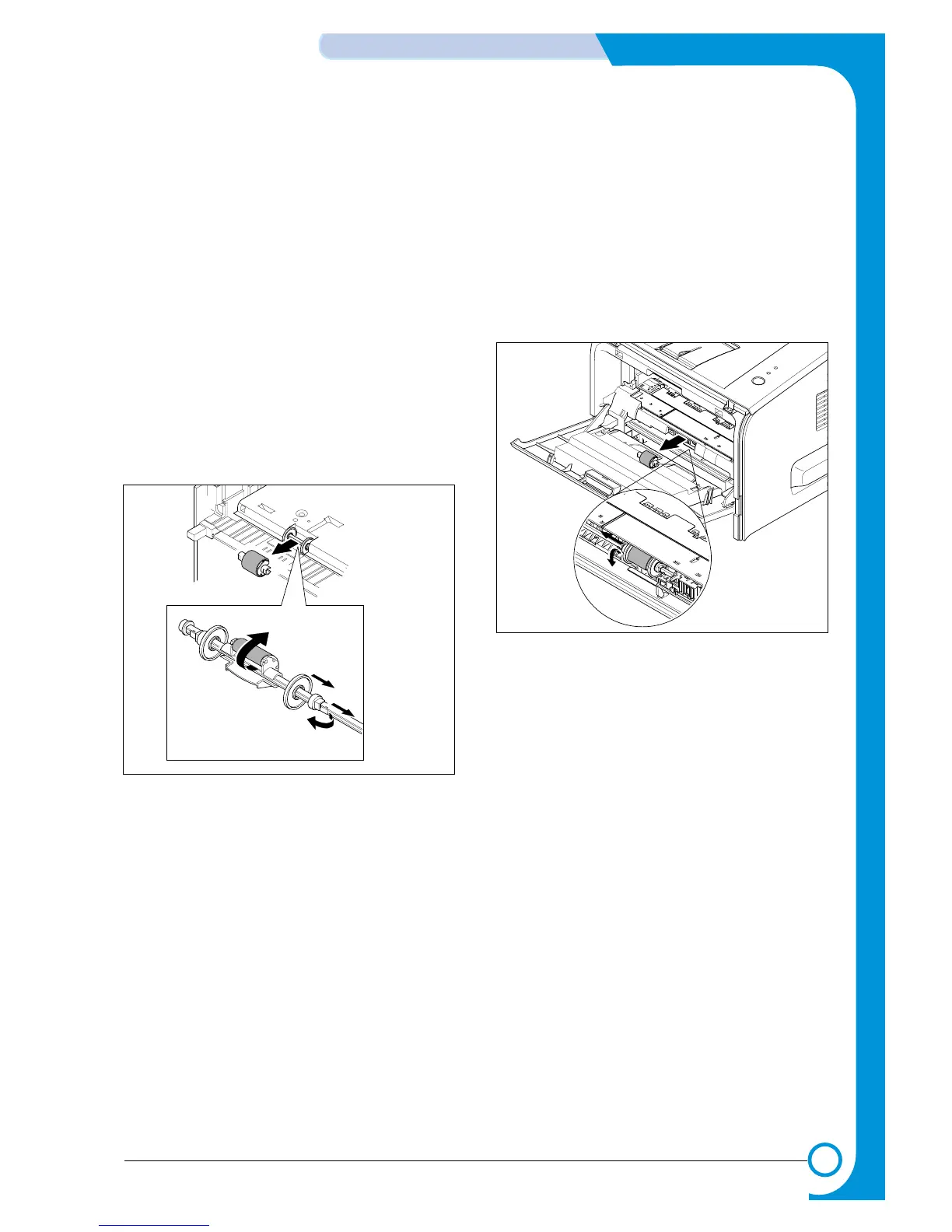

6. It is a simple matter to replace the MP Pickup
Roller and the main cassette Pickup Roller
without dismantling the set.
In both cases first remove the main paper
cassette, toner cartridge and front cover.
a) In order to replace the main cassette Pickup
Roller
1) Turn the set upside down
2) Release the white catch and slide the locking
piece as far to the side as possible.
3) Slide the white collar as far to the side as
possible.
4) Slide the Pickup Roller as far as possible to
the side, until it is free from the white collar on
the other end.
5) Rotate the Pickup Roller around the drive
shaft until it can be removed.
b) In order to replace the MP Pickup Roller
1) Release the white catch and slide the locking
piece as far to the side as possible.
2) Slide the white collar as far to the side as
possible.
3) Slide the Pickup Roller as far as possible to
the side, until it is free from the white collar on
the other end.
4) Rotate the Pickup Roller around the drive
shaft until it can be removed.
