5-18
Disassembly and Reassembly
Samsung Electronics
Service Manual

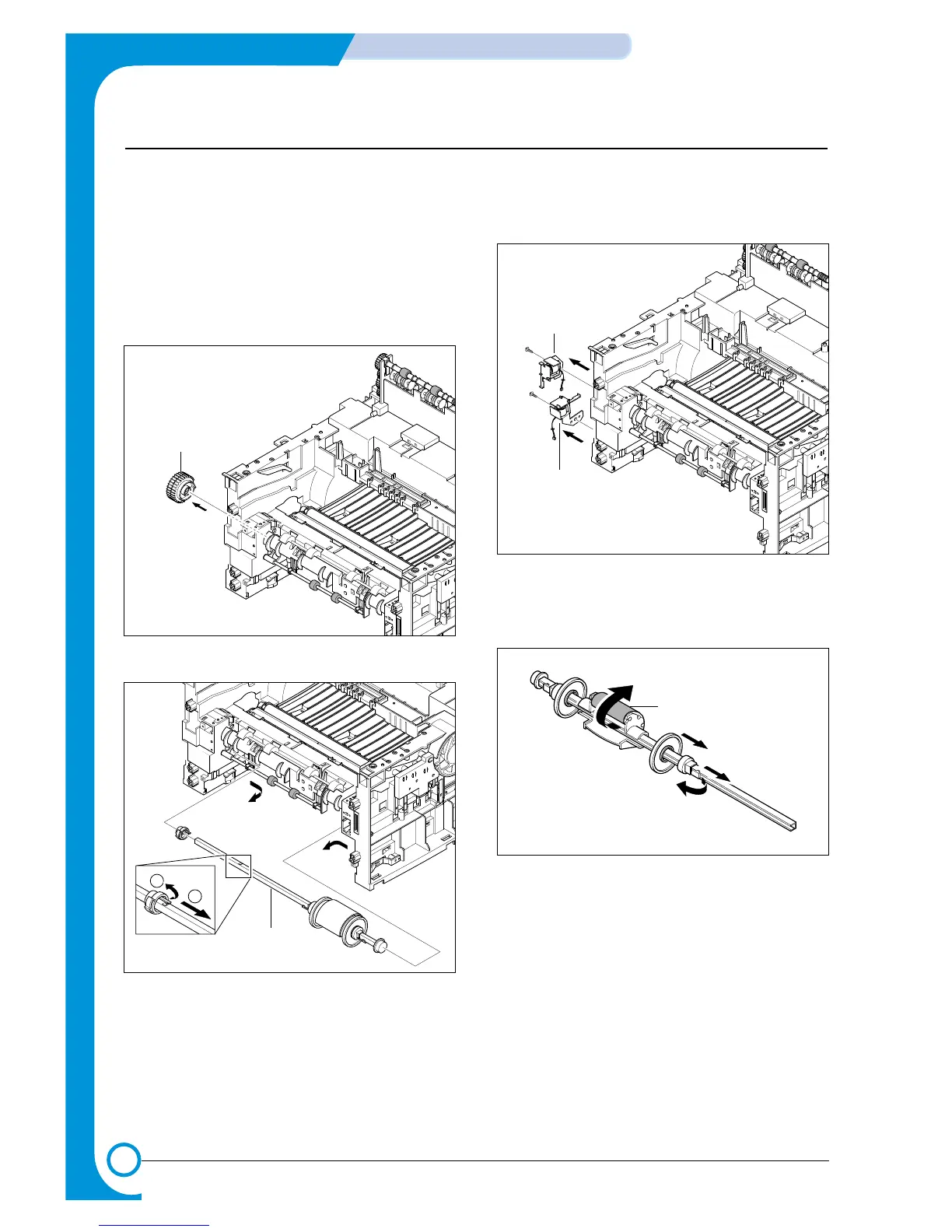

1. Before you remove the Pick-Up Ass’y & Solenoid,
you should remove:
- Front Cover
- Rear Cover
- Middle Cover
- Side Cover(LH, RH)
- Top Cover
2. Remove the Pick-Up Gear Ass’y as shown
below.
3. Remove the Pick-Up Ass’y as shown below.
4. Disconnect the Main Clutch and Regi Clutch
harness from the main board. Remove two
screws then remove the two solenoids talking
care to thread the cables through the frame.
5. Remove the rubber pickup from the Pink-Up
Roller, as shown below.
Pick-Up Solenoid
Manual Solenoid
5.17 Pick-Up Ass’y & Solenoid
Pick-Up Gear Ass’y
1
2
Pick-Up Ass’y
Rubber Pickup
