Service Manual
Disassembly and Reassembly
5-12
Samsung Electronics
5.12 Solenoid
1. Before you remove the Solenoid, you should remove:
- Cover Right (Refer to the 5.7)
- Main Drive Ass'y (Refer to the 5.9)

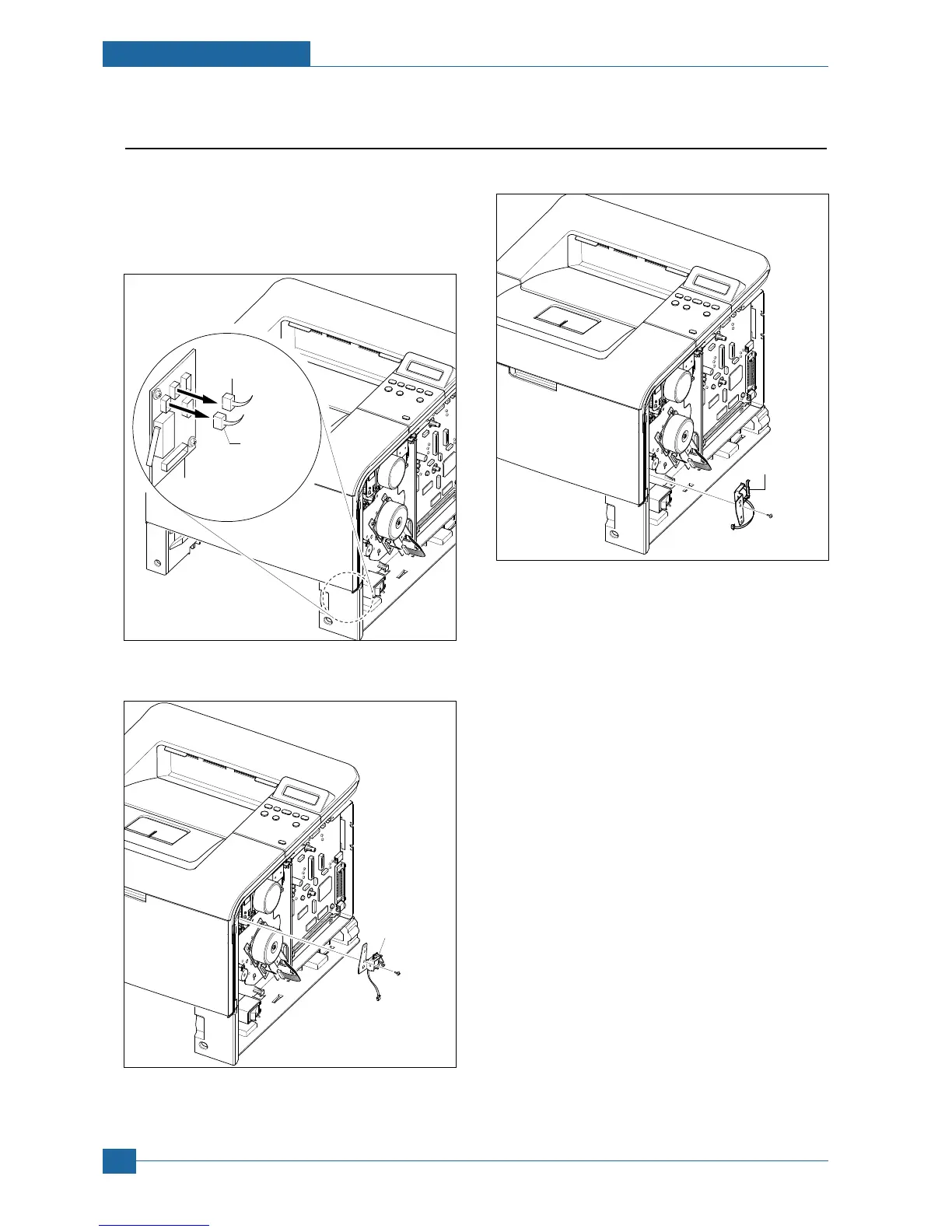

2. Unplug the MP Solenoid Harness and the Main
Solenoid Harness from the Connector PBA.
3. Remove one screws and take out the MP Solenoid.
4. Remove one screws and take out the Main Solenoid.
*NOTICE : It is not necessary to disassemble the Main Drive
Ass'y to remove the MP Solenoid.
