English 13
02 Connections

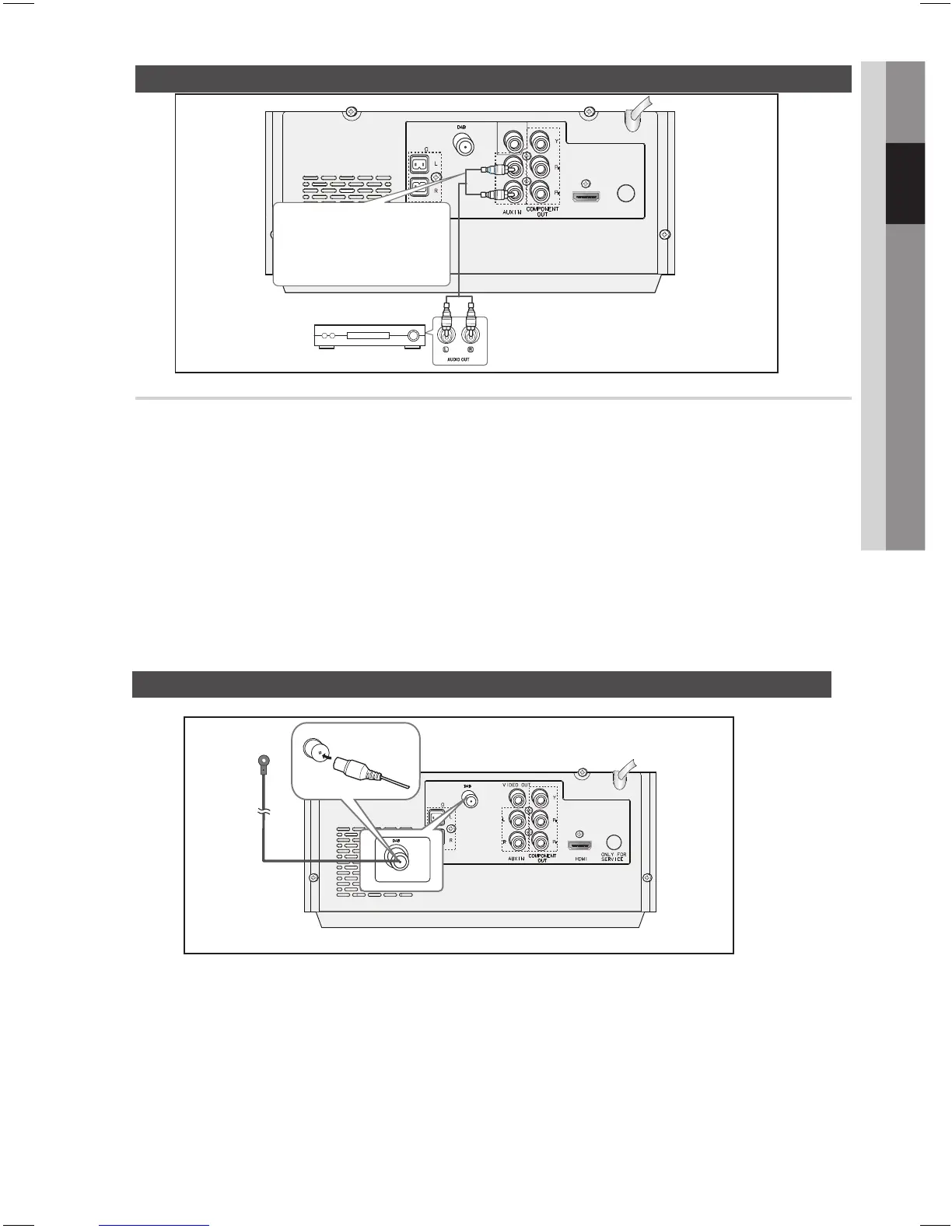

Connecting Audio from External Components
AUX : Connecting an External Analog Component
Analog signal components such as a VCR.
1. Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analog component.
• Be sure to match the colors of the connecting jacks.
2. Press the FUNCTION button to select AUX input.
• The mode switches as follows :
DVD/CD ➞ ARC ➞FM ➞DAB ➞ USB ➞ R.IPOD ➞ IPOD ➞ AUX ➞ BT/GAL.
✎ NOTE
` You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the
VCR to this product.
SPEAKERS
OUT (4 )
ONLY FOR
SERVICE
VIDEO OUT
HDMI
OUT
Audio Cable
(not supplied)
If the external analog
component has only one Audio
Out, connect either left or right.
Connecting the FM/DAB Antenna
1. Connect the FM/DAB antenna to the DAB Antenna jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
SPEAKERS
OUT (4 )
PHONES AUX IN
ONLY FOR SERVICE
FM/DAB ANT
FM/DAB Antenna
(supplied)
✎ NOTE
` This product does not receive AM broadcasts.
