3-17
3. Disassembly and Reassembly
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
R530/R730
Part Picture Description
LCD
Ass'y
(17")

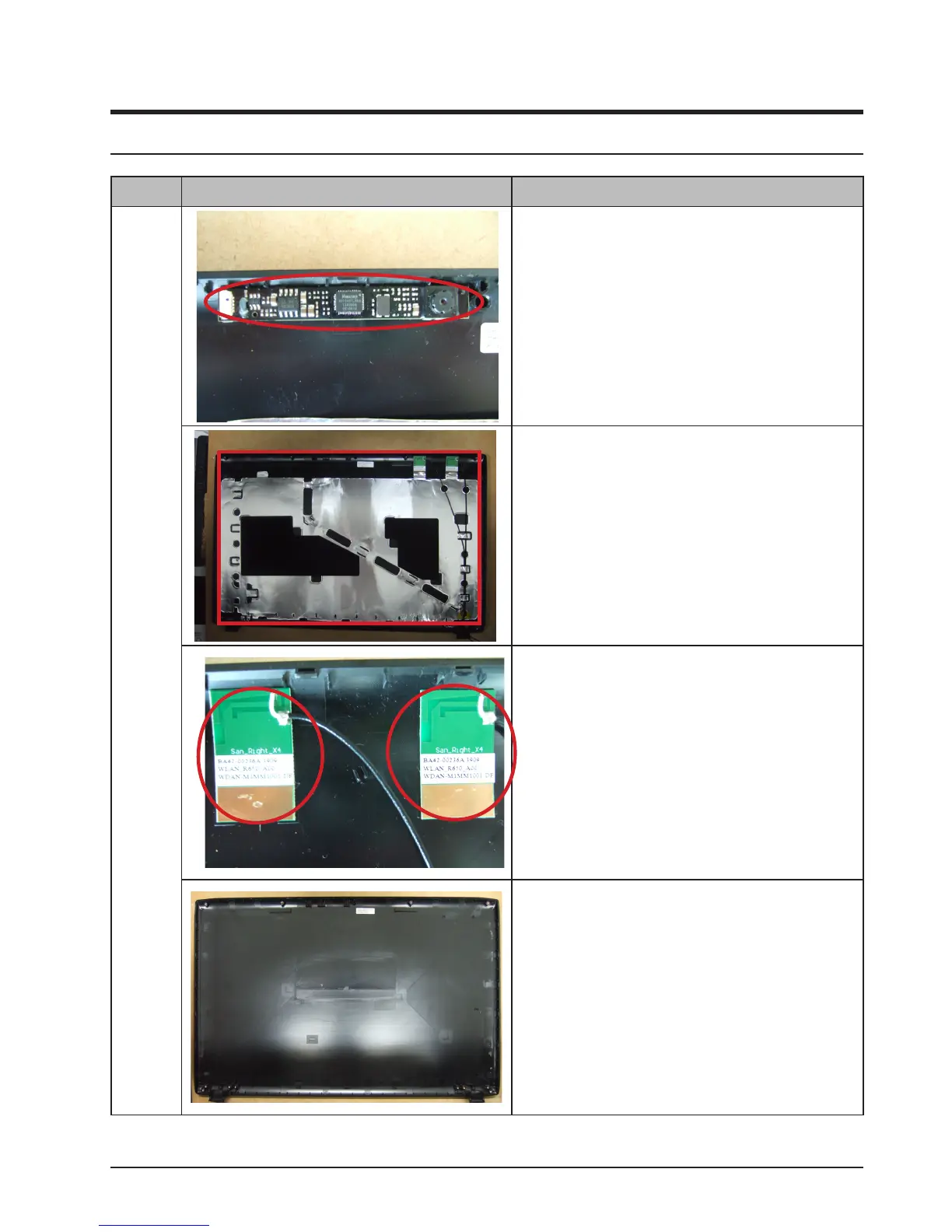

36. Remove the camera module.
1). Remove the camera module as shown in the picture.
[Notice]
Carefully remove it because camera module is xed with the
adhesive tape.
37. Remove the LCD pad for preventing shock of LCD
panel and shield pad for preventing electromagnetic
interference xed with adhesive on LCD bottom cover.
1) Remove the main and aux antenna cable from the LCD
Pad.
2) Remove the LCD pad and shield pad.
38. Remove the main and aux antenna from the LCD bottom
cover.
[Notice]
Carefully remove it because WLAN antenna is xed with the
adhesive tape.
39. Conditions of the Bottom Cover which is separated
completely
To Next Page
