3-1
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
R530/R730
3. Disassembly and Reassembly
3-1. R530/R730 Disassembly and assembly

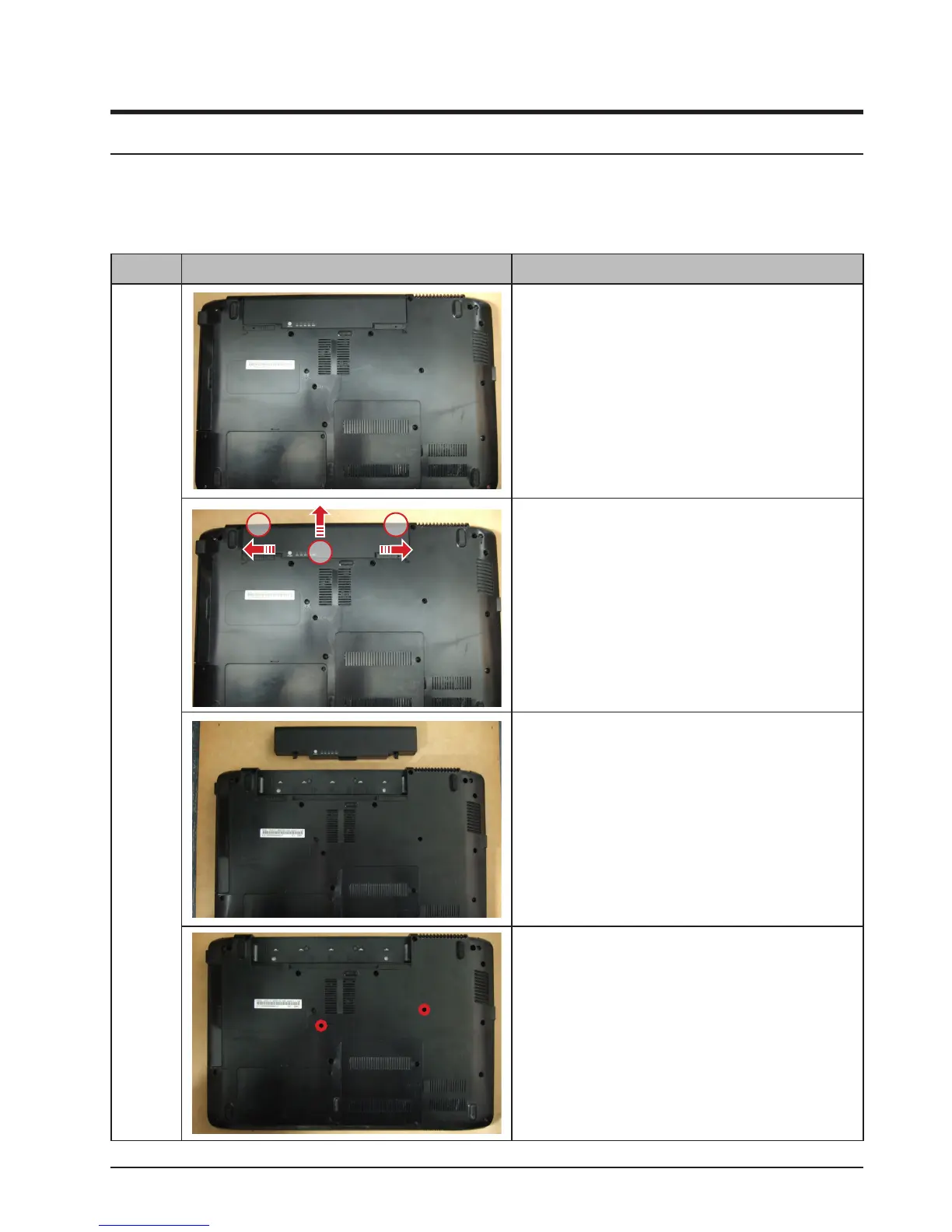

Part Picture Description
Main
System
1. Before disassembling the system, the AC adapter and the
battery have to be separated.
11
2
2. As shown in picture 1, Slide the KNOB to the end closely
into the arrow direction, then push the battery up as shown
in picture 2.
3. Conditions after removing the battery
4. Remove the screws for xing the keyboard.
(M2 x L8, Black: 2 EA)
[Caution] Attention to red sentence.
To Next Page
