3-2
3. Disassembly and Reassembly
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
R530/R730
Part Picture Description
Main
System

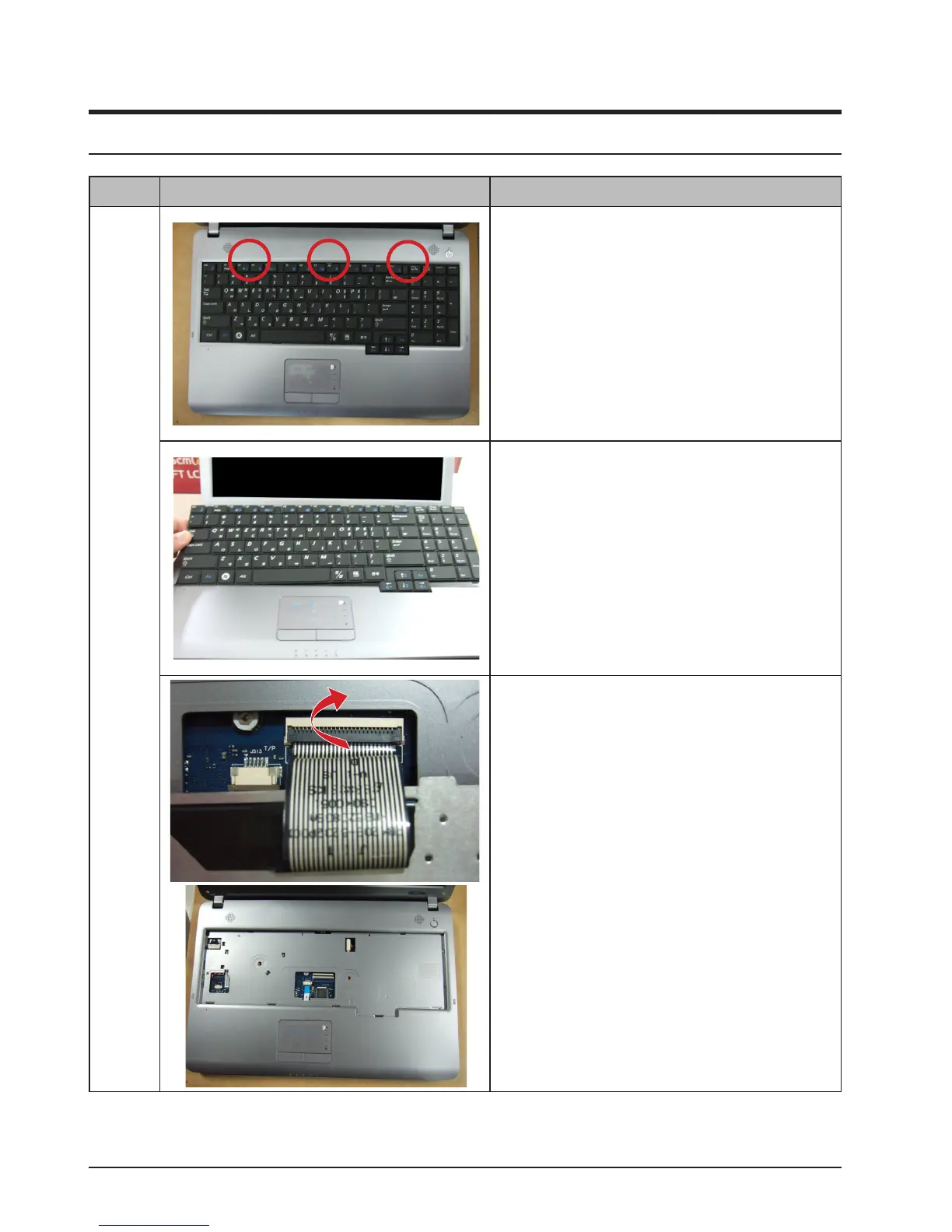

5. Push the Hook up inwards by using a pin-set as shown in
the picture, and then lift the key board up.
[Notice]
When you push the hook up, you have to be careful not to
scratch on TOP
6. As shown in the picture, lift the top side of keyboard up
and then disassemble keyboard.
7. Remove the keyboard cable.
1). With the keyboard upside down, unlock the Keyboard
connector and then remove the keyboard FPC cable.
2) Conditions after removing the keyboard.
To Next Page
