2.ProductSpecicationanddescription

2.2.4.4.FuserUnit

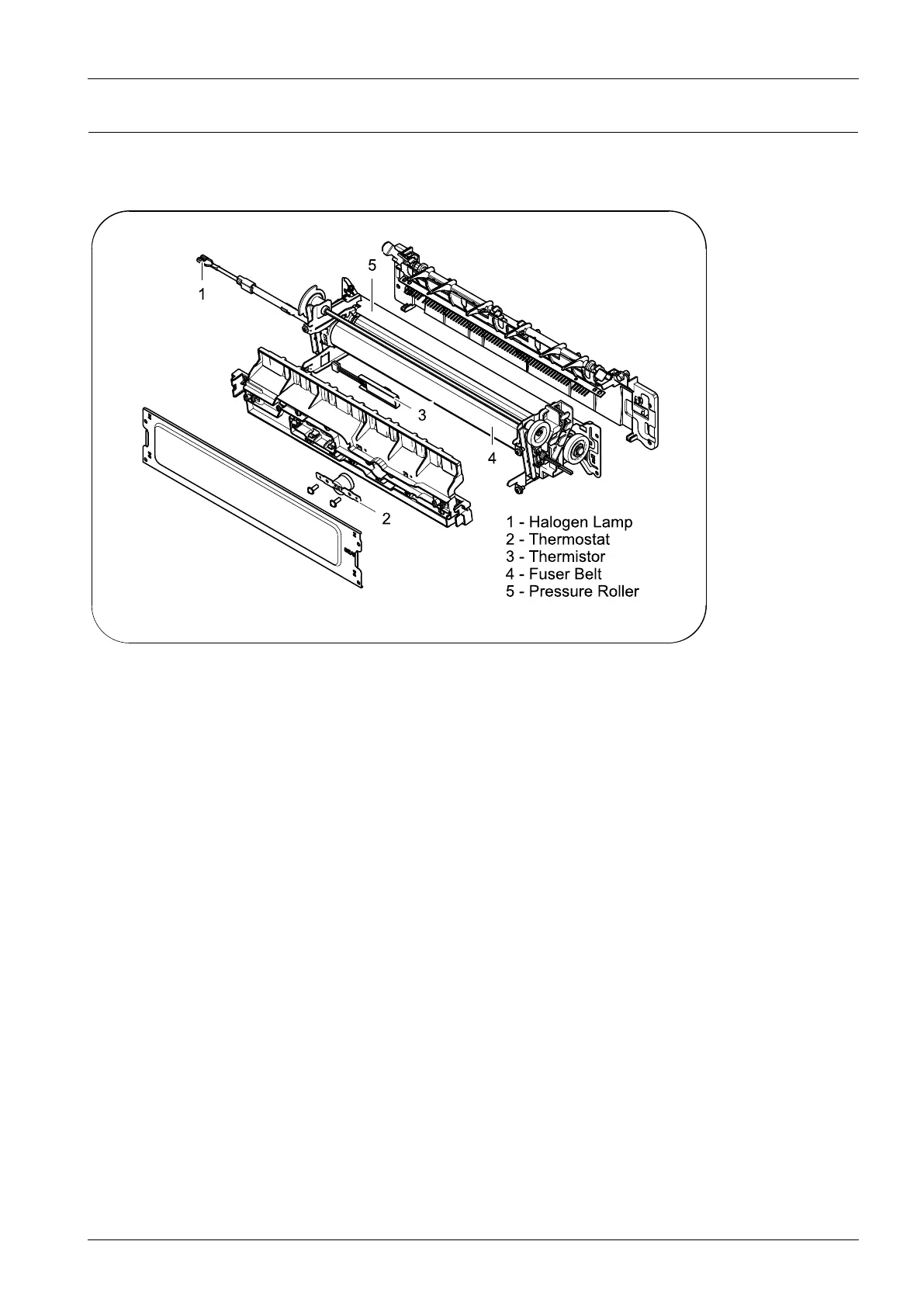

Thisunitconsistsofahalogenlamp,afuserbelt,aThermostat,andThermistor,etc.Itfusesthetonerthatwastransferredby

thetransferrollerontothepaper,byapplyingacombinationofheatandpressuretocompletefusingprocess.

1)Thermostat

Whenaheatlampisoverheated,aThermostatcutsoffthemainpowertopreventover-heating.

•ThermostatType:Non-ContacttypeThermostat

•ControlTemperature:195°C±5°C

2)Thermistor

Itisatemperaturedetectingsensor.

•TemperatureResistance:7kΩ(180°C)

3)FusingBelt

Thefusingbeltgetsheatfromthehalogenlampandtransferittotonerandpaper.Thethinfusingbeltreduceswarming

uptimeandmodechangingtime.

4)Pressureroller

Thepressurerollerisarubberrollerwhichensurespropernipwidthbetweenthepressurerollerandfusingbelt.Itis

drivenbythedrivingsystemanddrivesthefusingbelt.

5)HalogenLamp

•V oltage:120V(115±5%)/220V:230±5%

•Capacity:850Watt±25W
