2.ProductSpecicationsandDescription
2.5.2.TonerCartridge

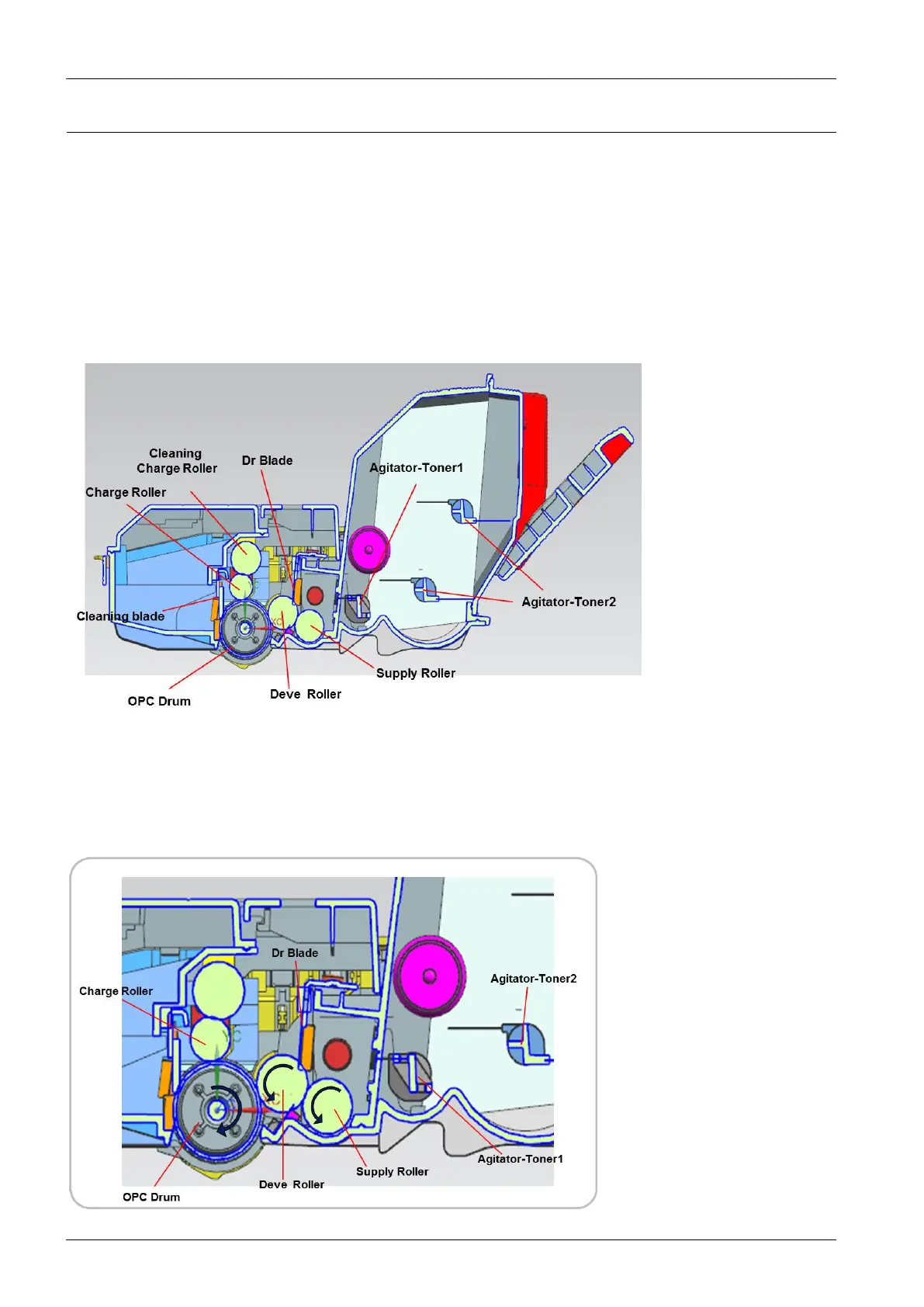

Thetonercartridgeasintegratedtypeconsistsofthetonerbottle,drumunitanddevelopmentunit.
TheOPCdrumdiameteris24.03mm(circumference:about75.4mm)./Deverollerdiameteris14.07mm(circumference:
about37mm).
Thetonercartridgeusesnonmagnetic1elementshattertypetoner,theremainingtonerisdetectedbyCRUMasDot
Countmethod.
Aftertheimageismovedtotransferroller,theremainingtonerontheOPCdrumisremovedbythecleaningblade.
TheCRUMchipintonercartridgestoresinformationlikeaserialnumber,count.
Development
ThetonerissuppliedtotheAgitator-Toner1bytheAgitator-Toner2andmovesfromthesupplyrollertodeveroller.
AfterthesuppliedtonerondeverollerexitsfromtheDr.blade,itformsadeveloperbrush.Thentonerisattractedtothe
surfaceoftheOPCdrumonlyinareasthecorrespondstotheimagearea.
