Samsung RF4287HARS/XAA - 3-2) Refrigerator Door

29

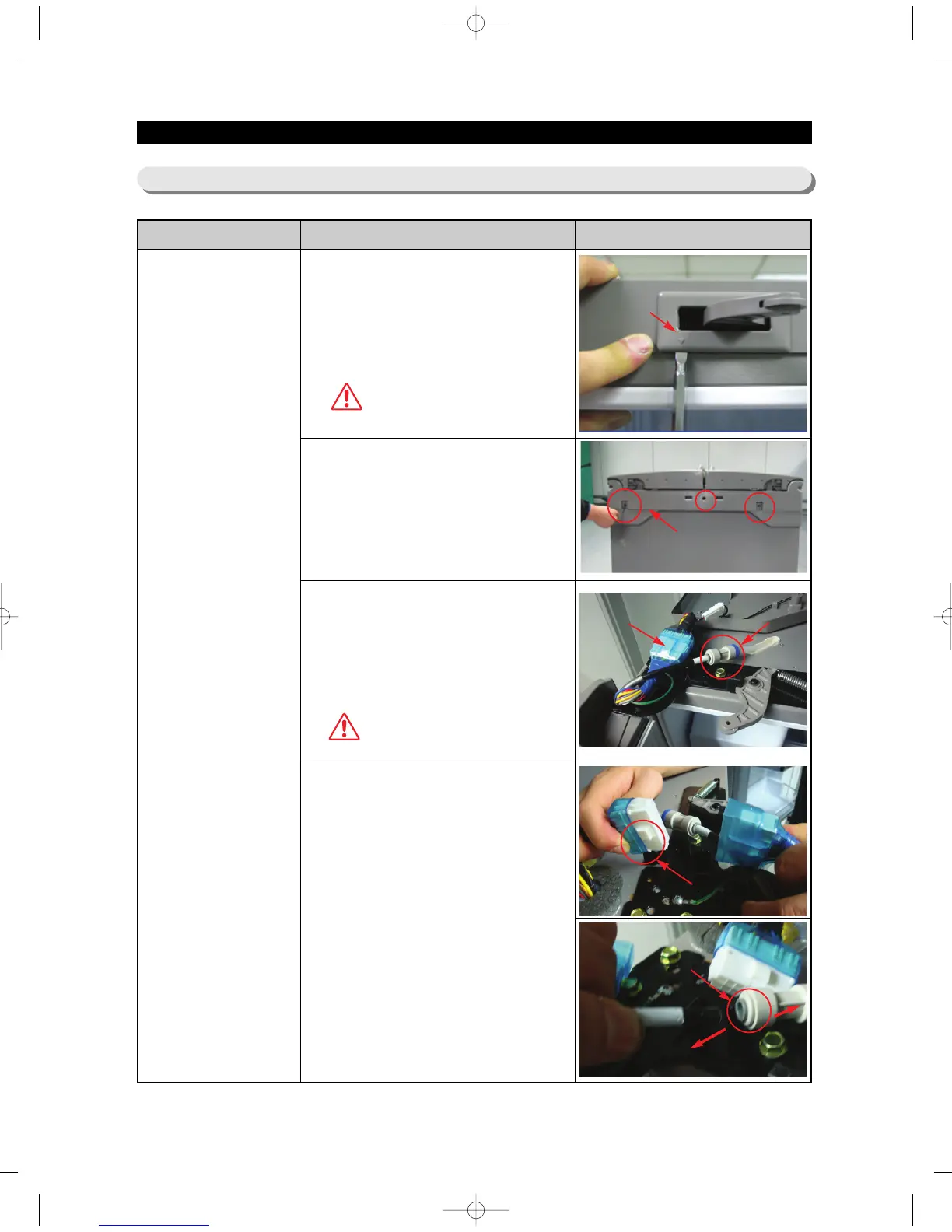

3-2) Refrigerator Door
DISASSEMBLY AND REASSEMBLY
Refrigerator
Door
Part Name How To Do Descriptive Picture
1. With the door opened, remove
the Cap Top Table(󱀊) with a Flat
head screwdriver, and close the
door.
4. Disconnect the water tube (󱀎)
by pulling the tube fitting(󱀏)
apart as shown in the picture.
3. Disconnect the electrical
connector(󱀌) above the upper
left door hinge To disconnect the
connector(󱀌) more easily, press
the end of the hook(󱀍) and pull
connector.
2. Remove the 3 screws holding
down the Top Table and remove
the Top Table(󱀋).
󱀊
󱀋
󱀌
󱀍
󱀏
󱀎
Be careful not to scratch or
break the parts
CAUTION
Before doing the above,
make sure that the unit is
plugged out.
CAUTION
