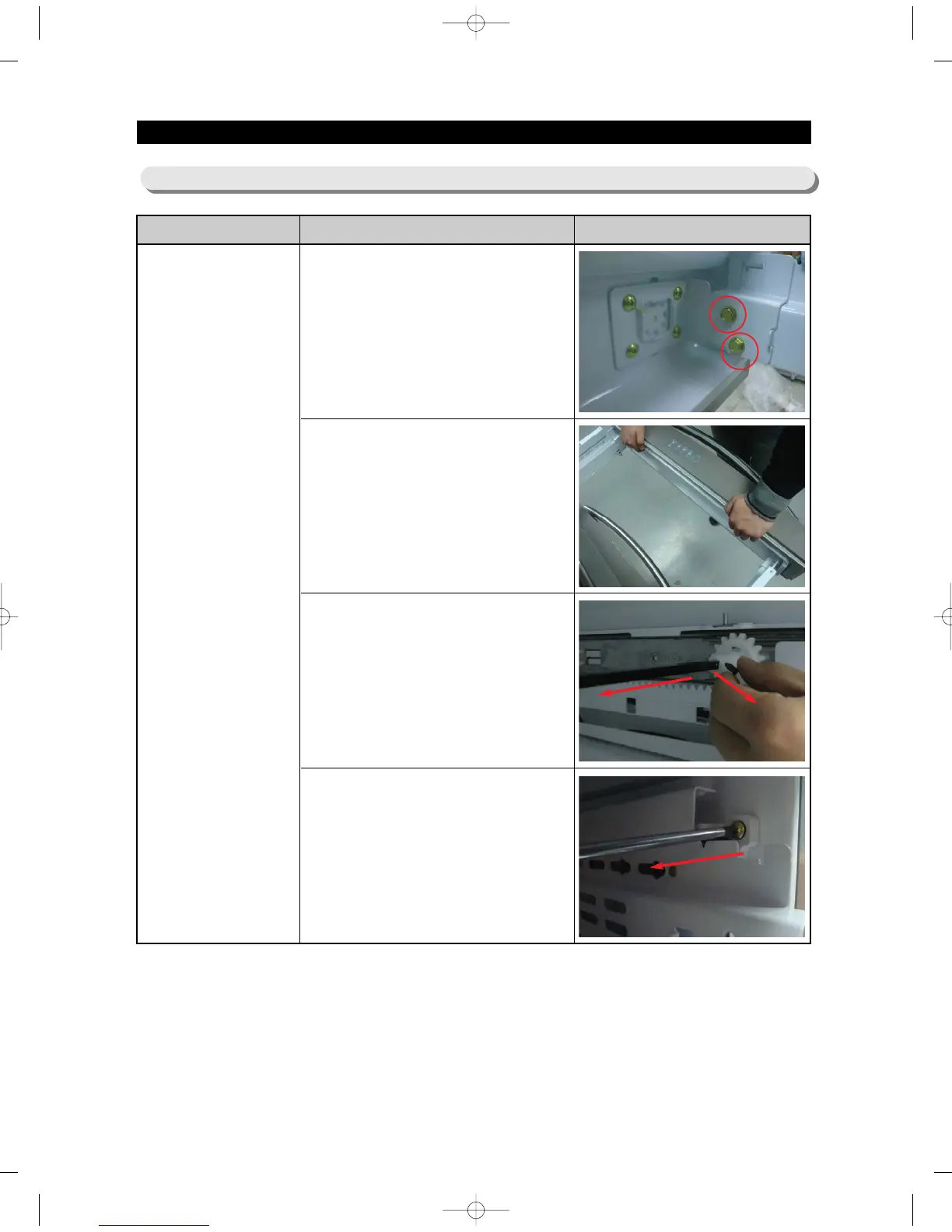

DISASSEMBLY AND REASSEMBLY
3-21) Flex Zone Door
Mid drawer
Part Name How To Do Descriptive Picture
4. Unscrew 4 bolts.
(2 bolts each on the both sides)
5. Lifting up the convertible door.
remove the convertible door
from the rail.
6. Remove the shaft gear(󱀋) by
pull the pin(󱀋) out.
7. Remove the screw and pull out
The rail.
󱀋
󱀌
󱀊
