Samsung RF4287HARS/XAA - 3-12) Case Water Filter

38
DISASSEMBLY AND REASSEMBLY

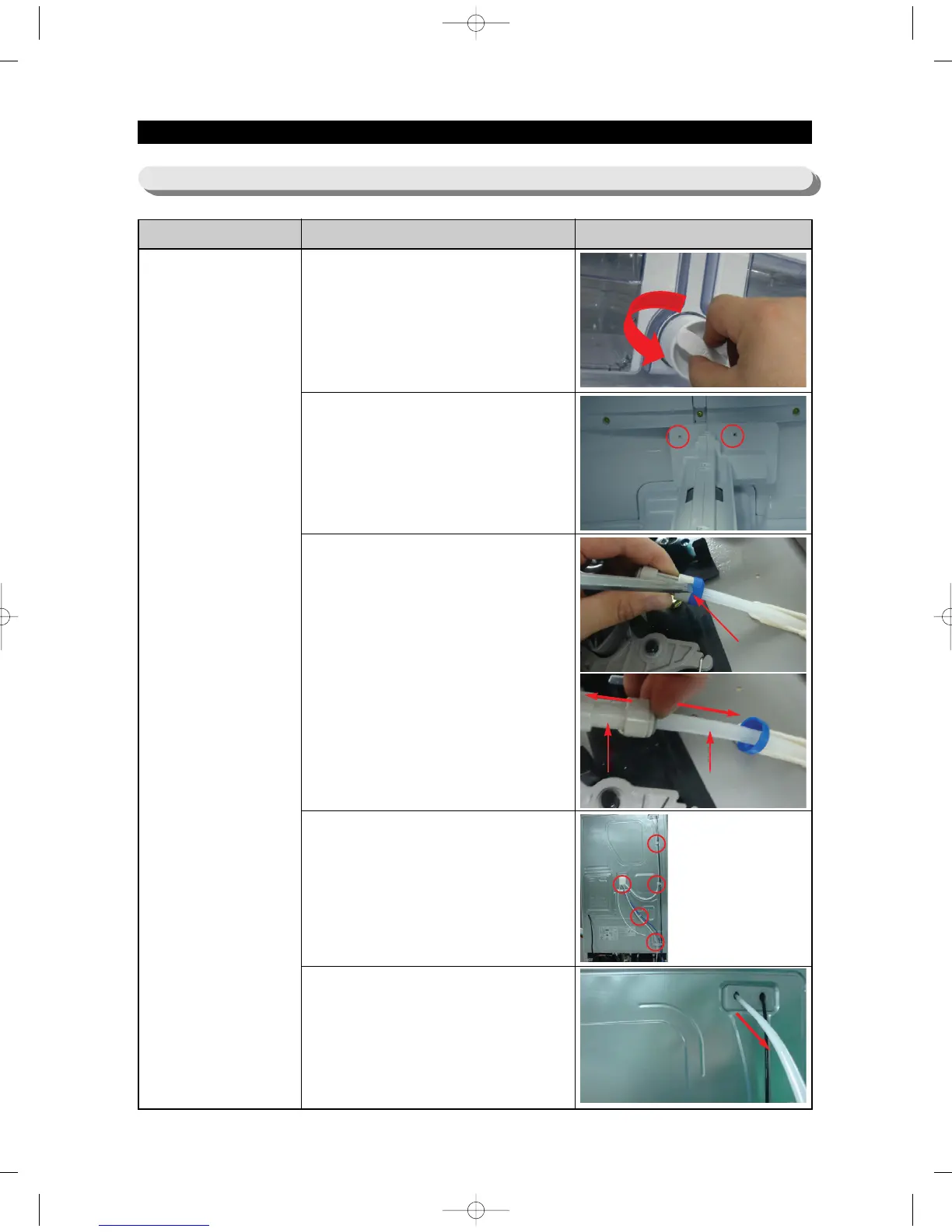

3-12) Case Water Filter
3-12) Case Water Filter
Case Water Filter
Part Name How To Do Descriptive Picture
Before disassembling the Case
Water Filter take out water filter
and drawers and shelves located
on the Case Water Filter.
(Refer to the “Vegetable & Fruit
Shelf”)
1. Remove 2 screws.
2. a. Disconnect the water fixer
tube(1) on left top table.(Refer
to the “Refrigerator door”)
push the flat-blade driver
between fixer tube(󱀊) and
tube fitting(󱀋).
b. Disconnect the water tube(󱀌)
by pulling the tube fitting(󱀋).
3. Turn the refrigerator back and
remove 4 screws and lose 5
hoses.
4. Pull the hose out.
󱀊
󱀋󱀌
