Samsung SBB-IS08E - Remote Control (SBB-IS08 E Model Only); Cable Connection

13
Remote Control (SBB-IS08E model only)
Cable Connection

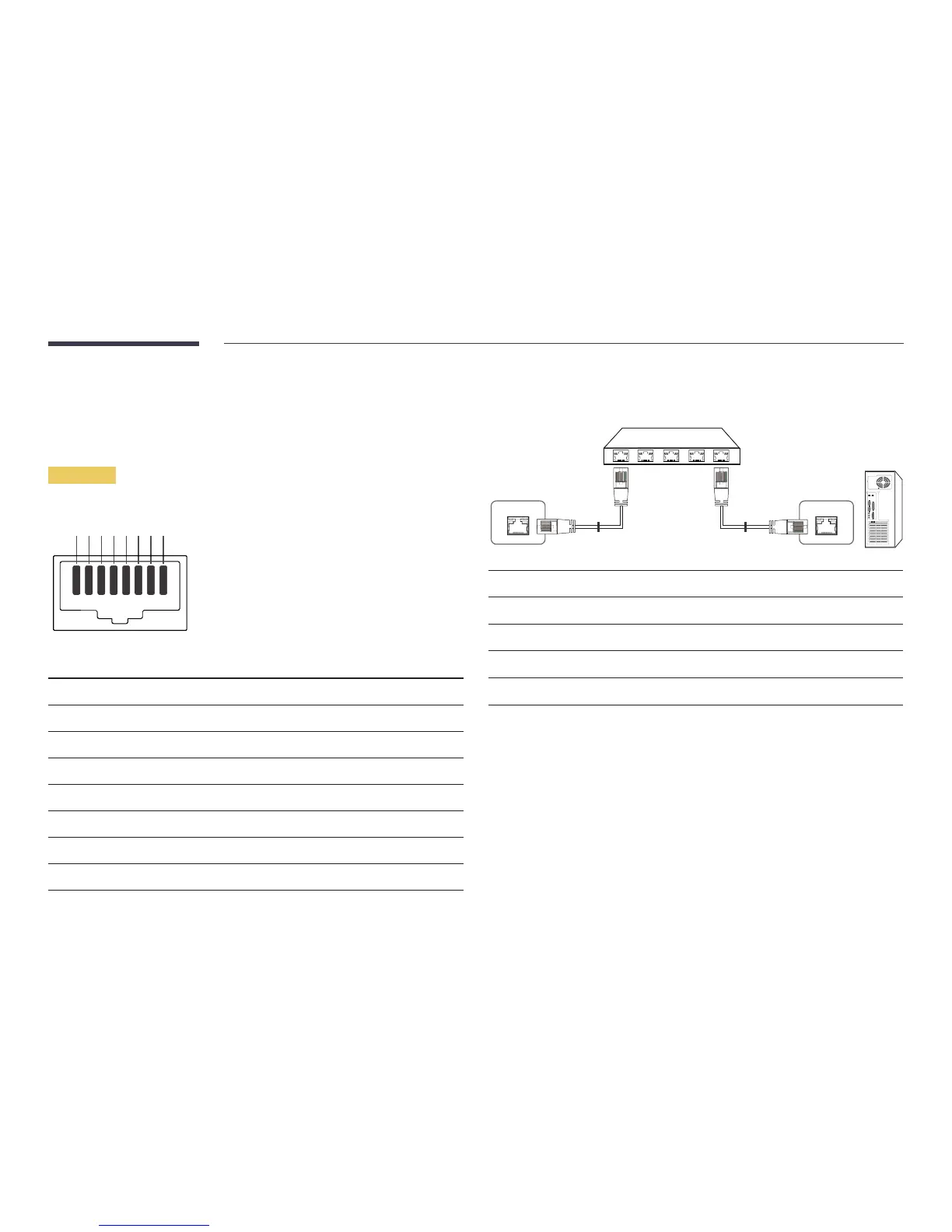

LAN Cable
•
Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
•
Connector : RJ45
Direct LAN cable (PC to HUB)
RJ45 RJ45 MDC
HUB
P1
P1P2
P2
Signal
P1 P2 Signal
TX+
1 <--------> 1 TX+
TX-
2 <--------> 2 TX-
RX+
3 <--------> 3 RX+
RX-
6 <--------> 6 RX-
