Disassembly and Reassembly
4-12 Samsung Electronics
ΠDESOLDER
¨ REMOVE THE ASS'Y CAMERA FROM THE MAIN PCB
IN THE DIRECTION OF ARROW.
´ REMOVE 2 SCREWS.
ˇ DISCONNECT 3 FPC
FROM THE MAIN PCB.

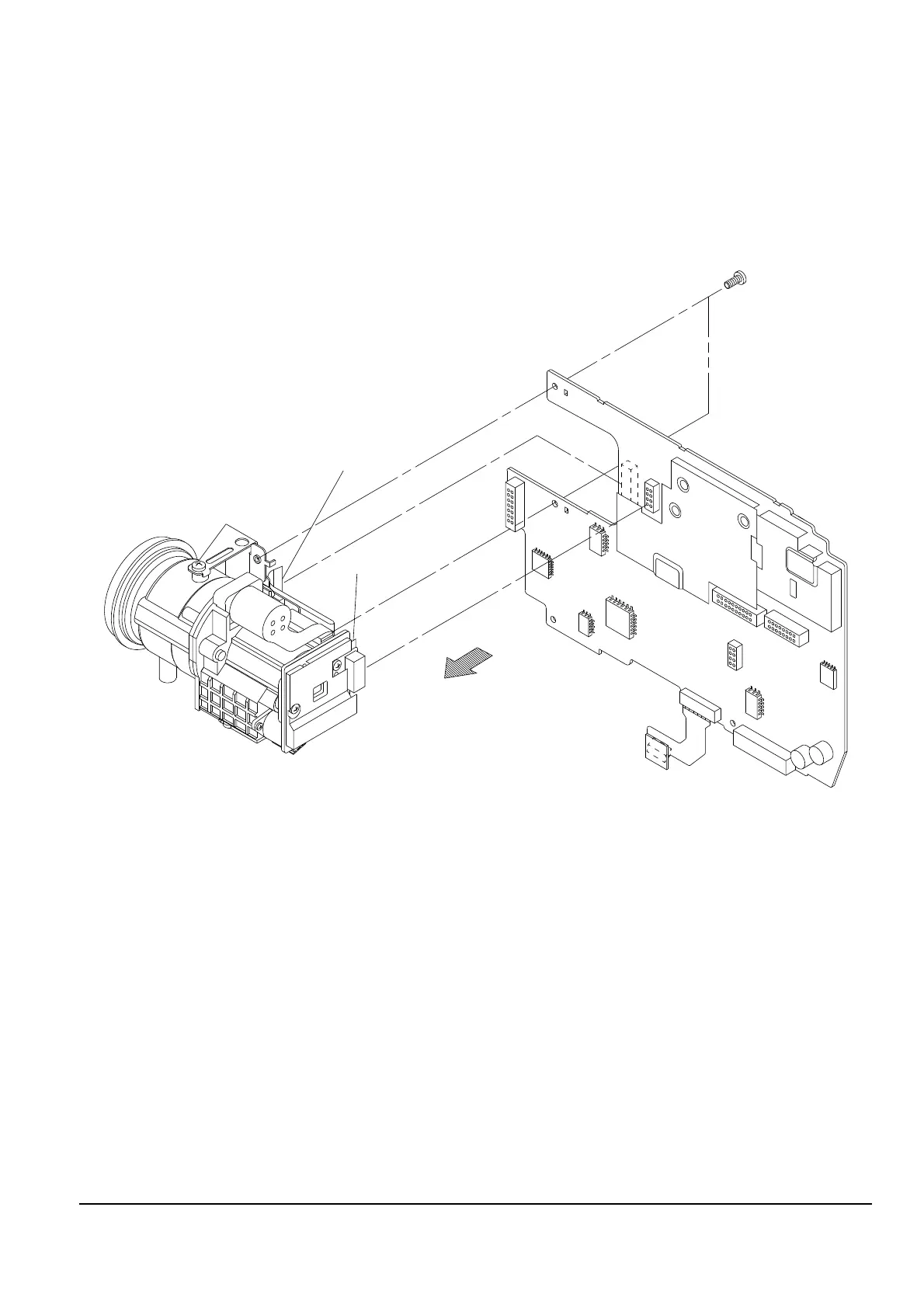

4-1-12 Ass’y Camera Removal (1)
Fig. 4-12 Ass’y Camera Removal (1)
