ΠREMOVE 1 SCREW
ˇ REMOVE 3 SCREWS
´ REMOVE 2 SCREWS
ˆ REMOVE THE ASS'Y CASE RIGHT IN THE DIRECTION OF ARROW "B".
¨ MOVE THE ZOOM SWITCH IN
THE DIRECTION OF ARROW "A".
4-1-6 Ass’y Case Right Removal

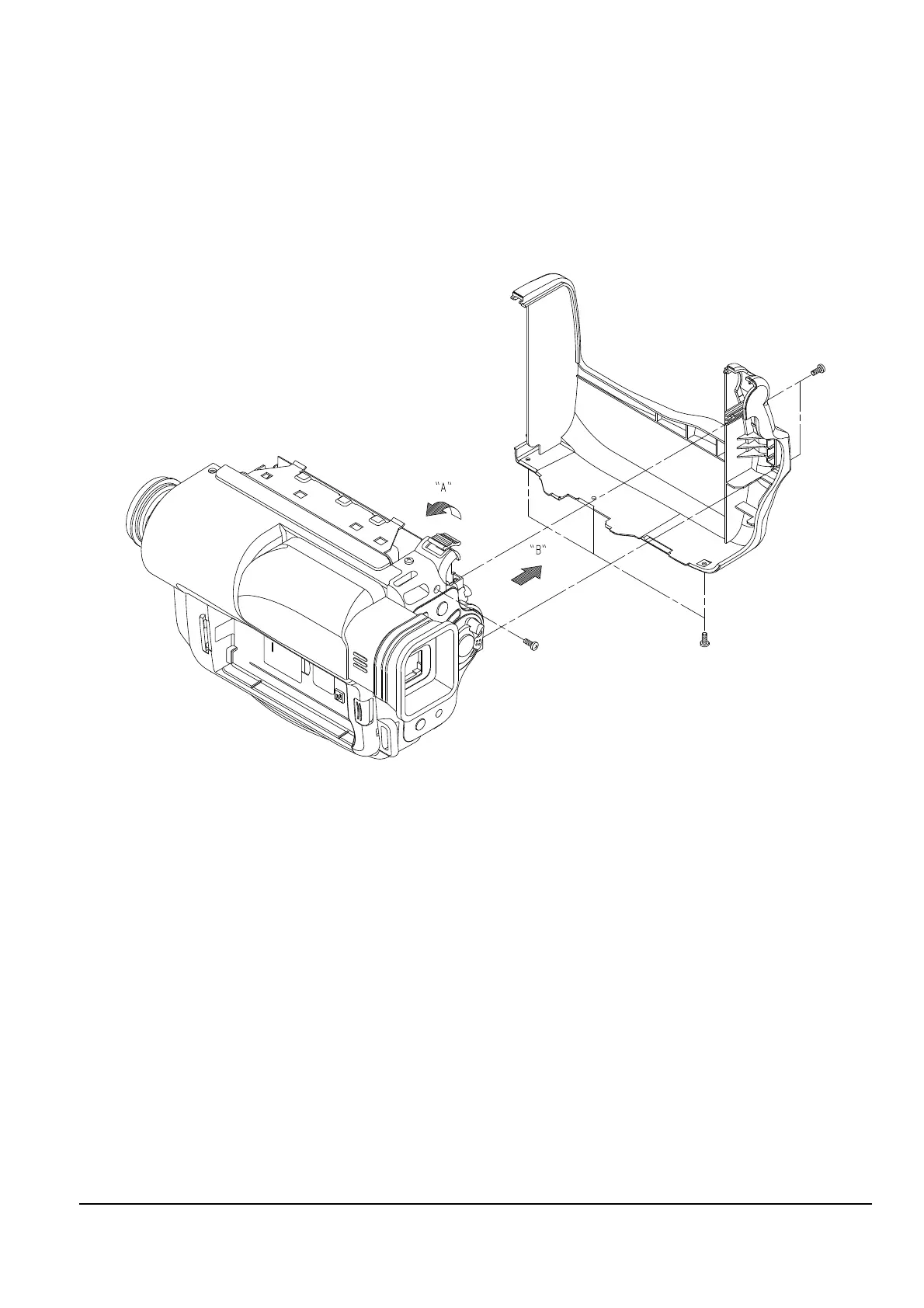

Fig. 4-6 Ass’y Case Right Removal (1)
