Disassembly and Reassembly
Samsung Electronics 4-5
ΠREMOVE 2
SCREWS.
´ DISCONNECT THE CONNECTOR FROM THE ASS'Y MIC BOARD.
ˇ REMOVE THE ASS'Y MIC
¨ REMOVE 2 SCREWS AND
THE ASS'Y MIC BOARD.
ˆ REMOVE 1 SCREW AND THE COVER ROTATE BY TURNING IT.
4-1-5 Assy Front Removal (2)

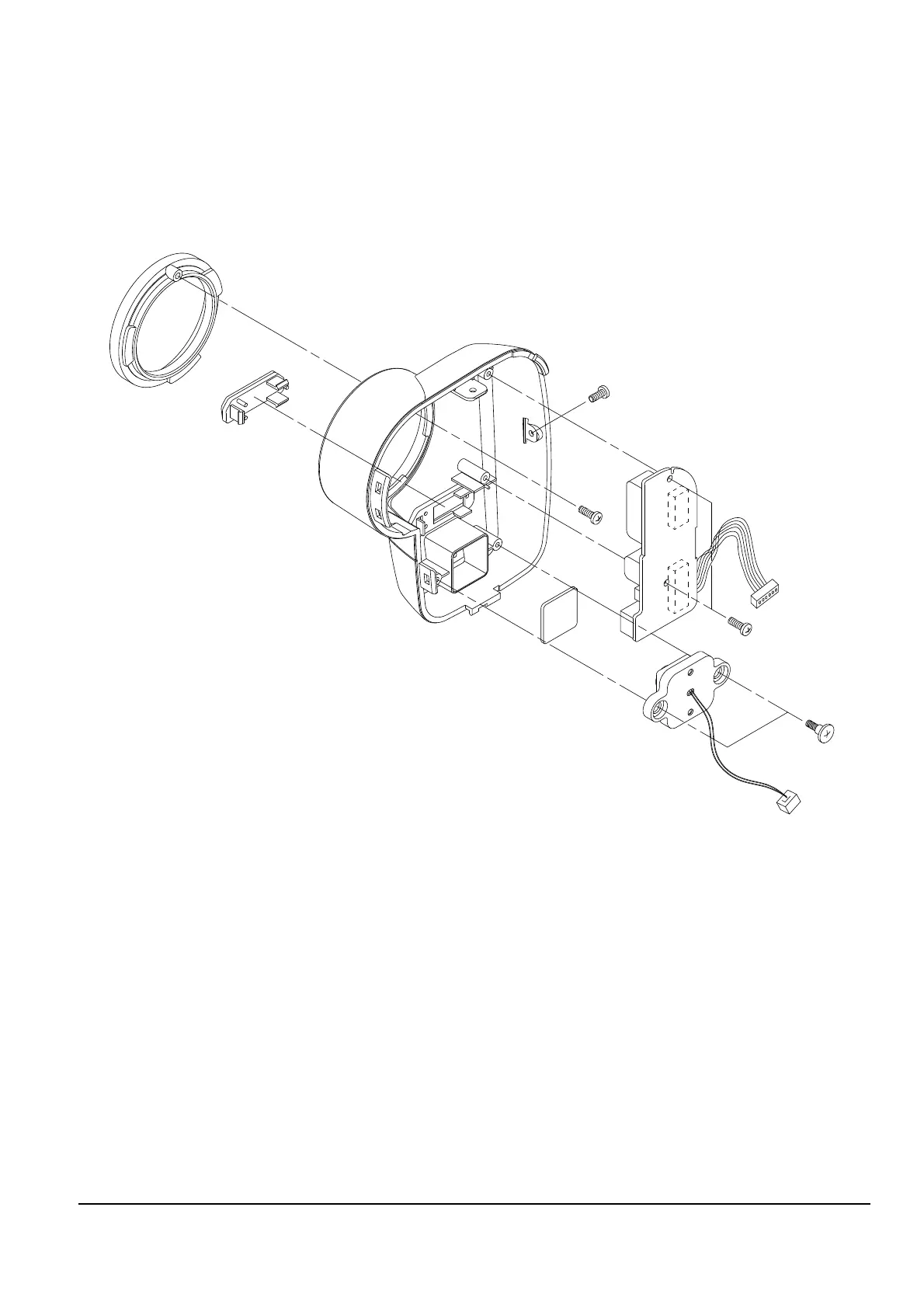

Fig. 4-5 Assy Front Removal
