Samsung Electronics4-6
Disassemblr and Reassembly
4-1-6 Ass’y EVF/CVF Removal
1
REMOVE 2 SCREWS.
A
A
2
REMOVE 3 SCREWS.
3
REMOVE THE EVF/CVF ASS'Y IN THE DIRECTION OF ARROW.
2

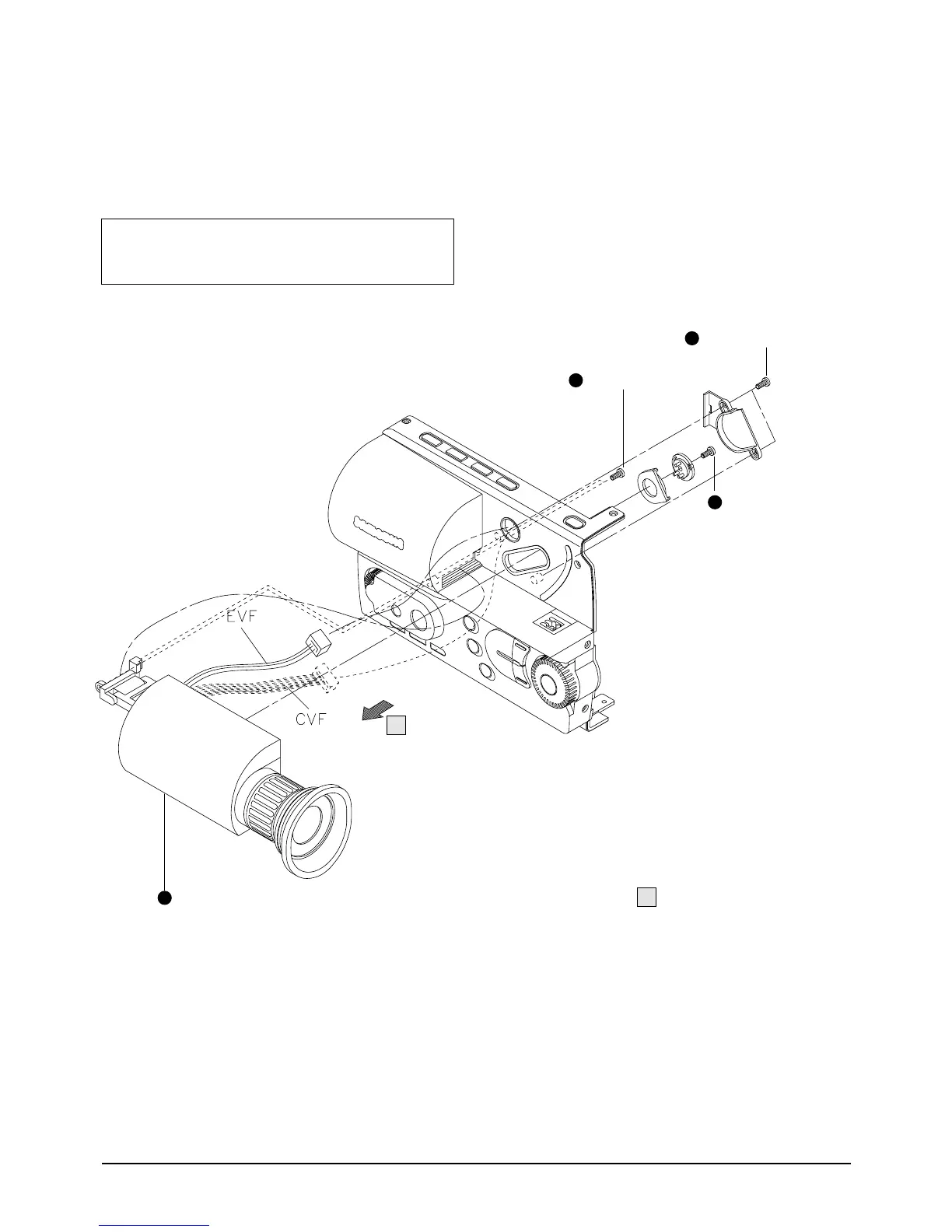

Fig. 4-6 Ass’y EVF/CVF Removal
Caution of assembling (CN604 of the CVF models) :
Insert the cable to the left most side of CN604
(Pin no.1 side)
