Disassemblr and Reassembly
4
REMOVE THE CASE LEFT
ASSEMBLY IN THE DIRECTION
OF ARROW.
1
REMOVE 2 SCREWS.
REMOVE 1 SCREWS.
2
2
3
REMOVE 2 SCREWS.
A
A
4-1-5 Ass’y Case Left Removal

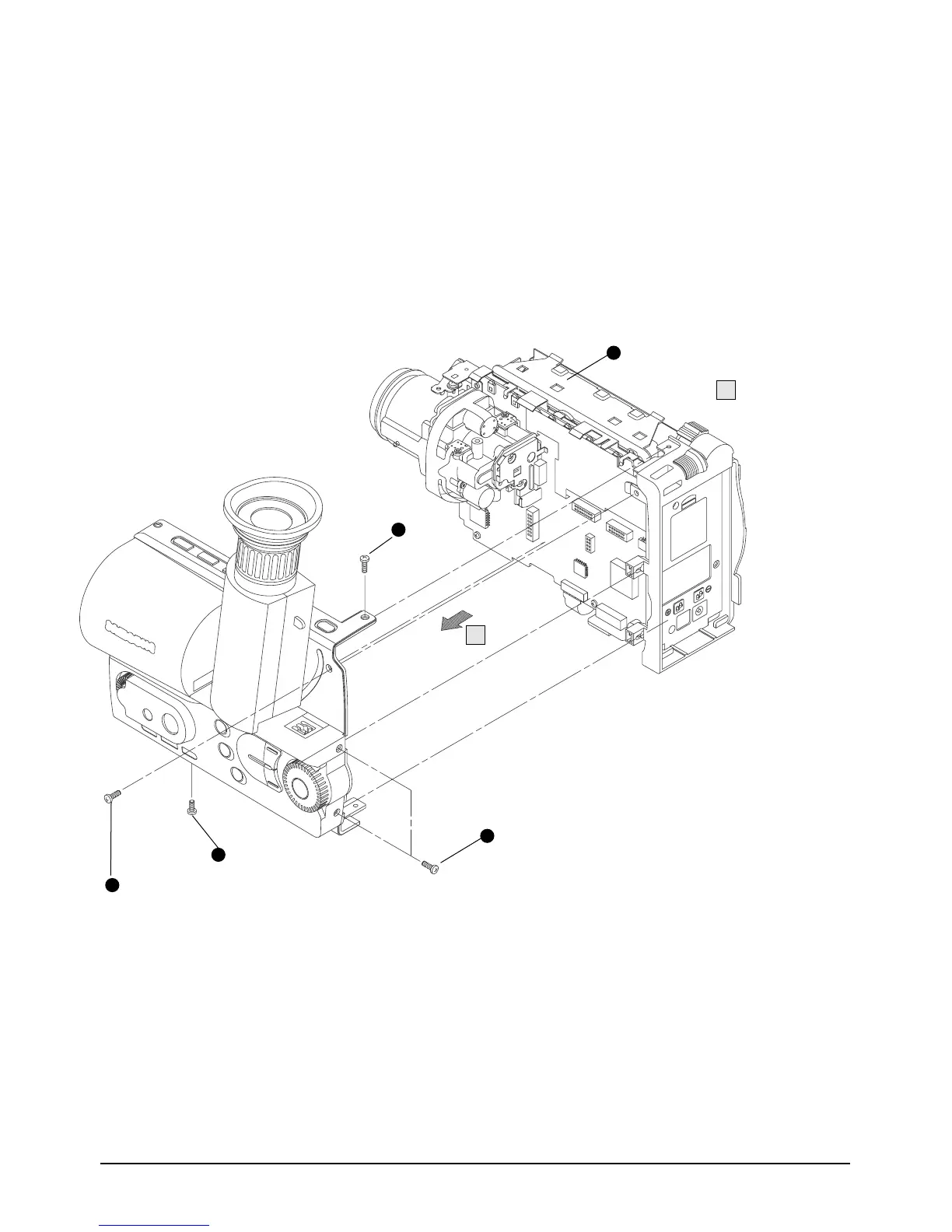

Fig. 4-5 Ass’y Case Left Removal
