Samsung SCA30 - Page 11

Samsung Electronics4-4
Disassemblr and Reassembly
4-1-4 Ass’y Case Right Removal
1
REMOVE 3 SCREWS.
REMOVE THE UNIT CASE
IN THE DIRECTION OF ARROW.
DISASSEMBLE AFTER TURNING
KNOB to be "LOCK".
1
1
2
A
A

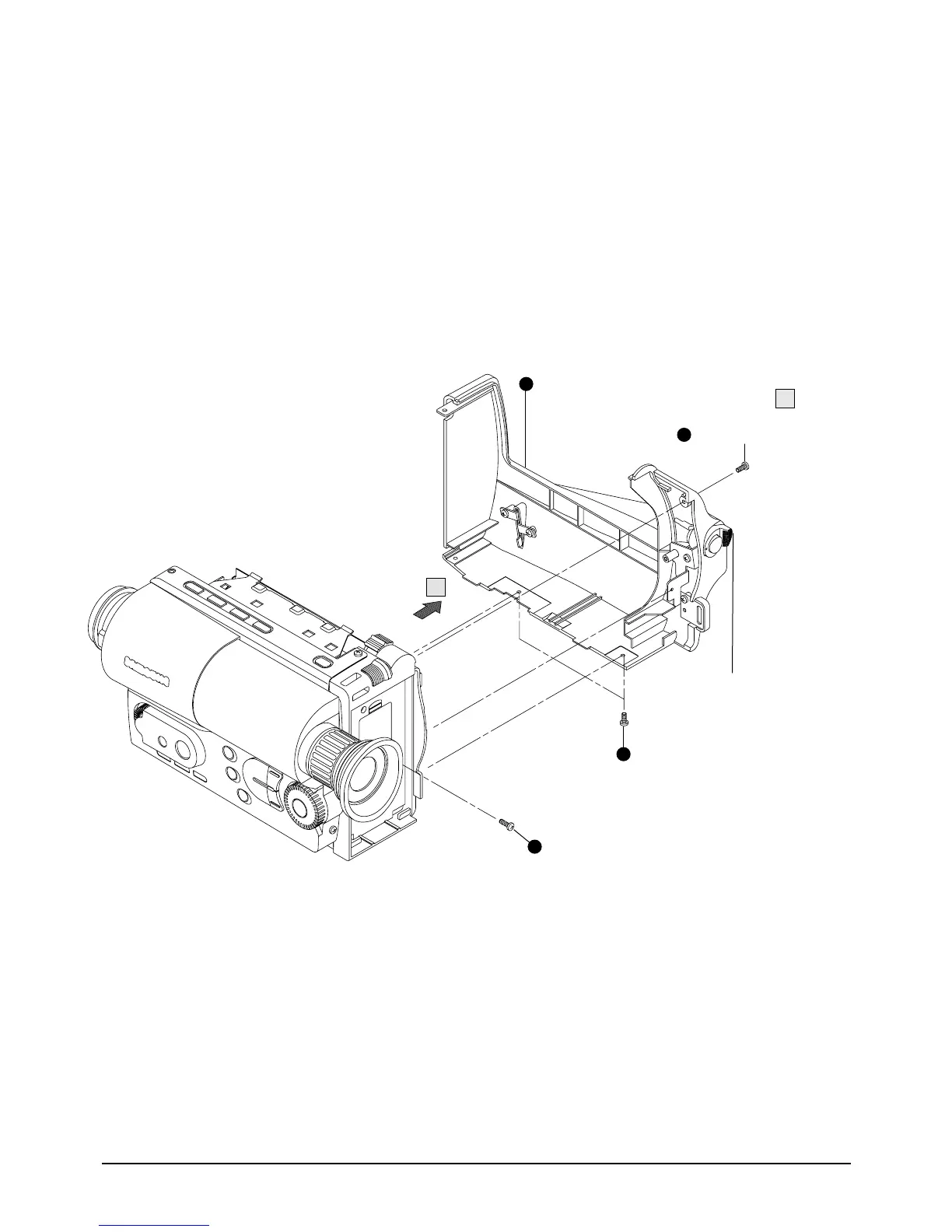

Fig. 4-4 Ass’y Case Right Removal
