Samsung SCA30 - Page 10

Samsung Electronics 4-3
Disassemblr and Reassembly
1
1
1
1
REMOVE 4 SCREWS.
3
DISCONNECT THE FPC
FROM THE CN702 OF ASS'Y
AUDIO BOARD.
2
REMOVE THE ASS'Y FRONT IN
THE DIRECTION OF ARROW.
B
A
A B
4-1-3 Ass’y Front Removal

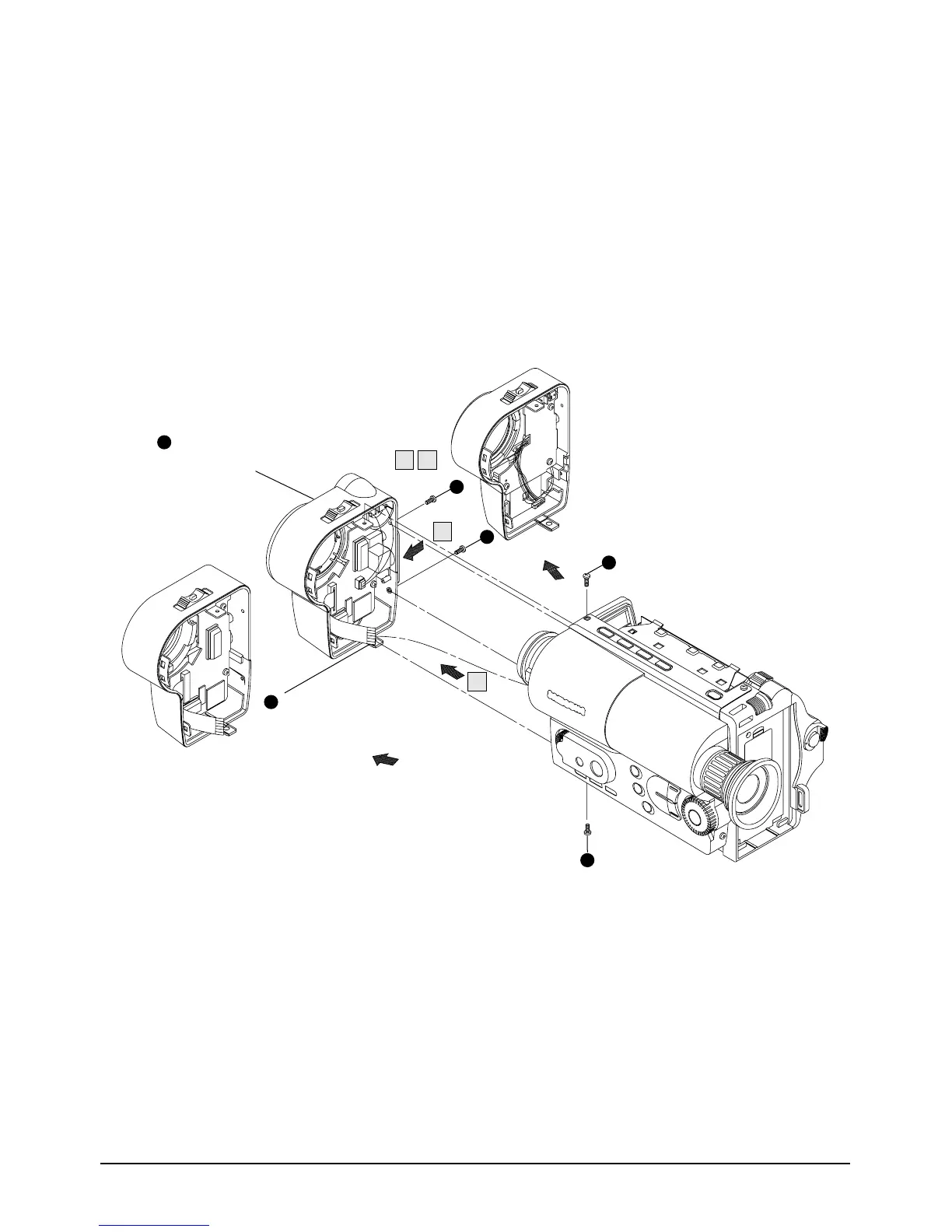

Fig. 4-3 Ass’y Front Removal
