Samsung Electronics4-2
Disassemblr and Reassembly
4-1-2 Ass’y Case Top Removal
1
REMOVE ASS'Y CASE TOP BY GENTLELY RELEASING
2 LOCKING TABS WITH A SMALL SCREW DRIVER.
(SEE DETAIL "A")
REASSEMBLY : PUT THE 7 TABS INTO THE SLOT,
WHILE SLIDING IT AS SHOWN IN DETAIL "B".
2 LOCKING TABS
PRECISION
SCREW DRIVER
< DETAIL "A" >
"B"
< DETAIL "B" >

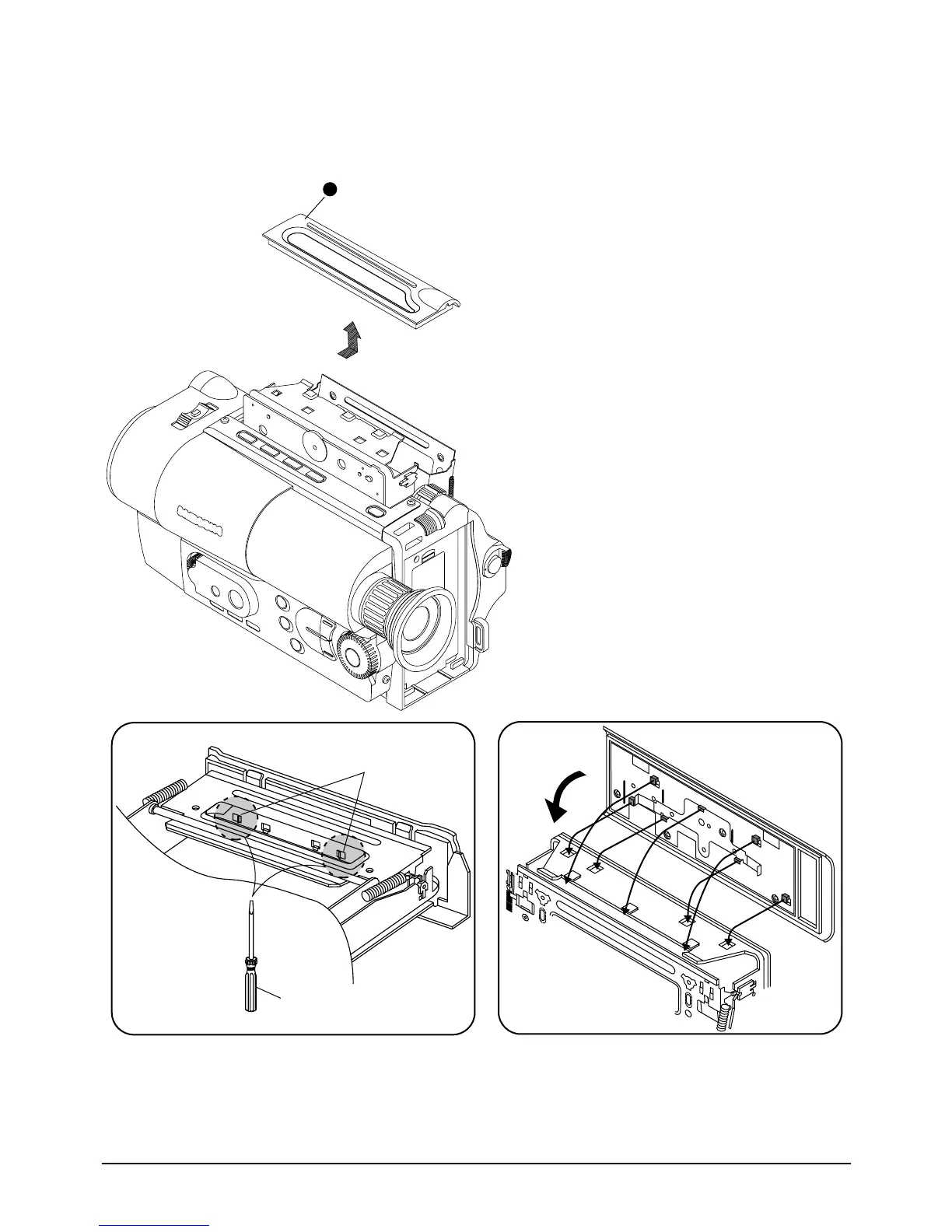

Fig. 4-2 Ass’y Case Top Removal
