Samsung Electronics 5-23
Alignment and Adjustment
15. B-Y Positive Hue
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.

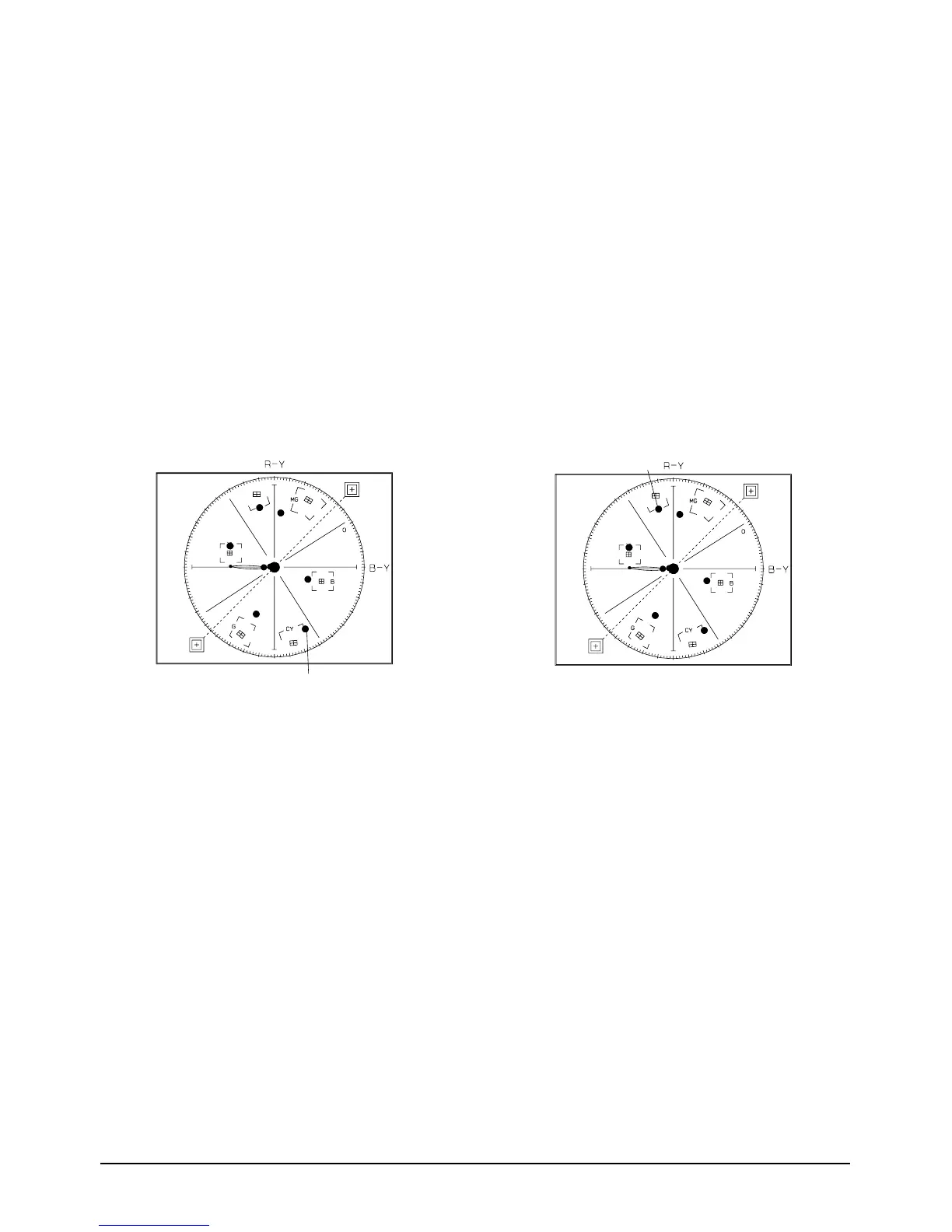

3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.
4) Press the “DATE/TIME(MODE UP)/TITLE
(MODE DOWN)” button so that the
OSD state is “14D XX XX”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “C/RESET(DATA UP)/Z/RTN
(DATA DOWN)” button so that the cyan
vector is 284.
7) Be sure to press the “MENU/ENTER (CON-
FIRM)” button to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
16. B-Y Negative Hue
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.
4) Press the “DATE/TIME(MODE UP)/TITLE
(MODE DOWN)” button so that the
OSD state is “14E XX XX”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “C/RESET(DATA UP)/Z/RTN
(DATA DOWN)” button so that the red vector
is 104.
7) Be sure to press the “MENU/ENTER(CON-
FIRM)” button to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
