Alignment and Adjustment
12. B-Y Negative Gain

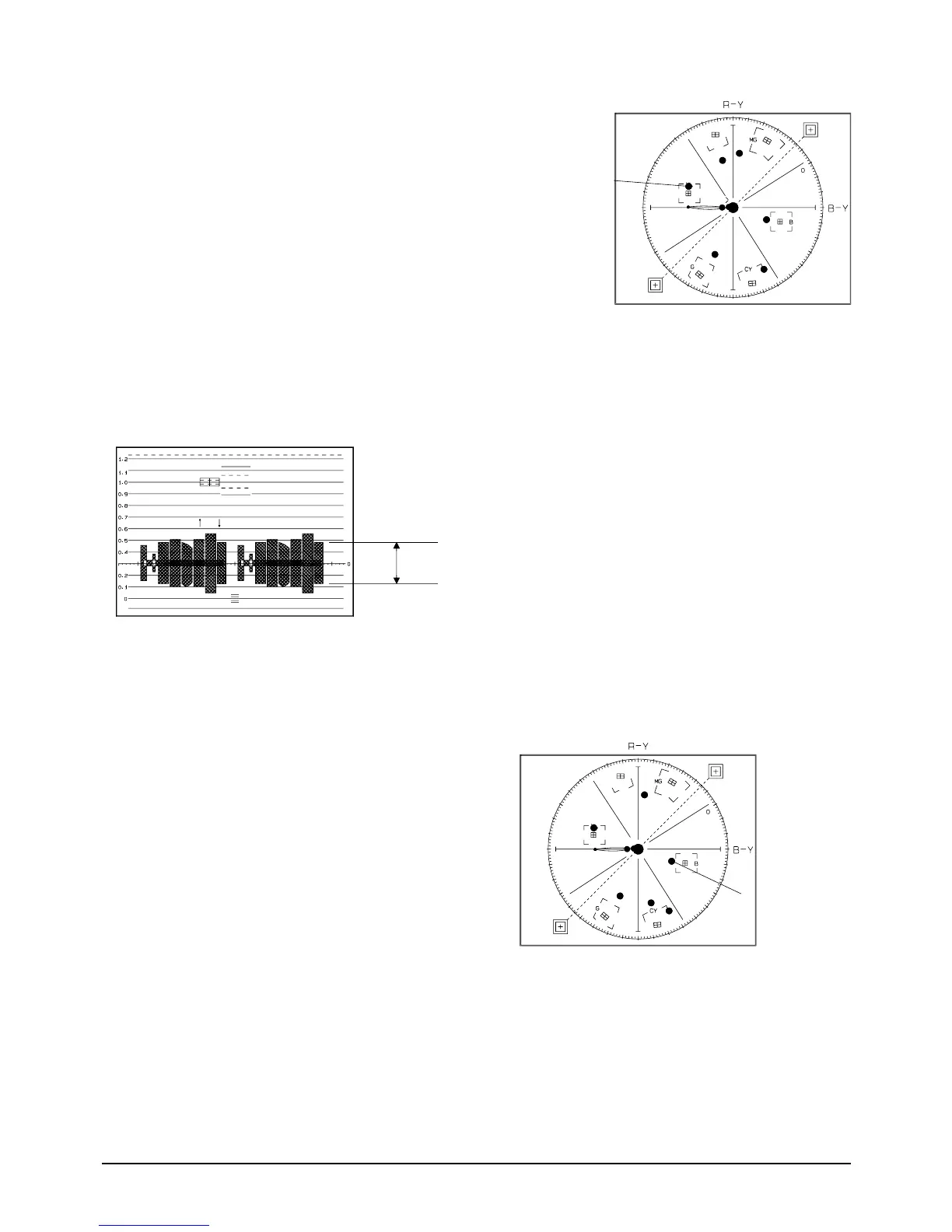

1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to waveform moni-
tor input jack and monitor TV jack respectively.
4) Press the “DATE/TIME(MODE UP)/TITLE
(MODE DOWN)” button so that the
OSD state is “14C XX XX”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “C/RESET(DATA UP)/Z/RTN
(DATA DOWN)” button so that the yellow level
is 50IRE.
7) Be sure to press the “MENU/ENTER(CON-
FIRM)” button to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
13. R-Y Positive Hue
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.
4) Press the “DATE/TIME(MODE UP)/TITLE
(MODE DOWN)” button so that the
OSD state is “149 XX XX”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “C/RESET(DATA UP)/Z/RTN
(DATA DOWN)” button so that the yellow vec-
tor is 165.
7) Be sure to press the “MENU/ENTER (CON-
FIRM)” button to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
14. R-Y Negative Hue
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.
4) Press the “DATE/TIME(MODE UP)/TITLE
(MODE DOWN)” button so that the
OSD state is “14A XX XX”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “C/RESET(DATA UP)/Z/RTN
(DATA DOWN)” button so that the blue vector
is 346.
7) Be sure to press the “MENU/ENTER (CON-
FIRM)” button to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
