14_ introduction
introduction
English English _ 15
INSTALLING YOUR CAMERA
Camera Wiring Interface Board
· RS485 Communications
Camera
Controller
or DVR
Control Signal Connection
485+
485-
R+/RX+
R-/RX-
The maximum power capacity of the built-in relay is 30V DC/2A, 125V AC/0.5A, and
250V AC/0.25A.
Connecting the power connector and GND incorrectly to the NC/NO and COM ports
may cause a short circuit and fi re, damaging the camera.
M

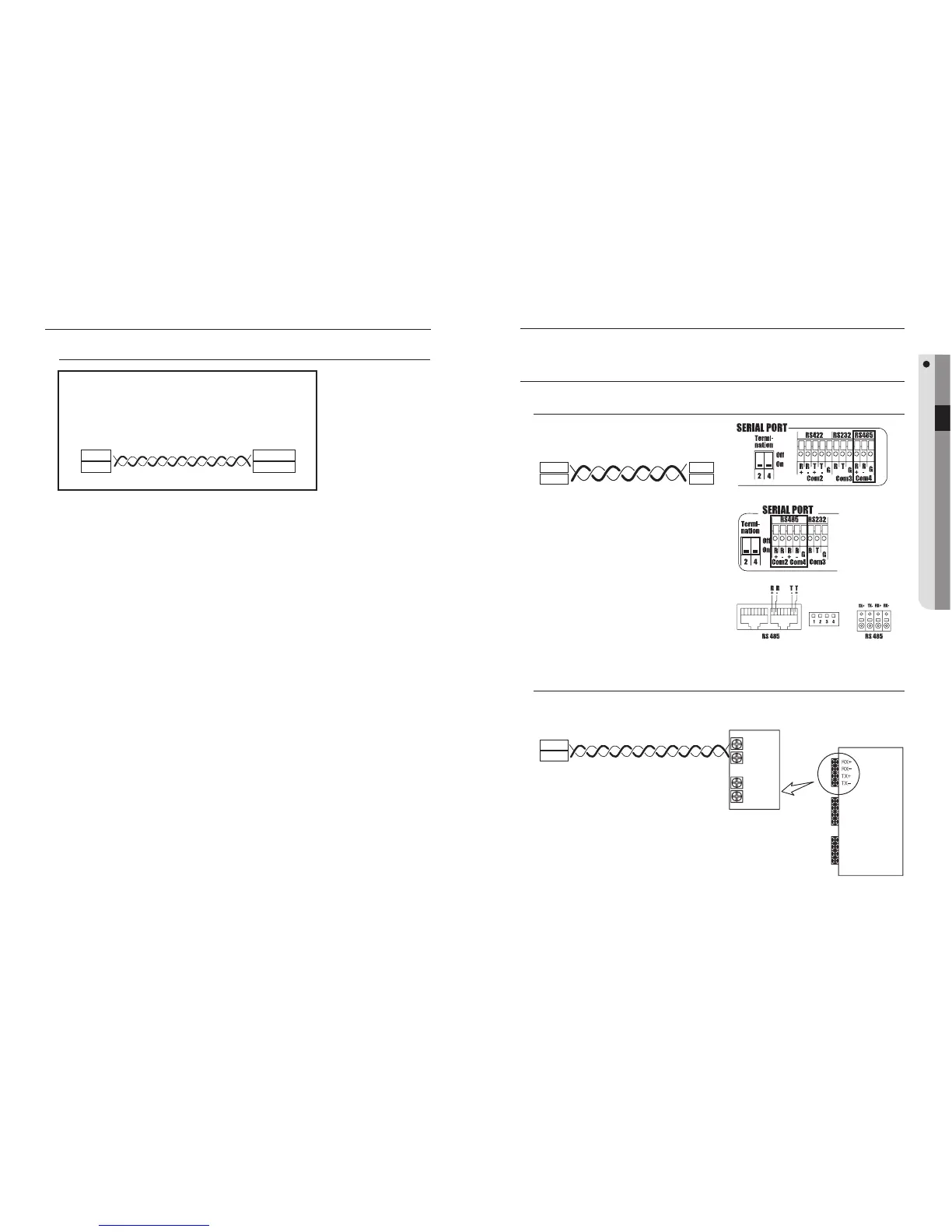

SPEED DOME CAMERA AND APPLIANCES WIRING
DIAGRAM
Connecting with Samsung Techwin’s “Stand Alone DVR”
Connecting with the Samsung Techwin Controller SCC-3100A
· RS-485 :
Camera
Stand Alone
DVR
485+
485-
R+
R-
SVR-1670/1680/1660/1645/960/
*
SVR-945
*
SVR-1650/1640A/950E
*
SVR-940/450
*
· RS-485 :
Camera
SCC-3100A
Data Box PORT1
485+
485-
SCC-3100A Data Box
R+
R-
TX+
TX-
To control this camera via a computer, please contact our After-Sales Service or
Technology Department.
M
installing your camera
