Samsung SCX-4216F Service Manual

5-10
Disassembly and Reassembly
Samsung Electronics
Service Manual
5-7 OPE Unit
1. Before you remove the OPE Unit, you should remove:
- Rear Cover (see page 5-2)
- Side Cover (LH, RH) (see page 5-3)
- Scanner Ass’y (see page 5-5)

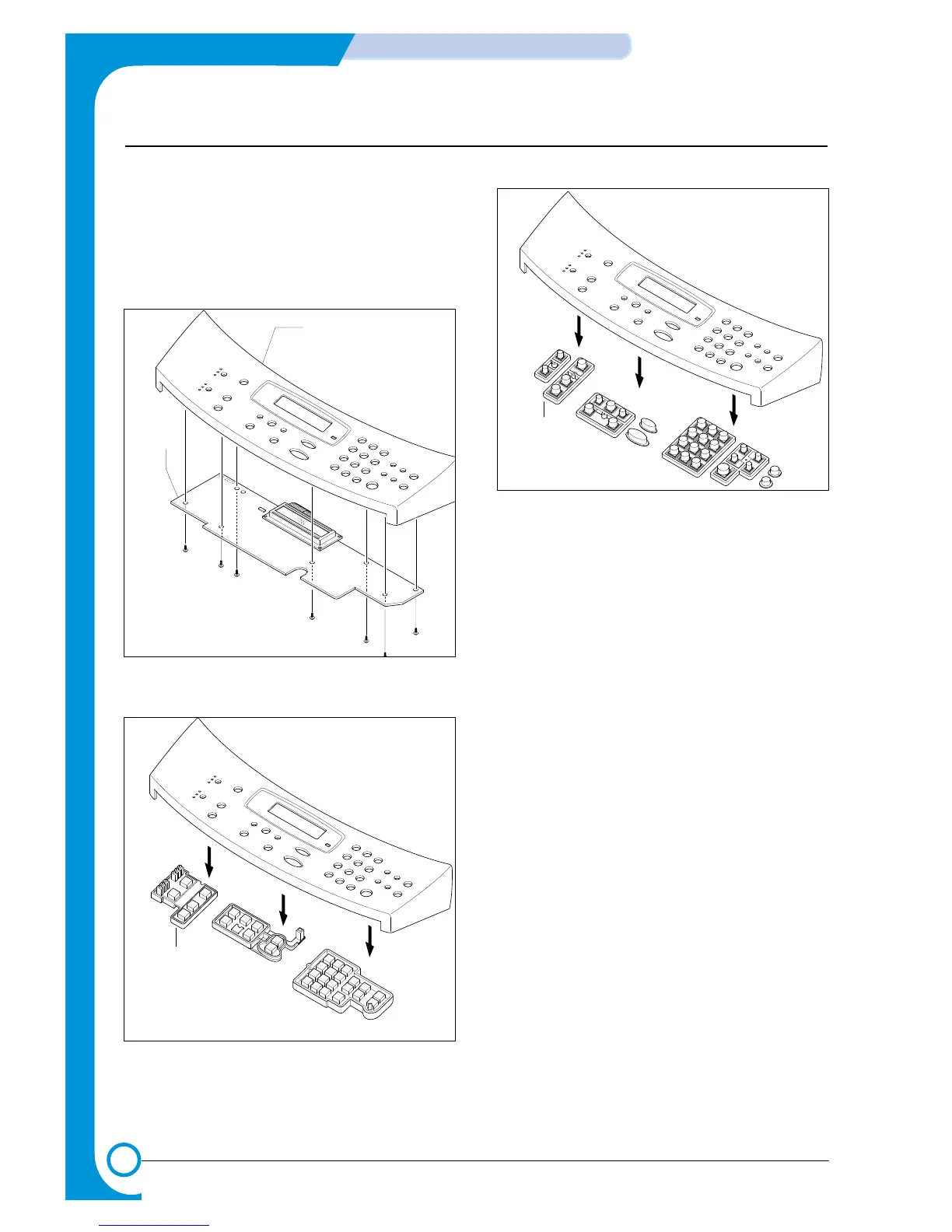

2. Remove the six screws securing the OPE PBA from
the OPE Cover.
3. Remove the Contact Rubber from the OPE Cover.
4. Remove the Key Pad from the OPE Cover.
OPE Cover
OPE PBA
Contact Rubber
Key Pad
