The following 3 Camera ID’s cannot be used.
Camera ID R-SW2 R-SW1
ID = 0 0 0
ID = 160 A 0
ID = 175 A F
Function ON OFF
SW3- #6 Factory Release RS-422 RS-485
Function ON OFF
SW3- #1 Transmission Mode Full Duplex Half Duplex
Selection (DVR) (SCC-16/SCC-3000/3100)
Location of Camera Connection SW3- #2 SW3- #3 SW3- #4 SW3- #5
Termination of Longest Path ON ON ON ON
On the Path OFF OFF OFF OFF
Set the transmission mode using the ON/OFF of the Dip Switch 1.
Function ON OFF
SW3- #7 Factory Release Always OFF
Function ON OFF
SW3- #8 PC Communication RS-232 RS-485/422

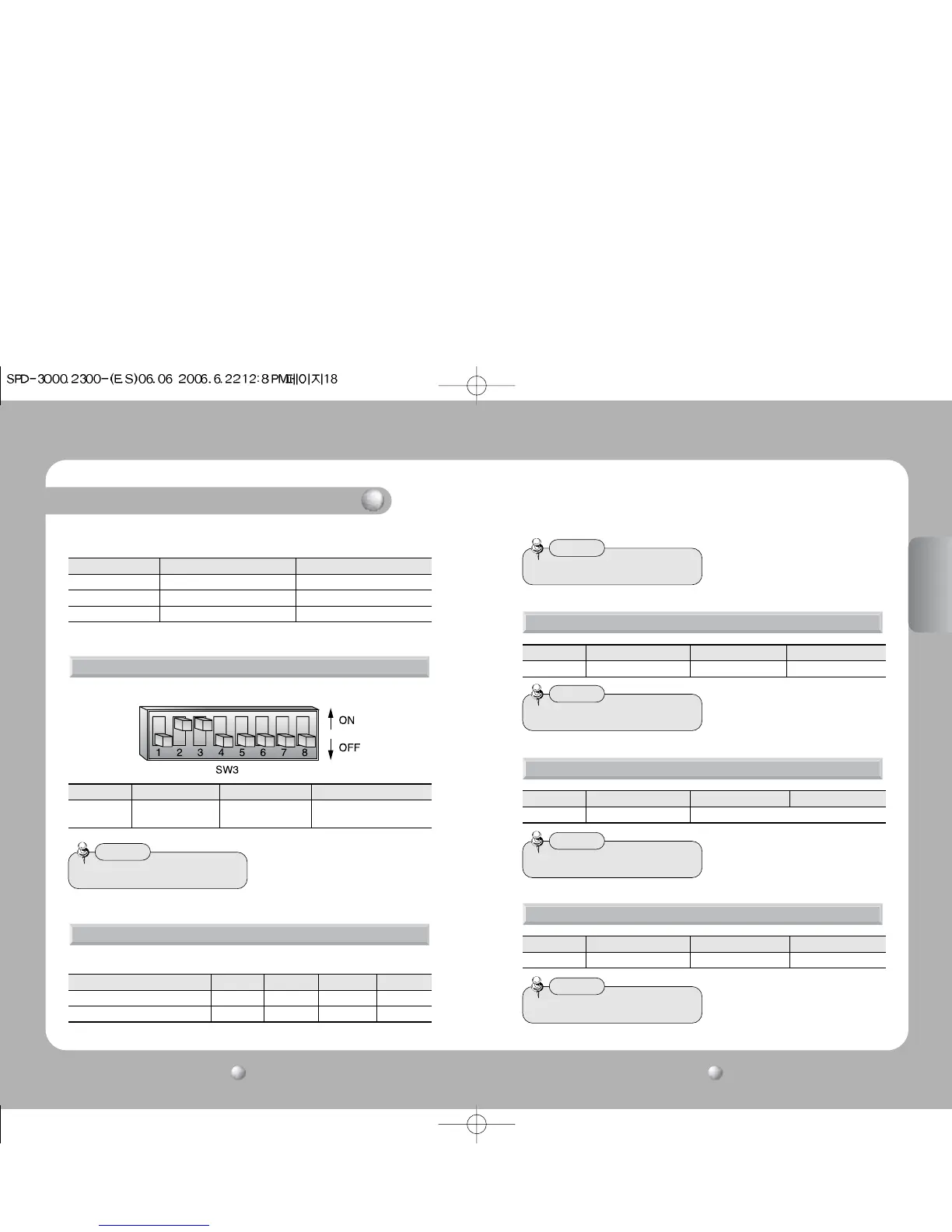

Part Names and Functions
Setting Transmission Mode (Camera Holder)
Setting Communication Method (Camera Holder)
Setting for Factory Adjustment (Camera Holder)
PC Communication Setting (Camera Holder): For reservation
Set the termination using the ON/OFF of 2, 3, 4, 5 of the Dip Switch 3.
Setting RS-485/RS-422A Termination (Camera Holder)
• Factory Setting: OFF
Notes
• Factory Settings: Only #2 and #3 are ON.
Notes
• Factory Setting: OFF
Notes
•
Factory Setting: OFF
Notes
• Factory Setting: OFF
Notes
