SPEED DOME CAMERASPEED DOME CAMERA User’s ManualUser’s Manual
23
ENGLISH
22
ENGLISH
Adapter AC24V, Peak 2.5A)
User
s Manual
Camera Holder
Terminal Block for Alarm
Connection (12Pin)
Terminal Block for Controller
Connection (7Pin)
3 Screws for Fastening Camera Holder
1 Screw for Fastening Cable
The following products are provided separately.
Item Model Description
On-Ceiling Mount STB-330PC Mounted on the ceiling surface
Camera Controller SCC-16 Pan/Tilt/Zoom/Focus control, OSD, Setting various functions
Camera Controller SCC-3000/3100 Pan/Tilt/Zoom/Focus control, OSD, Setting various functions
Indoor Housing STH-330PI Housing for indoor installation
Indoor Insertion Housing STH-330PE Installation by inserting the camera into the indoor ceiling
Outdoor Housing STH-330PO Output DC 12V (including heater and fan)
Wall Type Mount STB-270PW Attachment to the wall
Ceiling Type Mount STB-496PP Attachment to the ceiling
To install and use the SPD-3000/2300, the following cables should be used.
• Power Adapter Cable
The cable connected to the power input terminal of SPD-3000/2300 is shown
below with a rated voltage of AC24V 2.5A.
• Video Cable
The cable connected to the video output terminal and to the monitor of SPD-
3000/2300 is the BNC cable shown below.
• Communications Cable
The cable connected to the controller of SPD-3000/2300 for RS-485/422 communication
is shown below.
Safety wire

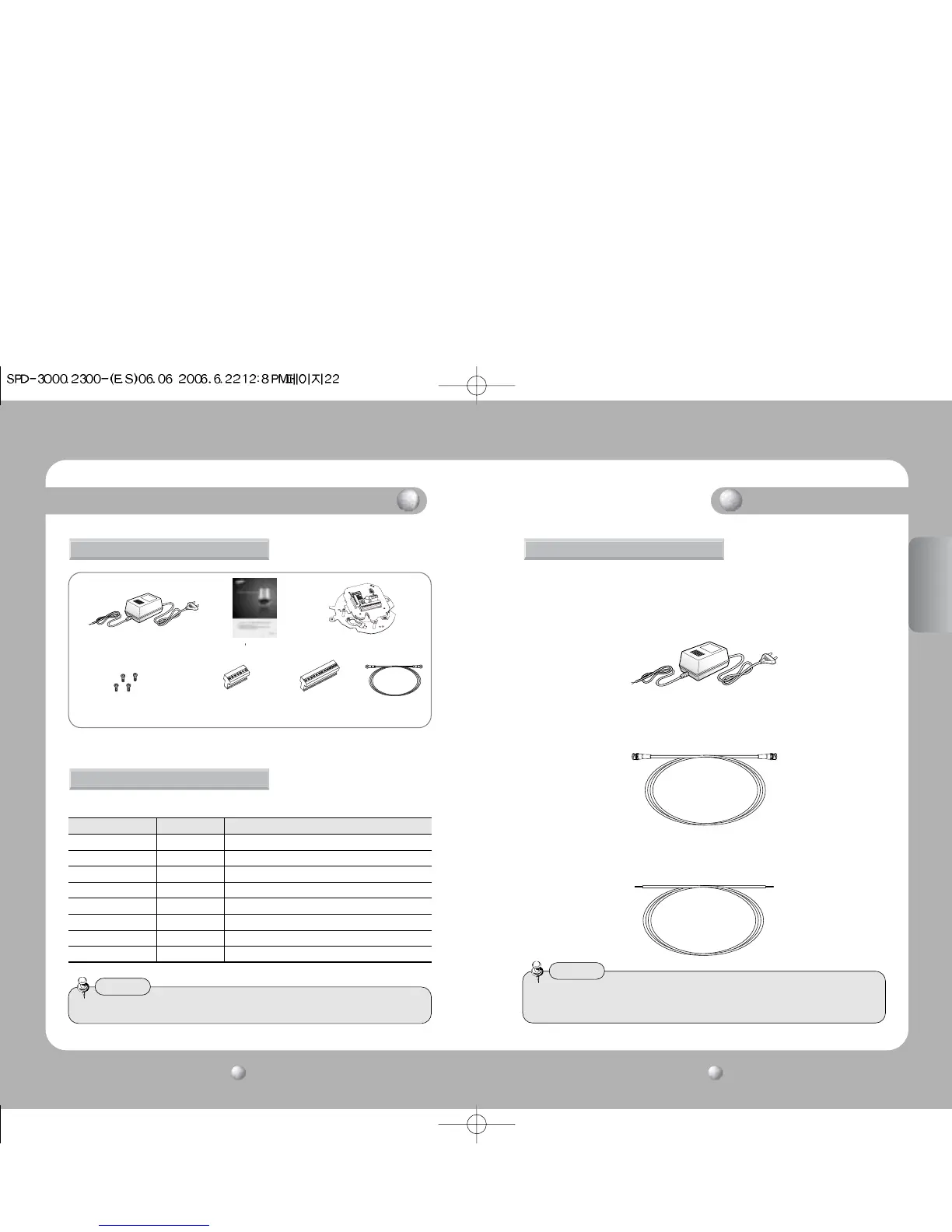

Components and Accessories
Accessories
Preparation for Cable
Products Sold Separately
• See pages 25 and 26 for product images.
Notes
• Video cable and RS-485/422 communication cable are not provided in this
product’s package.
Notes
Installation
To Next Page
